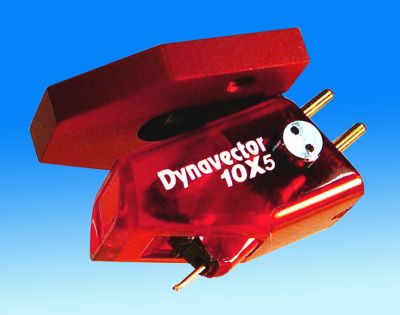

Dynavector DV-10X5 High Output Cartridge
Go Back
The Dynavector 10X series High Output Moving Coil cartridge debuted in 1978 winning the prestigious Design and Engineering Award at the Chicago CES in both 1978 and 1981. The 10X series cartridges are also widely accepted as the benchmark in High Output moving coil cartridge at this price point and beyond.
SPECIFICATIONS
- Type: High output moving coil cartridge with flux damper and softened magnetism
- Output Voltage: 2.5mV (at 1KHz, 5cm/sec.)
- Channel Separation: 25 dB (at 1KHz)
- Channel balance: 1.0 dB (at 1KHz)
- Frequency response: 20 - 20,000Hz (± 2dB)
- Compliance: 12 x 10-6 cm/dyn
- Tracking force: 1.8 - 2.2 grams
- DC resistance: R=150 ohms
- Recommended load impedance: >1k ohms
- Cantilever: 6mm length aluminium pipe
- Stylus: Elliptical
- Weight: 6.6 grams
