The Rega Mira 3 Amplifier is a high performance audio amplifier using the Improved “type 3” Rega Alpha-Encoder control system comprising of high quality loss-less relays, plus a digitally controlled analog switched resistor network volume control. The Mira 3 is housed in the Rega custom-built extruded aluminium case incorporating a high thermal efficiency heat sink. Rega has kept the same level of performance and synergy between stages as in the original Mira 2000 amplifier with a better level of functionality & controllability in the volume control user interface.

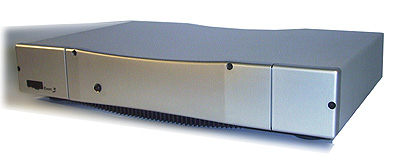

The Exon 3 Amplifier has a fully protected output stage with DC and electronic thermal protection and supply monitor for both transformers. High performance Evox polypropylene capacitors have been used in the signal path. The power supply uses two generously rated toroidal transformers with high-grade core material, combined with 37,600mF of parallel connected smoothing capacitors, providing more than enough current to drive the hardest of loads. All input and driver stages are fed from a fully regulated supply providing a stabilised voltage, ensuring the highest level of sonic purity.
SPECIFICATIONS
- 125w per channel @ 8W.
- 200w per channel @ 4W.
- Symmetrical Circuit.
- Regulated power supply.
- Rega custom built extruded aluminium case.
- High Thermal efficiency heat sink.
- Dual Toroidal transformer power supply.
- Four 200w Sanken output transistor
- Common base driver stage.
- Can drive the most awkward of speaker systems.
- System compatible with a gain of 28dB.
- Full flexibility within the range.
- BI-amplifier upgrade for the Mira amplifier.
- Forms a pre-power system with the Cursa pre-amplifier.
- Twin parallel input sockets.
