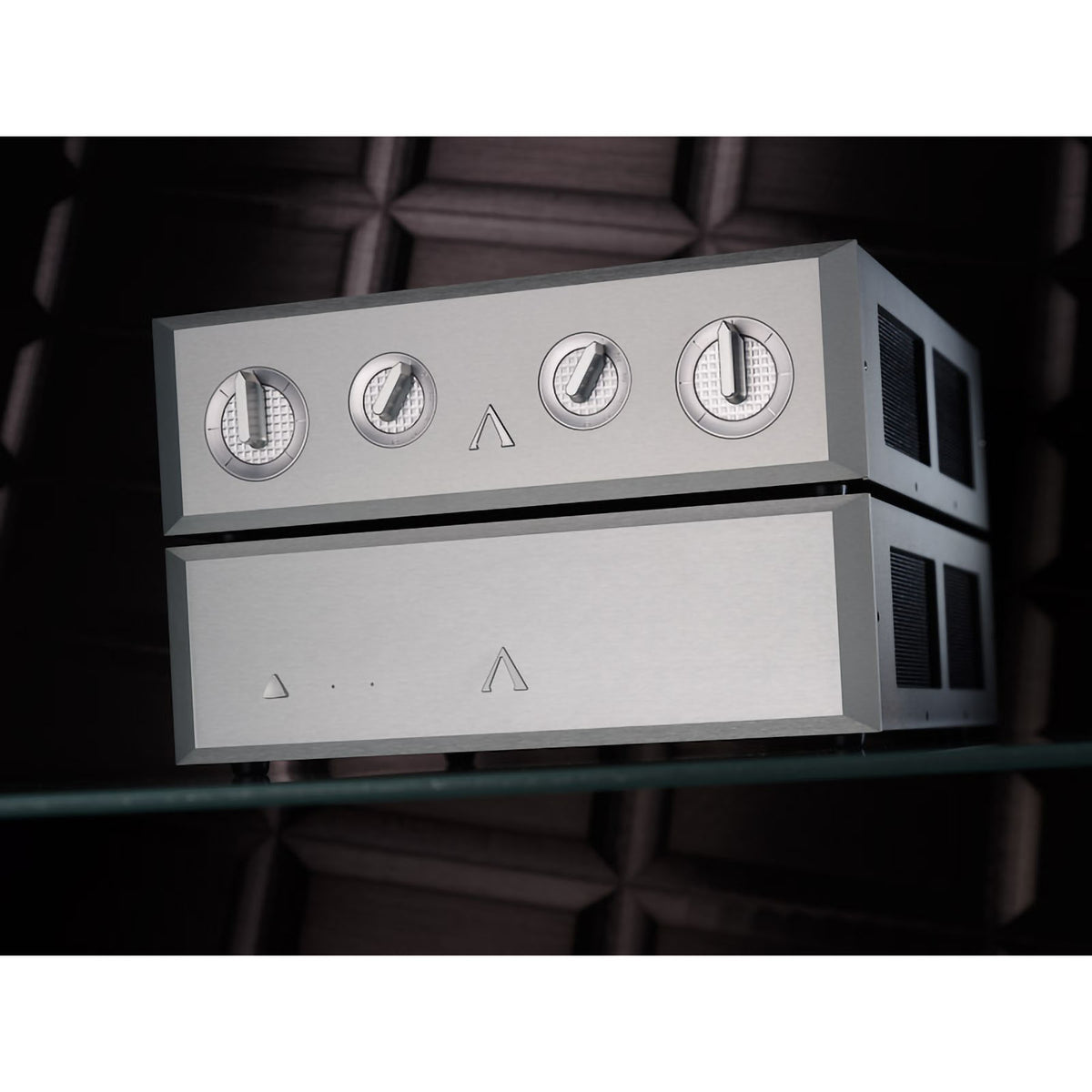

Aesthetix Jupiter Series Callisto Two Chassis Eclipse Linestage
Callisto is an all-tube linestage suitable for the most demanding audio systems and listeners. Fully balanced circuitry from input to output, including internal balancing of single-ended inputs, results in common mode signal rejection and cleaner sound. The innovative discrete switched resistor volume control maximizes resolution at any listening level. A separate power supply chassis removes any possibility of transformer noise corrupting the delicate audio circuitry. Peter Moncrief Stealth Capacitors are used in the Eclipse Edition for unparalleled sound quality.
- Fully balanced differential circuitry with ability to internally balance a single-ended input signal.
- Innovative and unique mechanically switched discrete resistor volume control with 46 positions using Roederstein resistors.
- Separate volume controls and input selectors for each channel.

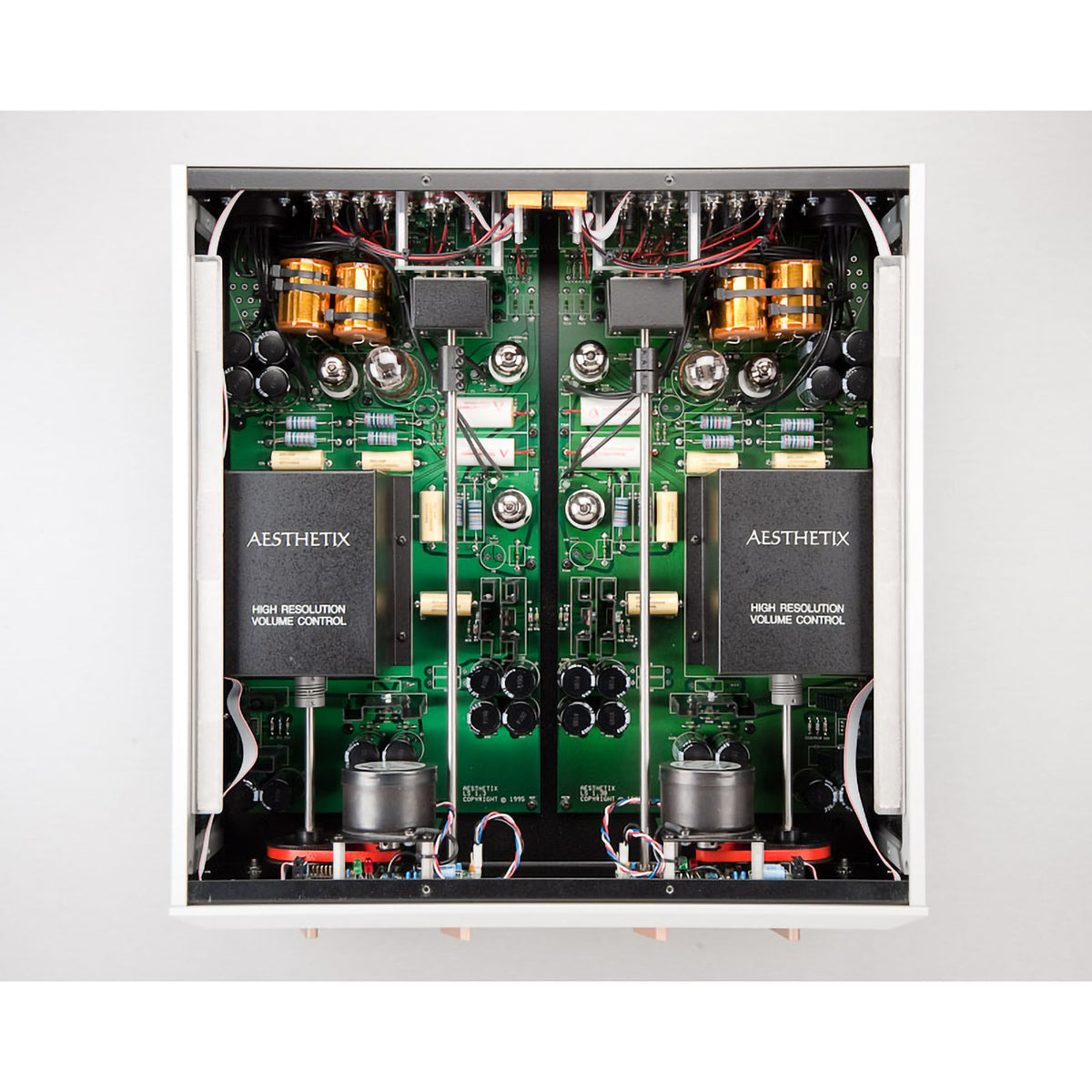

- All tube amplification and output (8 tubes total).
- Separate vacuum tube regulated power supply utilizing 8 tubes.

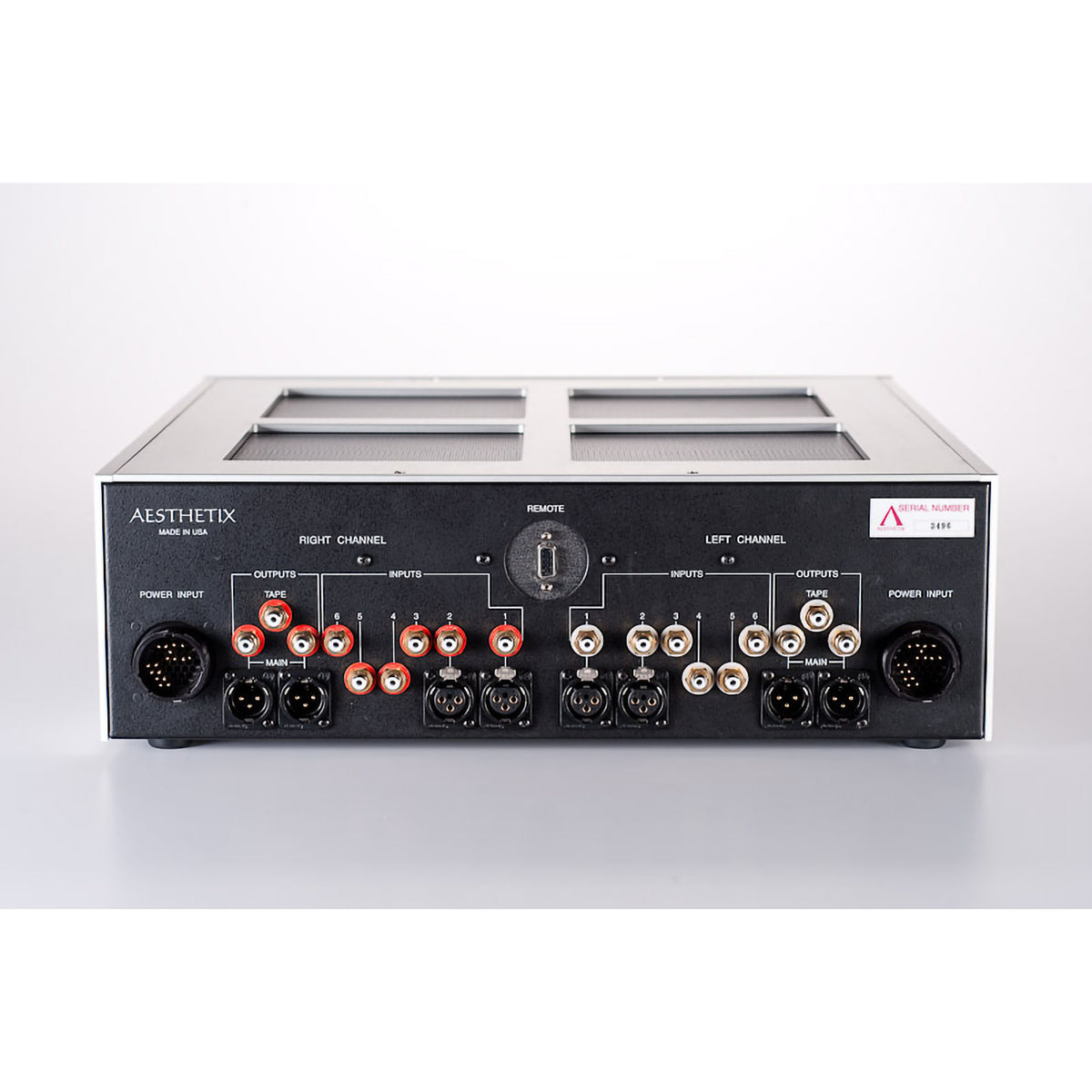

- Two sets of XLR and two sets of RCA outputs per channel.
- Six inputs: First two single-ended (rca) or balanced (XLR); remaining four single-ended (rca) only.
Product Specifications
Inputs
Six inputs
First two single-ended (RCA) or balanced (XLR); remaining four single-ended (RCA) only
Outputs
2 RCA (SE) and XLR (balanced), 1 tape RCA
Line Level Gain
23 dB single-ended (SE), in/out, and 29 dB balanced/out
Volume Control
Switched resistor network volume control with 46 steps
Front Panel Controls
Left and right input select, left and right volume
Remote Controls (Optional)
Volume, mute, balance, phase (option)
Frequency Response
±0.25 dB, 20 Hz - 20 kHz
Signal to Noise
Measured at 70 dB minimum, A-weighted (ref 1 mV input, 75 dB gain setting)
Line Input Impedance
100K ohms SE, 200K ohms balanced
Output Impedance
1K ohms SE, 600 ohms balanced
Recommended Amplifier Load
10K ohms or greater (SE), 20K ohms or greater (Balanced)
Tubes, Each Channel
(Line section) V1 (6922), V2 (12AX7), V3 (6922), V4 (6SN7)
Power Consumption
300 watts
Physical Dimensions
Main Unit, MkII or Signature
5 5/8" high, 19" wide, 18" deep including jacks
Main Unit, Eclipse
5 1/2" high, 17 1/2" wide, 18" deep including jacks
Power Supply, MkII or Signature
5 5/8" high, 19" wide, 18" deep including jacks
Power Supply, Eclipse
5 5/8" high, 17 1/2" wide, 18 1/4" deep including jacks
Shipping Weights
Main Unit, MkII or Signature
42 lbs
Main Unit, Eclipse
47 lbs
Power Supply, MkII or Signature
50 lbs
Power Supply, Eclipse
55 lbs
Specifications subject to improvement or change without notice.
