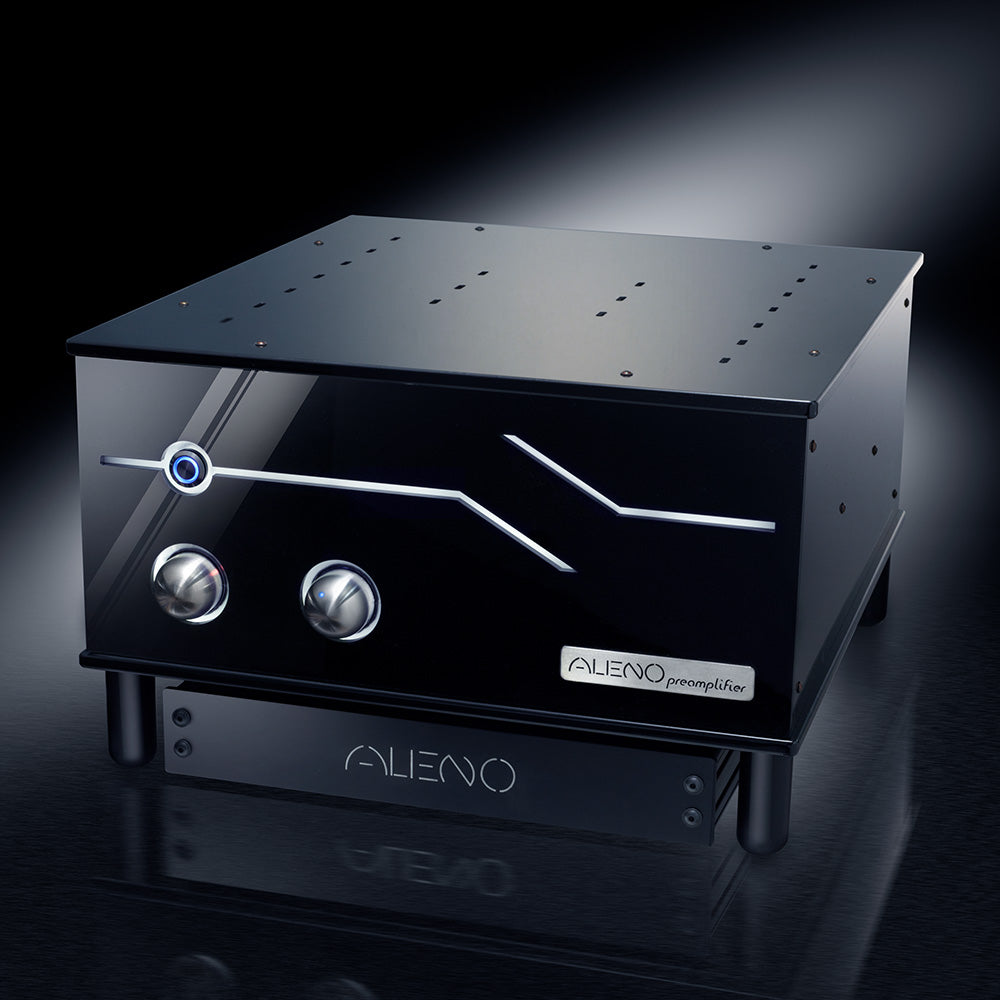

Alieno Line Stage Preamplifier MKII (ECC82-6H30), twin chassis with lithium battery power supply
After decades of creating exquisite audio equipment and pushing the boundaries of audio design, Fulvio Chiappetta started the Alieno line of ultra high-end amplifiers. The 6H30 line stage preamplifier is beyond no compromise. It features innovations and unique design applications that can only be described as extreme engineering. Utilising ECC82-6H30 tubes, it is a twin chassis design with the signal circuitry in one chassis and the power supply in another, connected by a thick umbilical cable. The power supply operates new generation lithium batteries, providing perfect, discreet noise-free polarisation of the individual preamplifier stages.

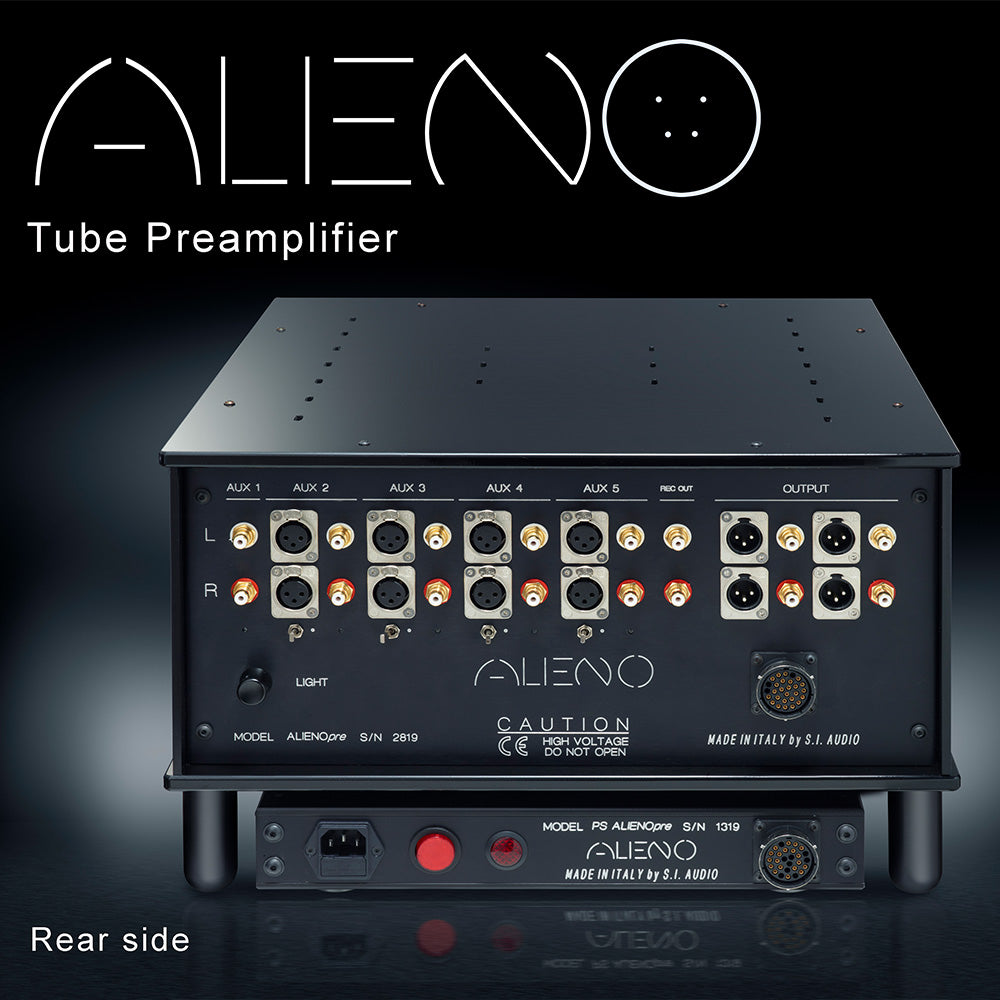

It features two sets of balanced and single-ended outputs. The inputs have variable sensitivity and each input & output is individually and independently grounded! This technology offers completely distortion-free signal handling, rendering the common use of feedback obsolete. Aside from the zero-feedback topology, a minimal-crystal clear distortion-free signal path exists from the inputs to the outputs. Much engineering effort and cost has gone into creating this signal path and as a result, this preamplifier’s transparency is astronomical.
Sonically, the Alieno 6H30 preamplifier is a revelation. If you have an opportunity to experience its capabilities and virtues, it will make even the most reputed and expensive preamplifiers in the world sound coloured. Seasoned audiophiles often lament that the world’s best performing equipment is not the domain of the well-known high-end brands with the serious marketing budgets. Ultimate level equipment is usually the realm of the small, low volume handmade boutique brands which are masterpiece achievements by genius designers and left-field thinkers. Alieno is a great example of this observation and has become a favourite of the connoisseurs and cognoscenti.
Electrical Grounding
The electrical grounding system within this preamplifier is unique and engineered to a level without precedence. All the grounds of each input/output are independent and separate, even within the same channel between the left and right signal. This is a very complex solution to manufacture, however it guarantees the very best possible signal-to-noise ratio, which means a deeper and more silent background of the sound image (noise floor) and the sound appears to rise from pure silence and be ‘painted’ on a ‘deep black canvas’. The sound is palpably sharper, more detailed and three-dimensional.
This strategy is implemented with high quality precision relays for each channel. Each time an input is switched, the input is muted for about 5 seconds before enabling the new selected input. During this slight delay in switching between one input and another, a further advantage of this technology is the fact that the preamplifier circuits ‘see’ only the selected input, because all the other inputs (even if connected with cables to many sources) are in fact electrically ‘off’, not having their ground reference.
For this reason, none of the unselected inputs can transfer any type of electrical disturbances to the Alieno Preamplifier, which often originate from the grounds (generally all in common) and enter the circuit in the form of hum (typical ground loops). Furthermore, the condition of electrically ‘seeing’ only the selected input allows the Alieno Preamplifier to immediately identify any source that has any unwanted internal disturbances or interferences.
In the Alieno Preamplifier, the unselected inputs are NOT short-circuited (as is the case with many preamplifier designs that suffer from crosstalk) because that condition could be harmful to many of the latest generation digital sources which supply output electrical signals that do not tolerate an encounter with a short circuit when entering a preamplifier. There is also the option to have a dedicated input for pro sources with a floating balanced connection.
Volume Control
The implementation of the volume control is absolutely critical in terms of the sound quality of a preamplifier and by inference, the whole system. Typically, volume controls are made by a variable resistor which controls the signal in transit. The most adopted techniques in high-end audio are either the potentiometer (a variable resistor based on a sliding contact), or a series of fixed value resistors. The Alieno Preamplifier implements a unique technology which encompasses a step-free behaviour (like a potentiometer), coupled with the superior sonic transparency of fixed value resistors. To the user, it feels like a traditional volume control.
Power Supply & Virtual Battery Mode

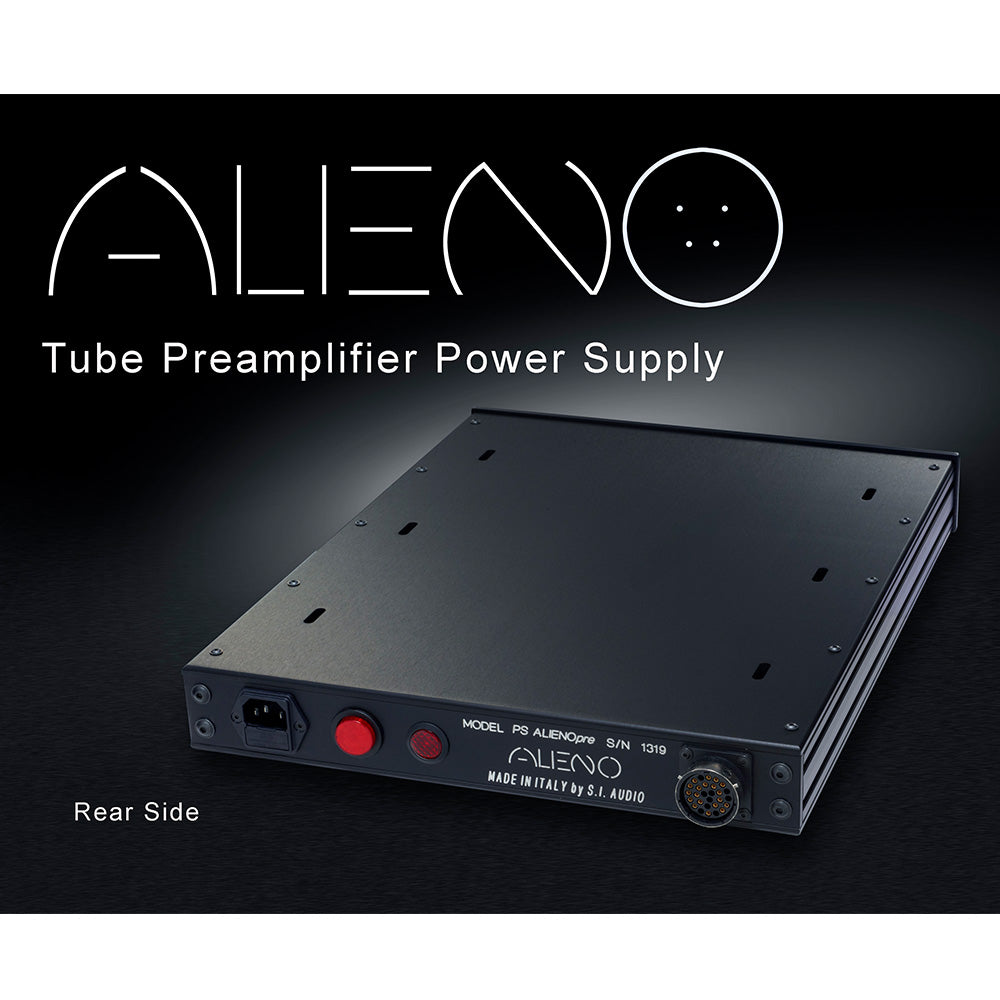

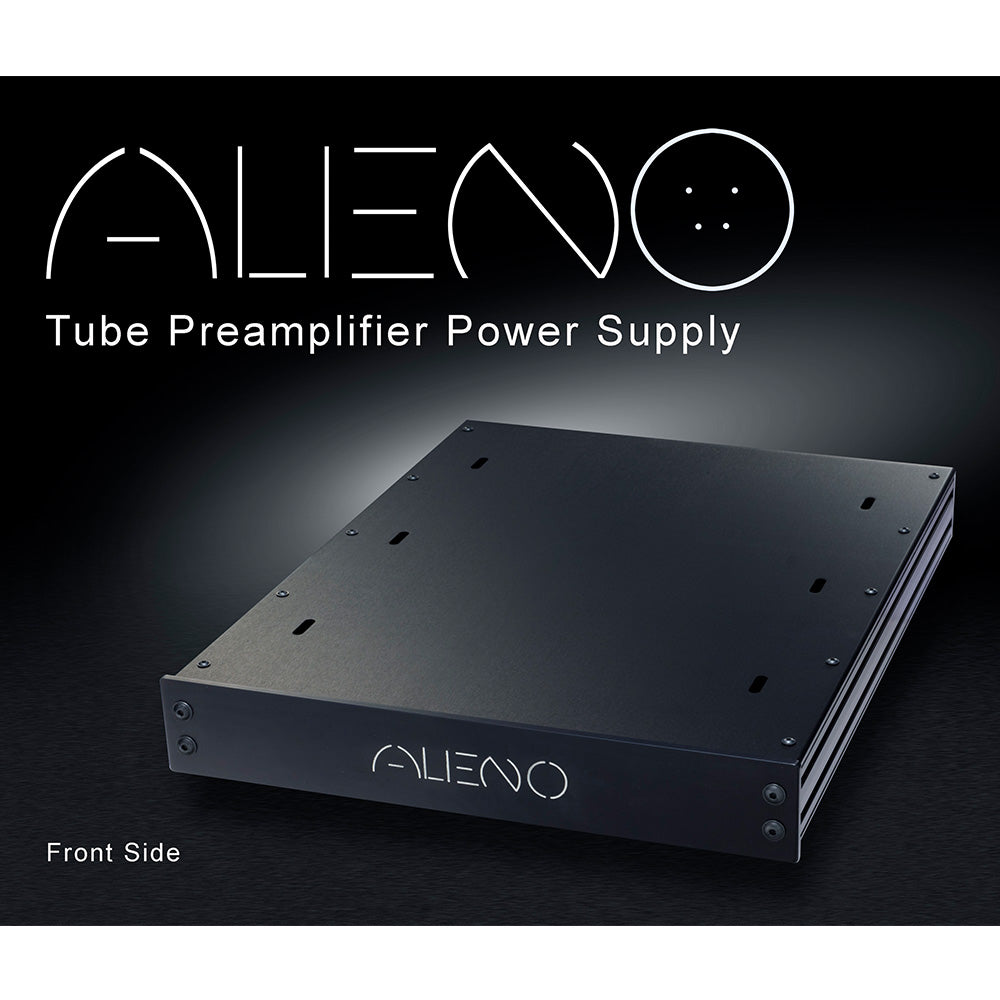

Alieno have implemented an exclusive power supply technology that makes a significant contribution to the sound of the preamplifier. Using a discrete dual mono topology, the Alieno Preamplifier employs four independent power supply units, not including the power supplies exclusively dedicated to cathodes and services. This ensures a fully shielded independent power supply to each the amplification stages. Moreover, each PSU acts in a ‘virtual battery mode’ thanks to the use of special capacitors whose value and topology have never been used before in amplifier applications.
This technology allows the Alieno Preamplifier to work as if it was battery powered and therefore disconnected from the mains power. This de-couples the preamplifier from any electrical harmonics, disturbances and irregularities typically found in domestic mains power supply. A series of high quality heavy capacitors takes care of this task, but to get this ‘virtual power supply’ fully operational, the capacitors need a few minutes to reach their complete polarisation and electrical potential, so it is advisable to turn on an ALIENO Preamplifier and give it at least twenty minutes of low volume playing before embarking on ‘in-depth’ listening, regardless of the temperature of the listening room. Of course, you can listen to it right away, but after that warm-up period the ALIENO Preamplifier is in its best thermal/electrical condition.
2 Levels of Attenuation For The Inputs
Each input has a selector that allows you to set two attenuation levels for the input signal: – 8 dB and – 16 dB. The components involved for applying these two levels of attenuation are absolutely transparent to the sound, therefore, dynamics, transparency and timbre of the input signal are absolutely preserved and intact as in the zero attenuation position. This solution has been implemented in the ALIENO Preamplifier to cater for sources with diversified electrical output levels. For example, some of the latest generation DACs or digital players have output signals over 5V RMS. By having the option of two attenuation levels, the ALIENO Preamplifier allows the user to maintain a more homogeneous volume position, even when the connected sources have important differences between their electrical output levels.
The 6H30 Tube
One of the two pairs of tubes used in the ALIENO Preamplifier is the 6H30 (the other pair is the ECC82). This tube is acclaimed in the audio design field for the purity of its sound. After around a 500 hour break in period, the 6H30 rewards the listener with natural tonality and wonderful realism. In the ALIENO Preamplifier, it is only used at approx. 30% of its electrical limit so it is not stressed and will deliver thousands of hours of reliable service.
A Monumental Achievement
The Alieno Preamplifier is a no-holes-barred attempt at making the world’s best preamplifier. It is uncompromising in its design and incorporates multiple exclusive technologies and topologies to create a once-a-generation heirloom piece. The extensive grounding system and the innovative power supply system alone accounts for a large portion of its cost. Putting aside it’s unique design and no-expense spared build quality, it is simply one of the best sounding preamplifiers ever created. It is sonically transparent to the source and facilitates nothing but the music. The preamp is the heart and soul of the system and in this case, it has taken one man 30 years to develop and then hand-build a rare piece of audiophile utopia. There is evidence of engineering genius all over the Alieno and once you experience it, you forget everything you thought you knew. Heavenly.
