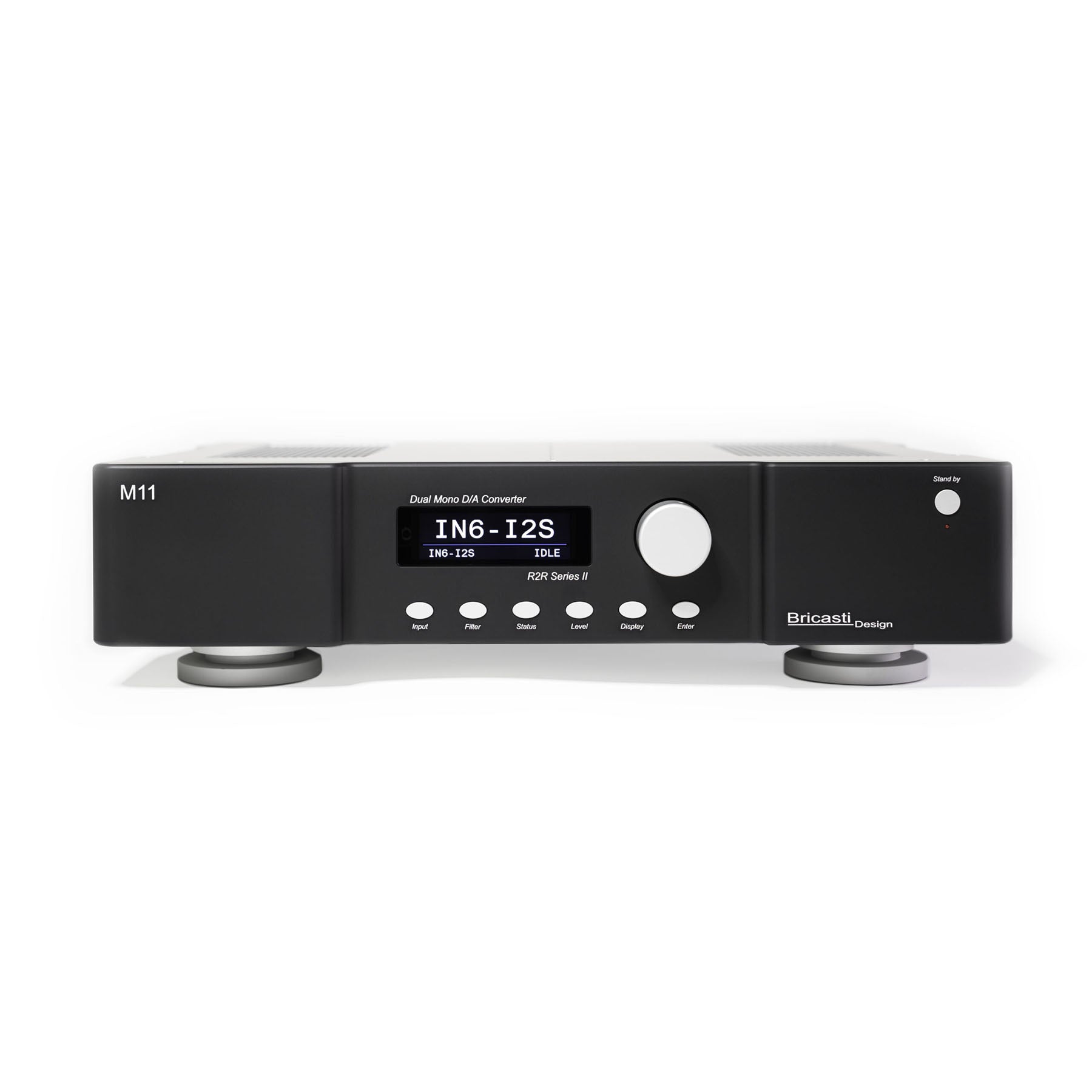

Bricasti M11 Classic Dual Mono Ladder DAC
The M11 R2R is the concentration of the Ladder D/A technology found in the flagship Bricasti Design M21. The M11 features the fit, finish and sonic qualities of our classic analog design, classic chassis and MDx processor.
Elegant and refined
The M11 utilizes resistor ladder D/A technology coupled with the latest proprietary MDx digital platform, clocking algorithms and filter technology for exceptional performance without the use of SRC's so signals stay native and true. The digital section is coupled with a pristine analog path with the goal to deliver the truest possibly representation of tonality, precision and dimension.
Superb Analog

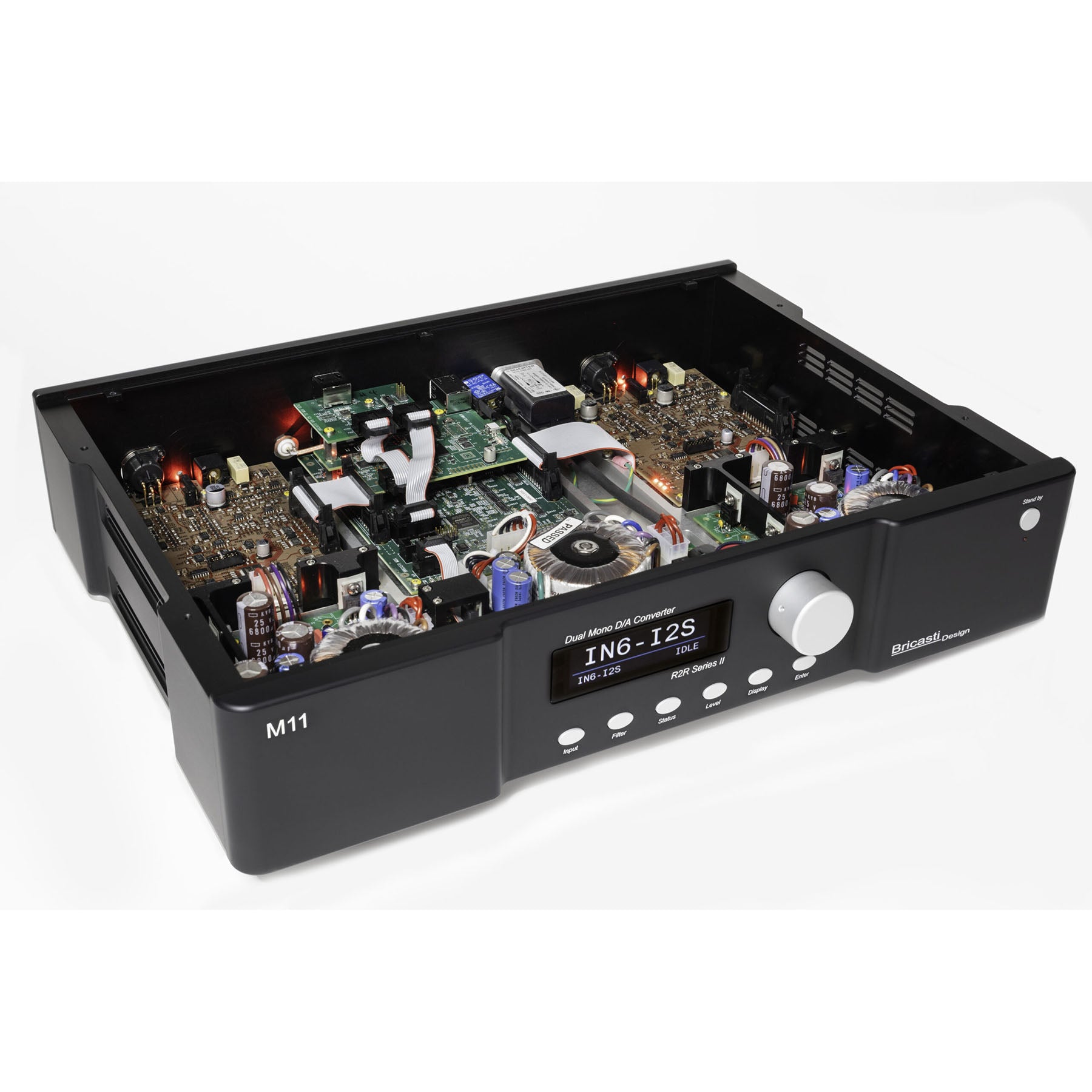

A high-performance linear power architecture allows for a clean signal with extremely low noise and expansive headroom. Featuring Point-to-point wiring and stillpoint isolation integrated directly into the chassis, you will experience new depth, detail and dimensionality in your music. Improved spacial cues and separation create a truly immersive experience.
Network Player
The optional Network player offers one of the most sonically advantages avenues for audio playback created in the last decade, with pristine data transmission over long distances, without loss of signal or degradation from cable runs. This means your server can be located anywhere on the network rather than in your listening space, creating a clutter-free listening environment and ground-breaking performance.

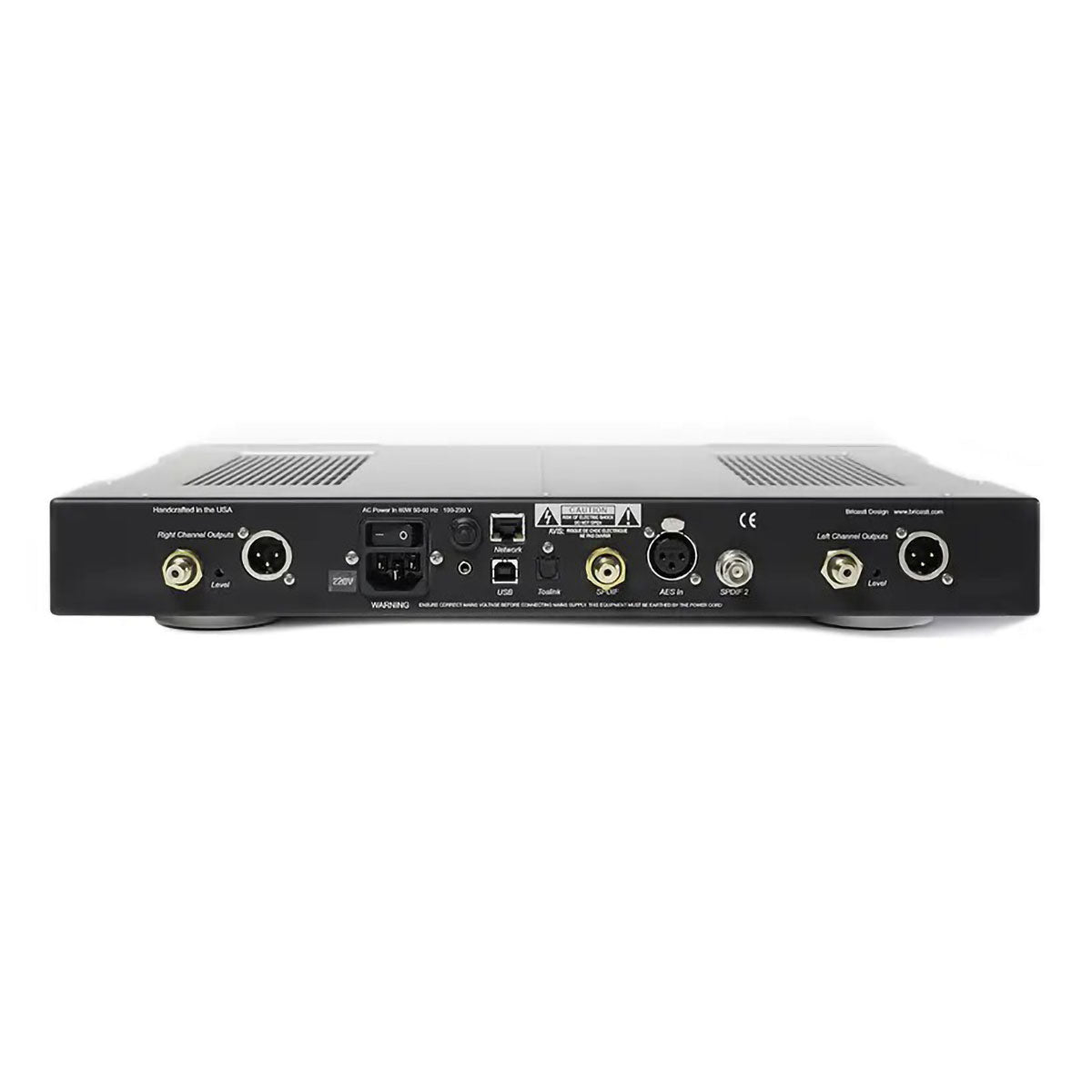

Masterfully connected
The M11 digital input selection is well appointed to fit most any system. It also features a fully differential design which creates a less resistant output signal path, ideal when matched with fully differential M20 preamplifier and the Bricasti M28 and M25 amplifiers.
Handcrafted in the USA
All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.
Product Specifications
Digital Inputs & Sampling
Digital Inputs
XLR: AES/EBU 24-bit Single Wire; BNC: S/PDIF; RCA: S/PDIF; Optical: Toslink 44.1–96 kHz; USB 2
Sample Rates – AES, S/PDIF, AUX In
44.1 kHz to 192 kHz
Sample Rates – USB
44.1 kHz to 384 kHz; DSD64, DSD128, DSD256, Native or DoP
Sample Rates – Ethernet (Optional)
44.1 kHz to 384 kHz PCM; DSD64, DSD128, Native and DoP
Jitter
8 ps @ 48 kHz; 6 ps @ 96 kHz
Balanced Analog Outputs
Outputs
XLR balanced (Pin 2 hot)
Impedance
40 Ω
Output Level
Adjustable +8 dBm to +22 dBm, or fixed at +13.5 dBm
D/A Conversion
20-bit ladder type
Frequency Response @ 44.1 kHz
10 Hz–20 kHz, +0 dB / −0.2 dB
Dynamic Range
>120 dB, A-weighted
THD+N @ 1 kHz
0.0020% @ 0 dBFS
Unbalanced Analog Outputs
Outputs
RCA
Impedance
40 Ω
Output Level
+8 dBm (2 V RMS)
D/A Conversion
20-bit ladder type
Frequency Response @ 44.1 kHz
10 Hz–20 kHz, −0.2 dB
Dynamic Range
>120 dB, A-weighted
THD+N @ 1 kHz
0.0020% @ 0 dBFS
General Specifications
EMC
Complies with EN 55103-1, EN 55103-2, FCC Part 15 and Class B
RoHS
Complies with EU RoHS Directive 2002/95/EC
Safety
Certified to IEC 60065, EN 55103-2
Operating Temperature
32°F to 105°F (0°C to 40°C)
Storage Temperature
−22°F to 167°F (−30°C to 70°C)
Finish
Anodized aluminum, nickel plating with brass knobs and buttons
Dimensions
17 × 12 × 2 in
Weight
15 lbs
Shipping Weight
18 lbs
Shipping Dimensions
22 × 17 × 7 in
Mains Voltage
100, 120, 220, 240 VAC, 50–60 Hz, factory set
Trigger Out
TRS mini jack, tip ground, sleeve 5V
Power Consumption
28 W (6 W standby)
Warranty
2 years, parts and labor, non-transferable
