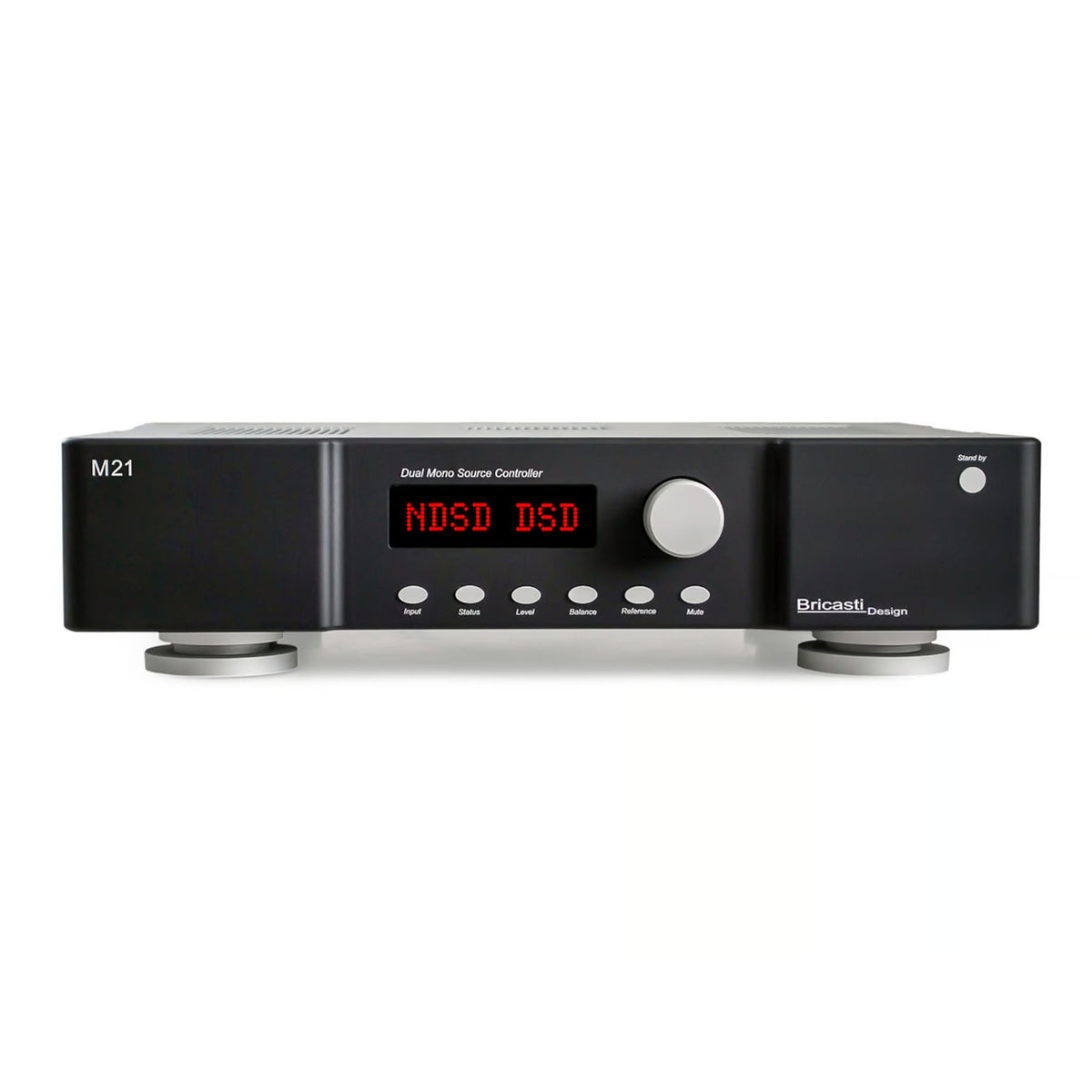

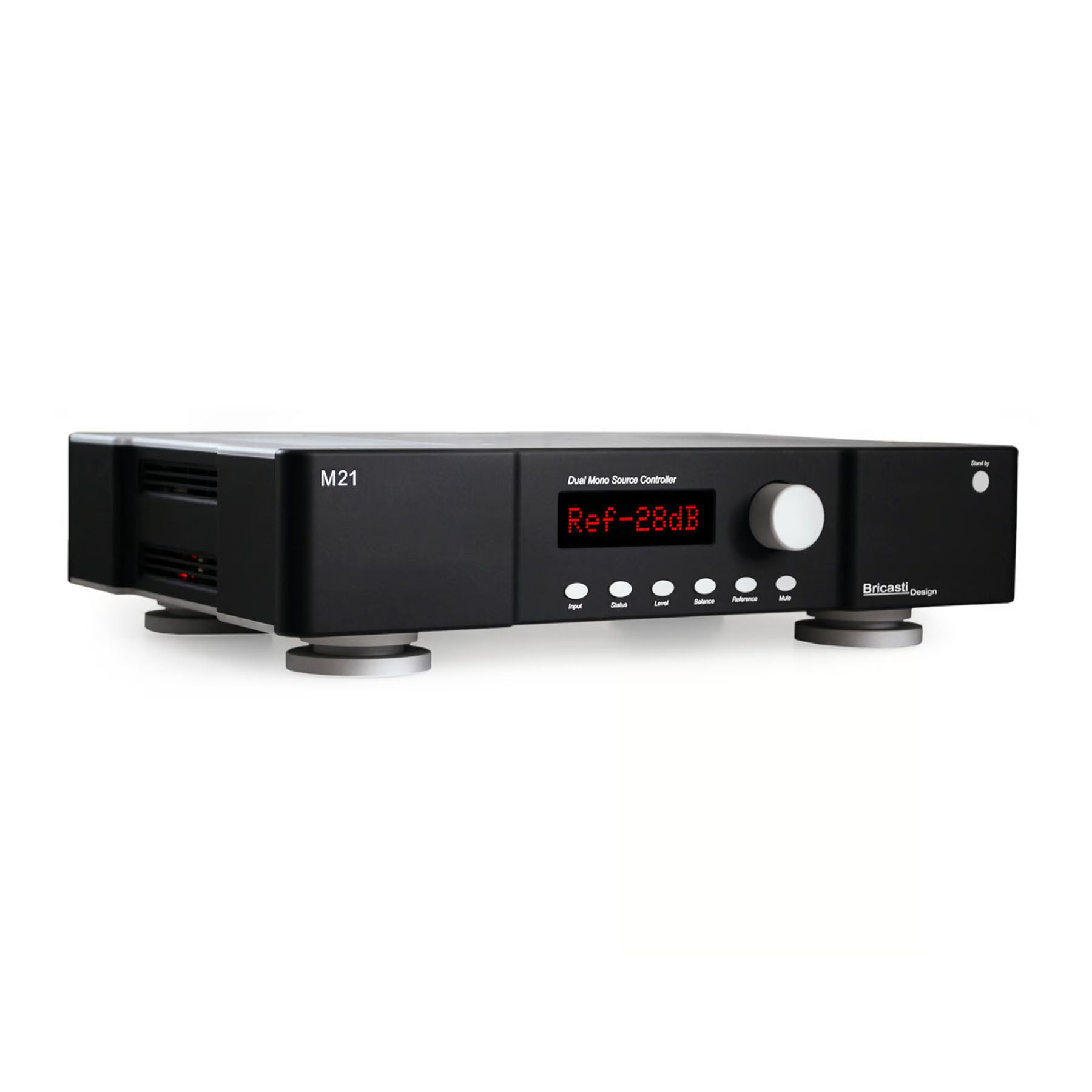

Bricasti M21 DAC Model 21 Dual Mono DAC

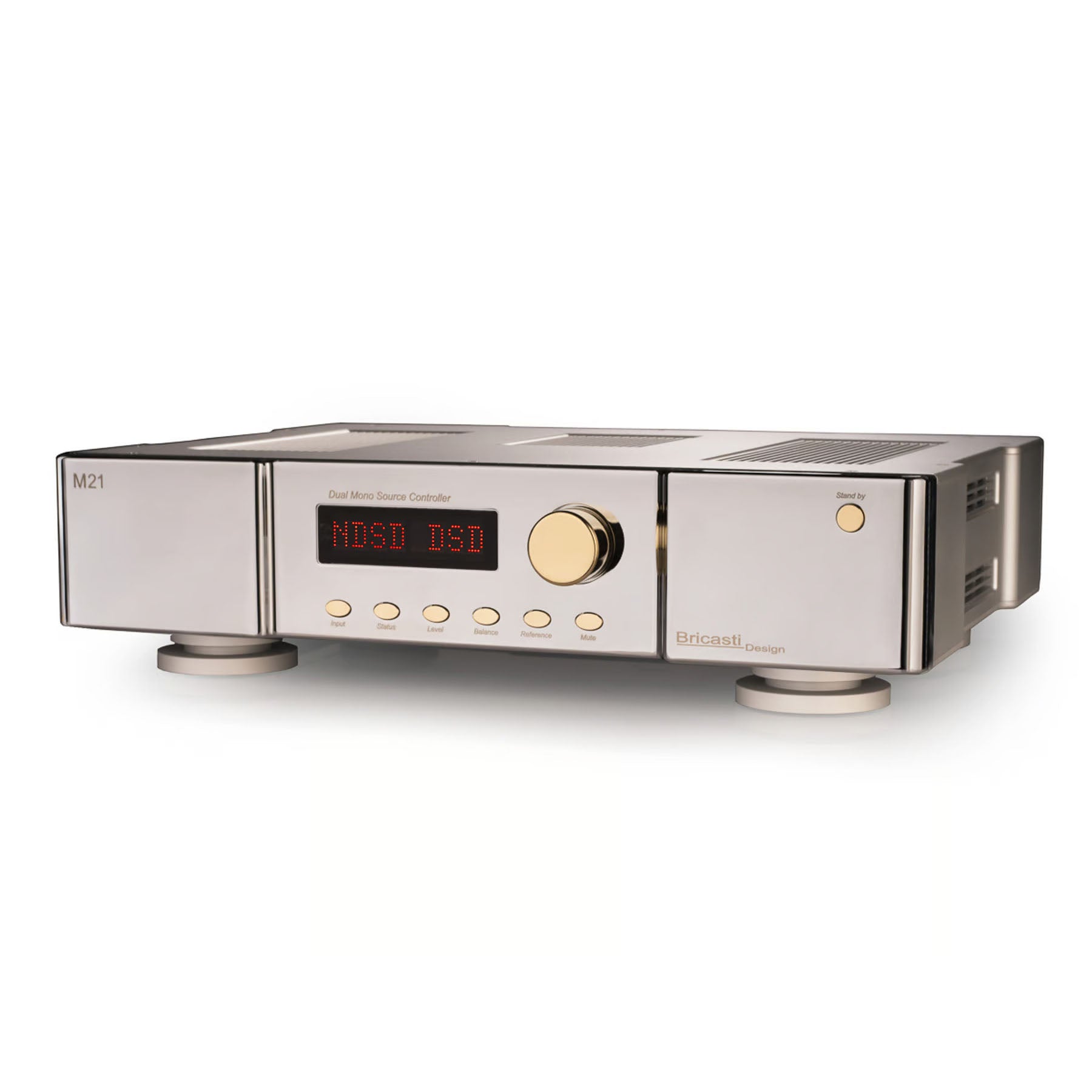

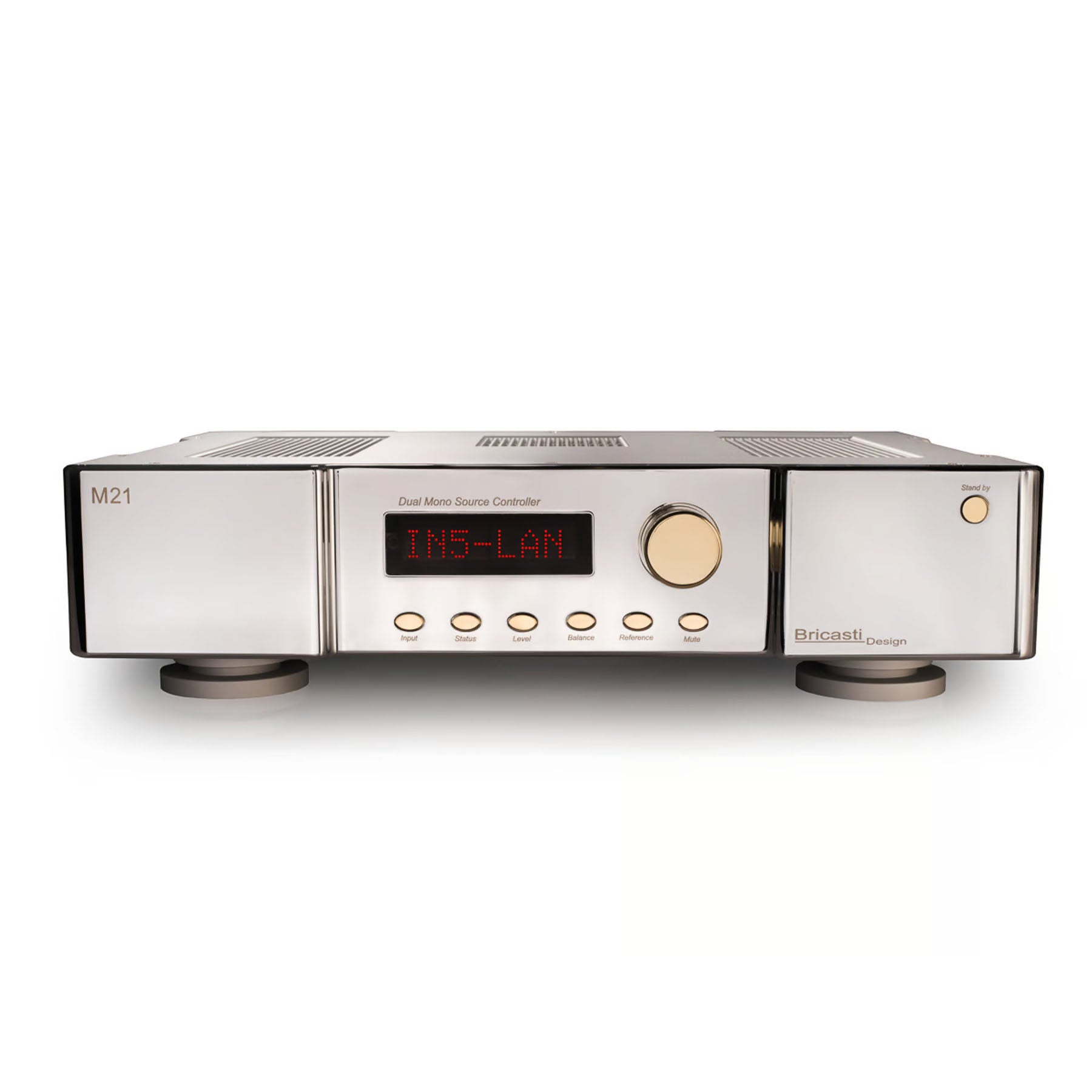

The M21 Platinum Series is the trifecta of digital to analog conversion. Three independent and user-selectable digital to analog signal paths are available: delta sigma and ladder dac for PCM conversion and for DSD playback, true direct DSD. All digital input types are supported, with direct output or hard-wire bypass of the analog attenuator.
The M21 Digital to analog converter is the continued evolution of both the M1 Special Edition and the M12 Dual Mono Source Controller.
D/A performance X3
With the M21's advanced architecture its now possible to select, evaluate and enjoy three independent digital to analog converter signal paths: 24 bit delta sigma, 20 bit ladder dac and true 1 bit DSD for DSD content. Engineering autonomous conversion paths creates a super-efficient platform for you to enjoy your music and explore the advantages of each. The M21 also incorporates the Bricasti Design high-performance MDx processor.
Network Streaming
The M21 connects seamlessly with your network offering one of the most advantages avenues for audio playback. Once detected by your network via wired ethernet, the M21 is recognized as a DNLA device and becomes a powerful media renderer offering pristine data transmission over long distances, without loss of signal or degradation. Now your server can be placed anywhere on the network and run remotely lending to a clutter-free listening environment.
Direct or Analog
The M21 utilizes precise analog gain control for its execution of direct DSD functionality and driving amplification. It features a true hard-wire bypass analog attenuator, setting this control to 0 db makes possible the use of the M21 direct to an external preamp as well. Flexibility is what the the M21 design is all about.
Masterfully connected
The M21 digital input selection is well appointed to fit most any system. It also features a fully differential design which creates a less resistant output signal path, ideal when matched with fully differential amplification like the Bricasti M28 and M15 amplifiers.
Handcrafted in the USA
All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.
Product Specifications

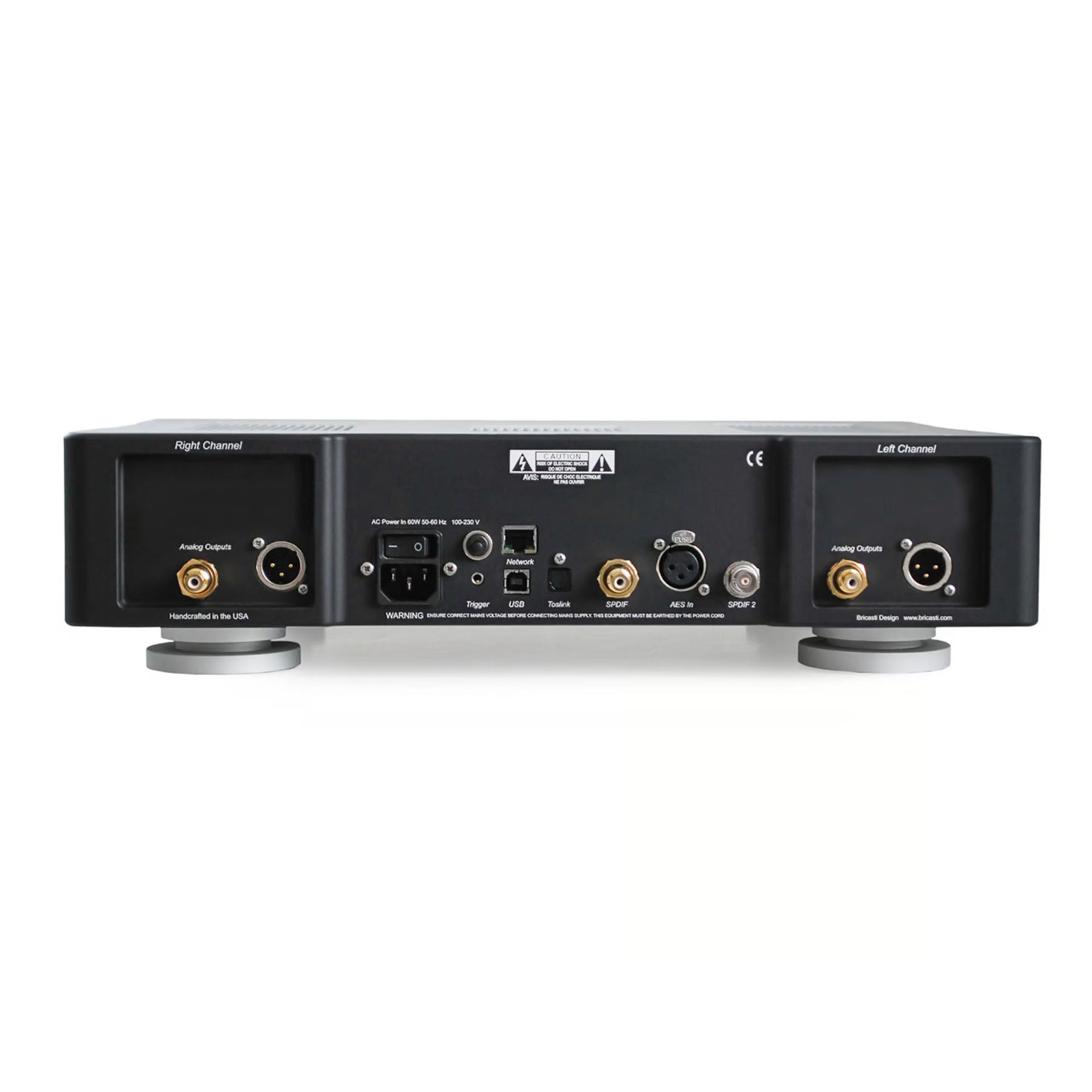

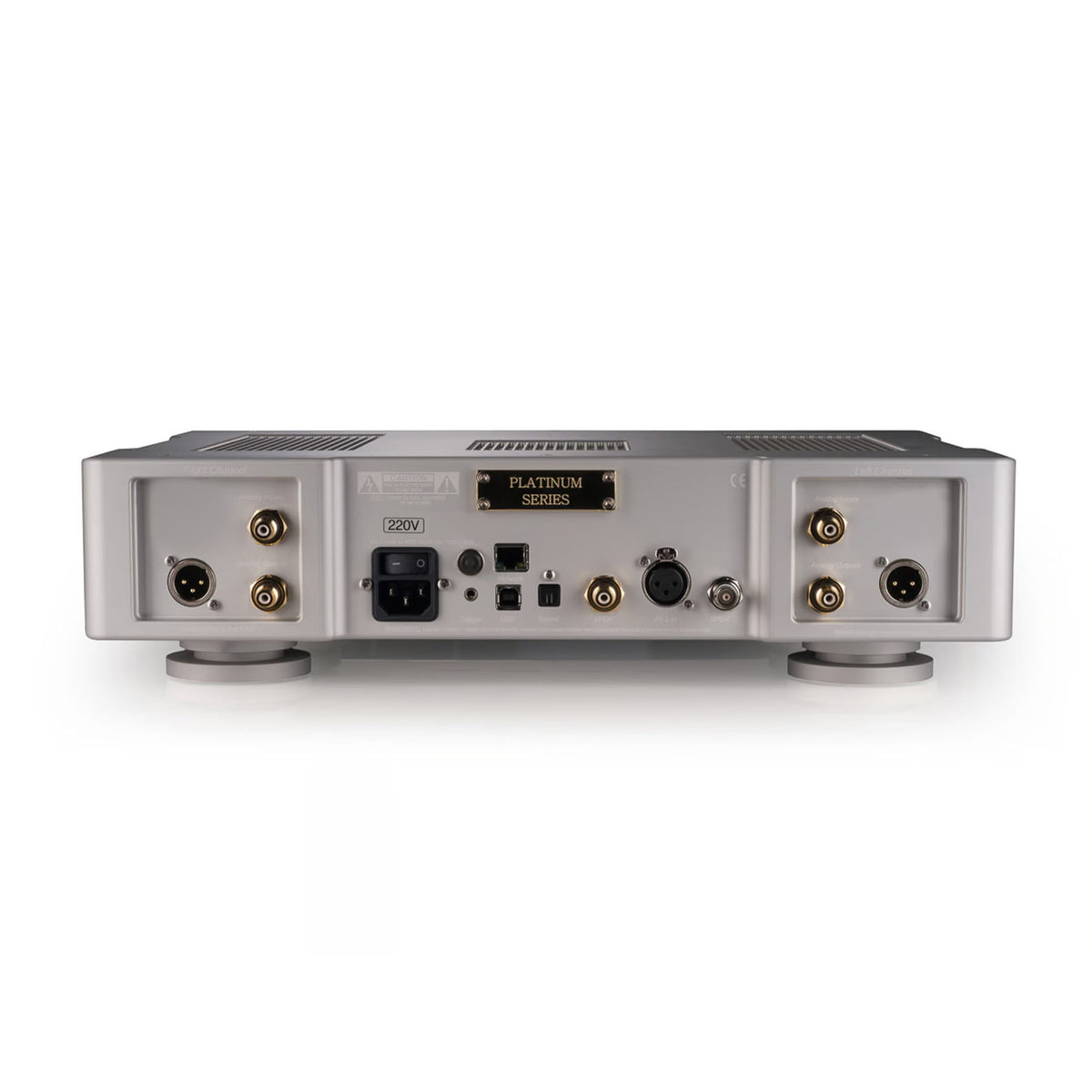

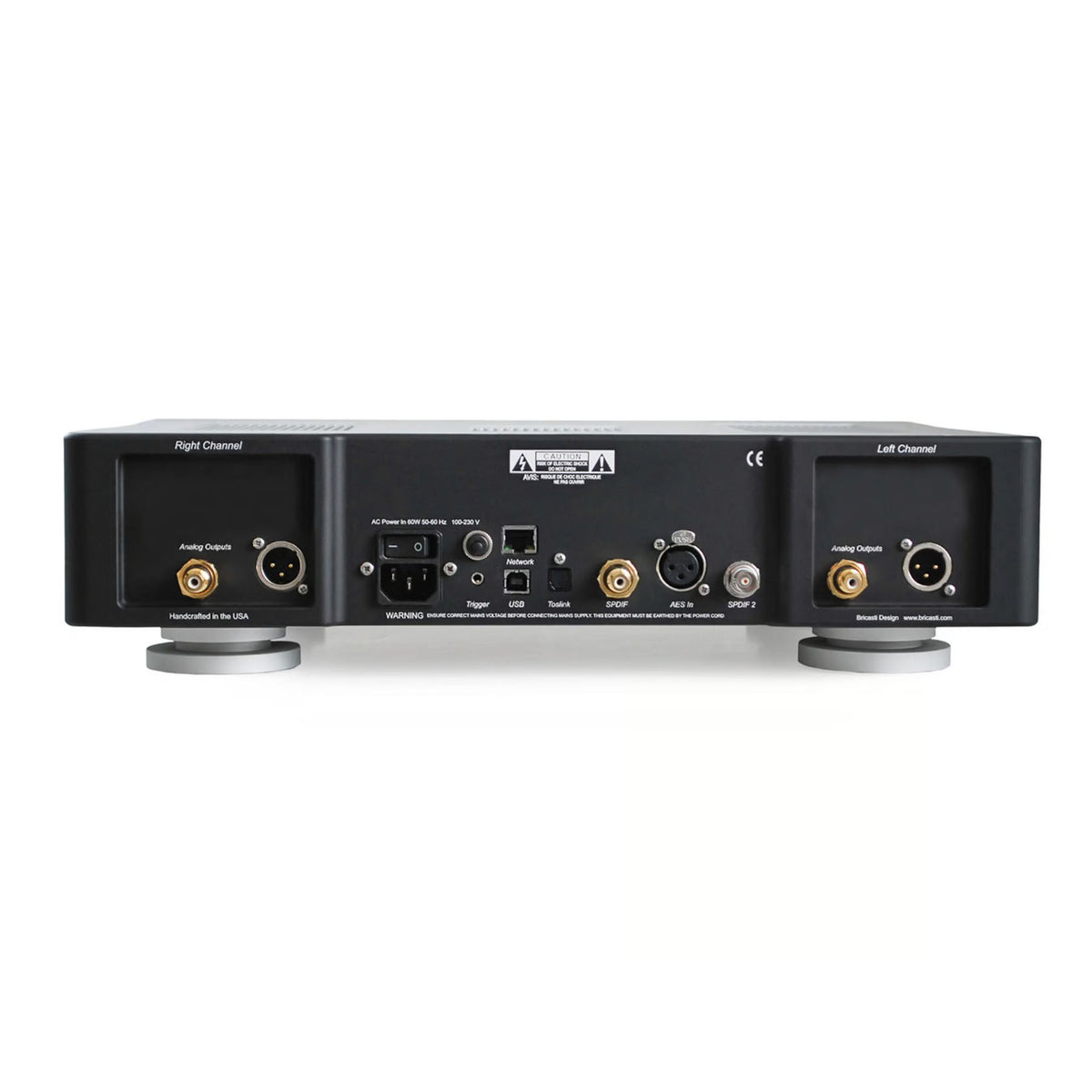

Digital Inputs
Digital Inputs
XLR: AES/EBU 24-bit Single Wire, BNC: S/PDIF, RCA: S/PDIF, Optical
Toslink 44.1–96 kHz, USB 2
Sample Rates AES, S/PDIF, AUX In
44.1 kHz to 192 kHz
Sample Rates USB
44.1 kHz to 384 kHz, DSD64, DSD128, DSD256, Native and DoP
Sample Rates Ethernet
44.1 kHz to 384 kHz, DSD128 Native
Jitter
8 ps @ 48 kHz / 6 ps @ 96 kHz
Balanced Analog Outputs
Balanced Analog Outputs
XLR balanced (Pin 2 hot)
Impedance
40 Ω
Output
@ full scale +16.5 dBm (5.2 V RMS)
Output Level
90 dB in 1 dB steps
D/A Conversion
PCM 24-bit delta-sigma, 8× oversampling, DSD direct 1-bit, 384 kHz ladder DAC
Frequency Response @ 44.1 kHz
10 Hz–20 kHz, +0 dB / −0.2 dB
Dynamic Range
>120 dB, A-weighted
THD+N @ 1 kHz
0.0008% @ 0 dBFS / 0.0004% @ −30 dBFS PCM sigma-delta
Unbalanced Analog Outputs
Unbalanced Analog Outputs
RCA
Impedance
40 Ω
Output Level
Full scale at front panel +6 dBm (1.2 V RMS)
D/A Conversion
PCM 24-bit delta-sigma, 8× oversampling, DSD direct 1-bit, 384 kHz ladder DAC
Frequency Response @ 44.1 kHz
10 Hz–20 kHz, −0.2 dB
Dynamic Range
>120 dB, A-weighted
THD+N @ 1 kHz
0.0008% @ 0 dBFS / 0.0004% @ −30 dBFS PCM sigma-delta
General Specifications
General Specifications
EMC
Complies with EN 55103-1, EN 55103-2, FCC Part 15 and Class B
RoHS
Complies with EU RoHS Directive 2002/95/EC
Safety
Certified to IEC 60065, EN 55103-2
Operating Temperature
32°F to 105°F (0°C to 40°C)
Storage Temperature
−22°F to 167°F (−30°C to 70°C)
Finish
Anodized aluminum, nickel plating with brass knobs and buttons
Dimensions
17 × 12 × 4.5 in
Weight
15 lbs
Shipping Weight
18 lbs
Shipping Dimensions
22 × 17 × 7 in
Mains Voltage
100, 120, 220, 240 VAC, 50–60 Hz, factory set
Trigger Out
TRS mini jack, tip ground, sleeve 5 V
Power Consumption
28 W (6 W standby)
Warranty Parts and Labor
2 years, non-transferable
