Bricasti

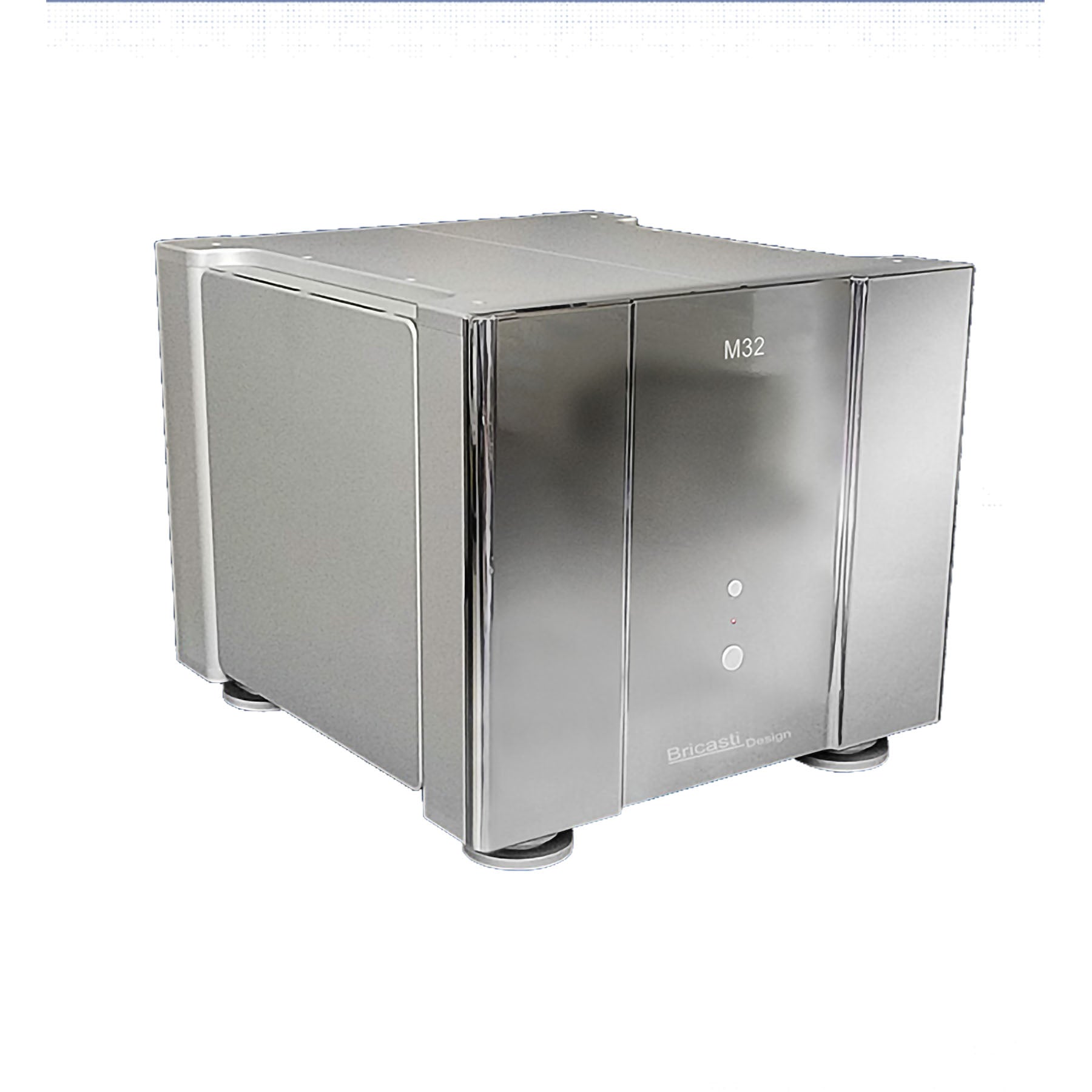

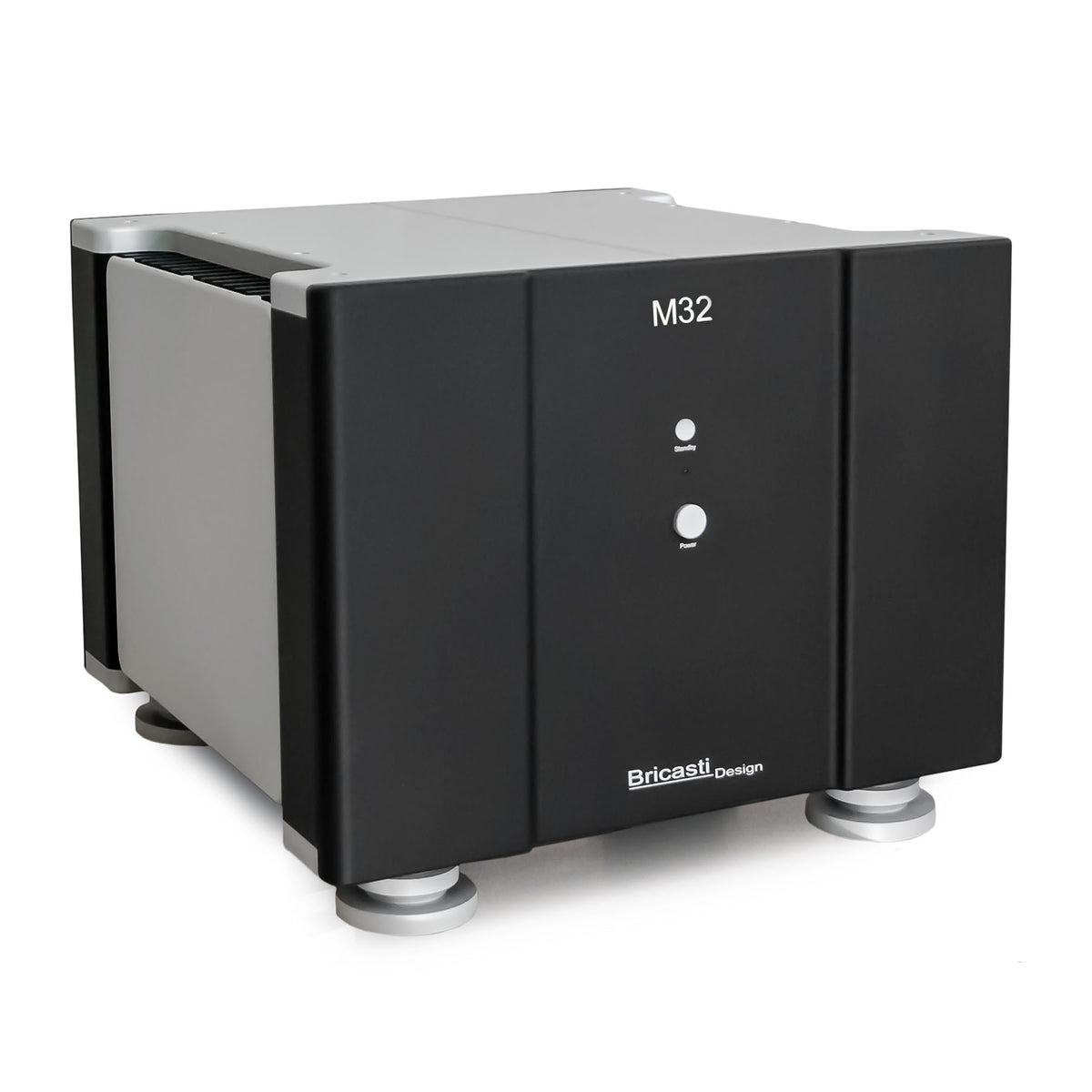

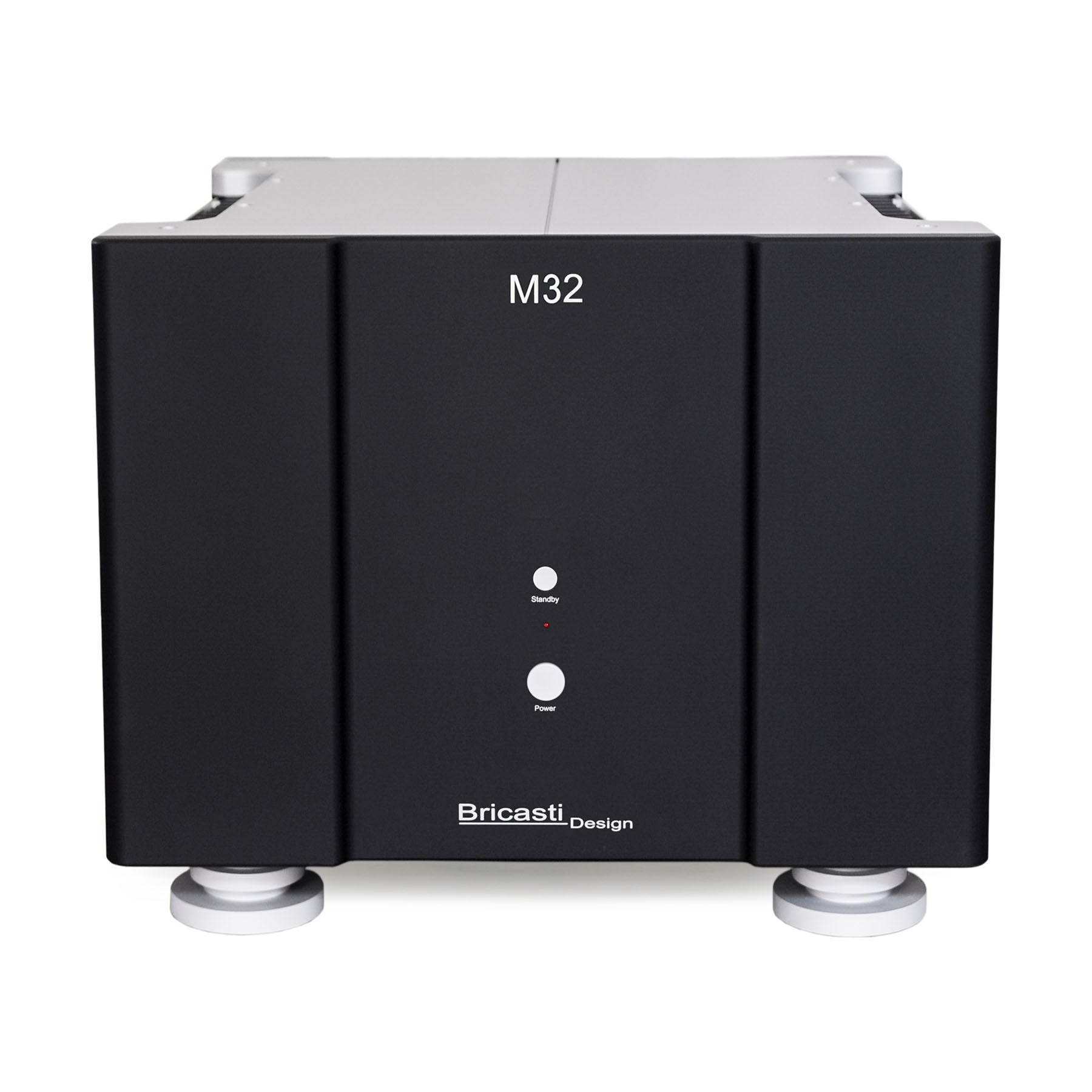

Bricasti M32 Monoblock Power Amplifier

Colour:Black

Variant

Consult with Us

Available from

HeyNow HiFi Victoria Knox Audio New South Wales Vinyl Revival Victoria Krispy Audio New South Wales Magenta Audio South Australia

The M32 power amplifier is the latest rendition in the Bricasti line of power amplifiers. The flagship M32 builds upon the award winning Bricasti M28 and raises the bar to a whole new level of enjoyment with impressive depth and solidity that needs to be experienced to be fully appreciated.

Supercharged

The M32 has an impressive 50% more current delivery when comparing to the M28; high current delivery, extremely low noise and low distortion with even less power supply ripple. The power delivery of the M32 is increased to 250W into 8 ohms, 500W into 4 ohms, and current limited for safety at 1000W into 2 ohms, more than 1kw peak power into 4 ohms.

Fully differential

Not all devices are balanced end-to-end. The M32's fully differential design delivers a fast, low distortion, open and harmonically accurate musical experience. Paired with any of the Bricasti line of fully differential digital to analog converters, a truly balanced system can be enjoyed from source to speaker.

Dialed-In

An improved chassis capable of housing the new larger power transformer which offers a greater distance between the power components and the voltage and current gain sections of the amplifier. The results are a design that yields extremely low noise performance and no practical interference from the power supply components and gain sections of the amplifier.

Handcrafted in the USA

All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.

Product Specifications

Total Harmonic Distortion

THD+N less than 0.005%, 20 Hz–20 kHz at full rated power into 8, 4 and 2 Ω

Power

250 W into 8 Ω, 500 W into 4 Ω, 1000 W into 2 Ω

Frequency Response

10 Hz–150 kHz, within 0.5 dB

Signal to Noise

Greater than 95 dB at full rated power

Power Topology

Fully differential, bipolar

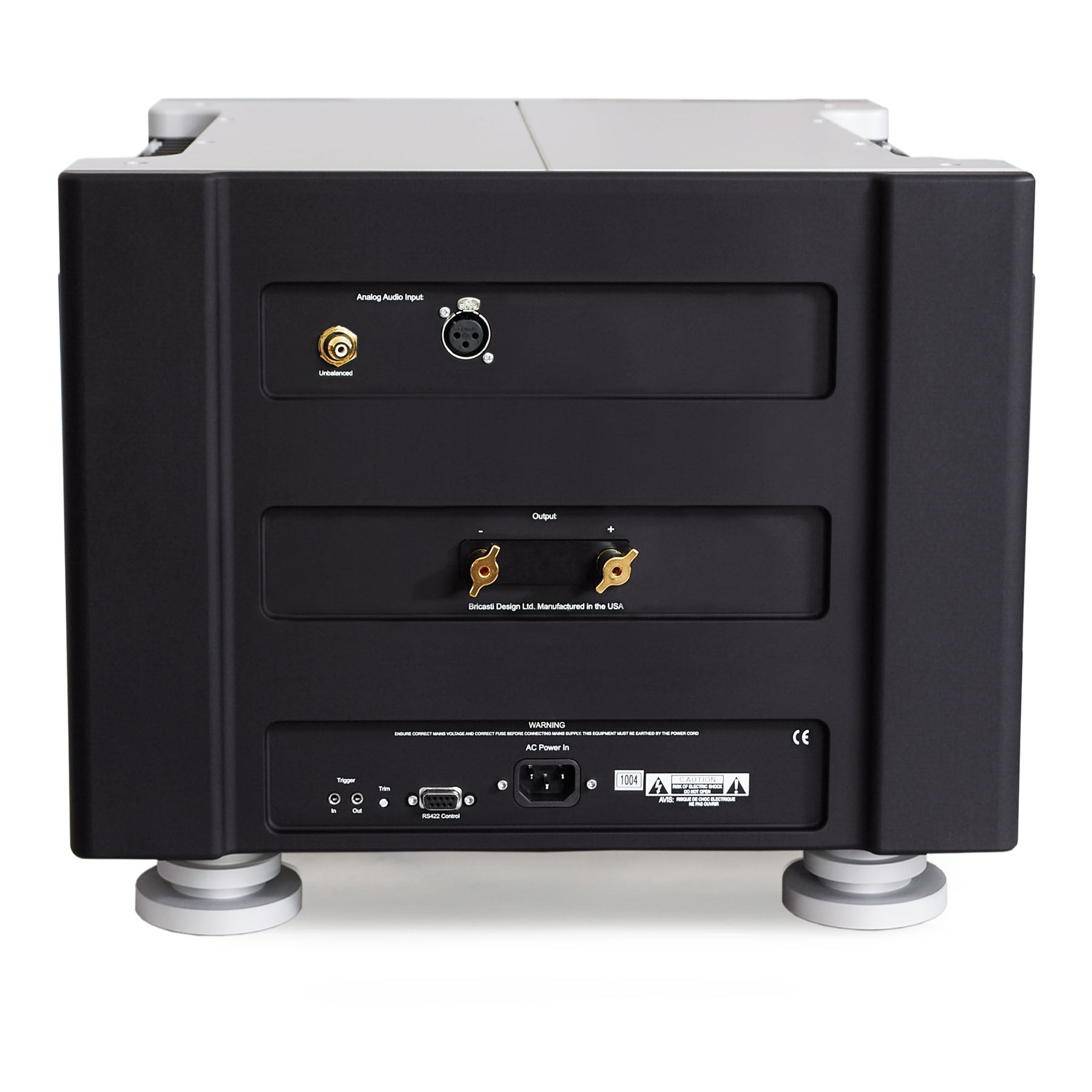

Balanced Input

XLR connector, 200 kΩ impedance

Unbalanced Input

RCA connector, 100 kΩ impedance

Weight

120 lbs

Shipping Weight

140 lbs

Finish

Anodized aluminum

Mains Voltage Set at Factory

100, 120, 220, 230, 240 VAC, 50–60 Hz

Trigger In

TRS connector for 5 V external trigger

Power Consumption

60 W standby, 2 W idle
