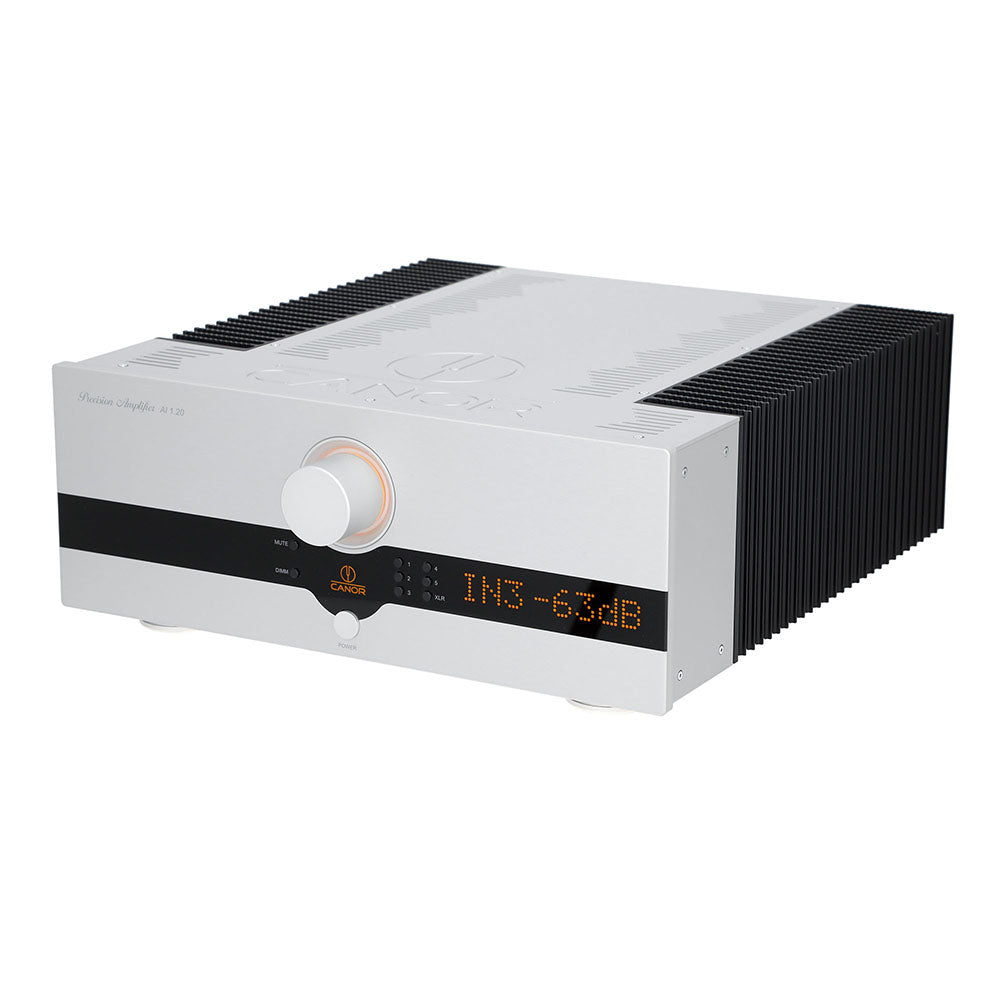

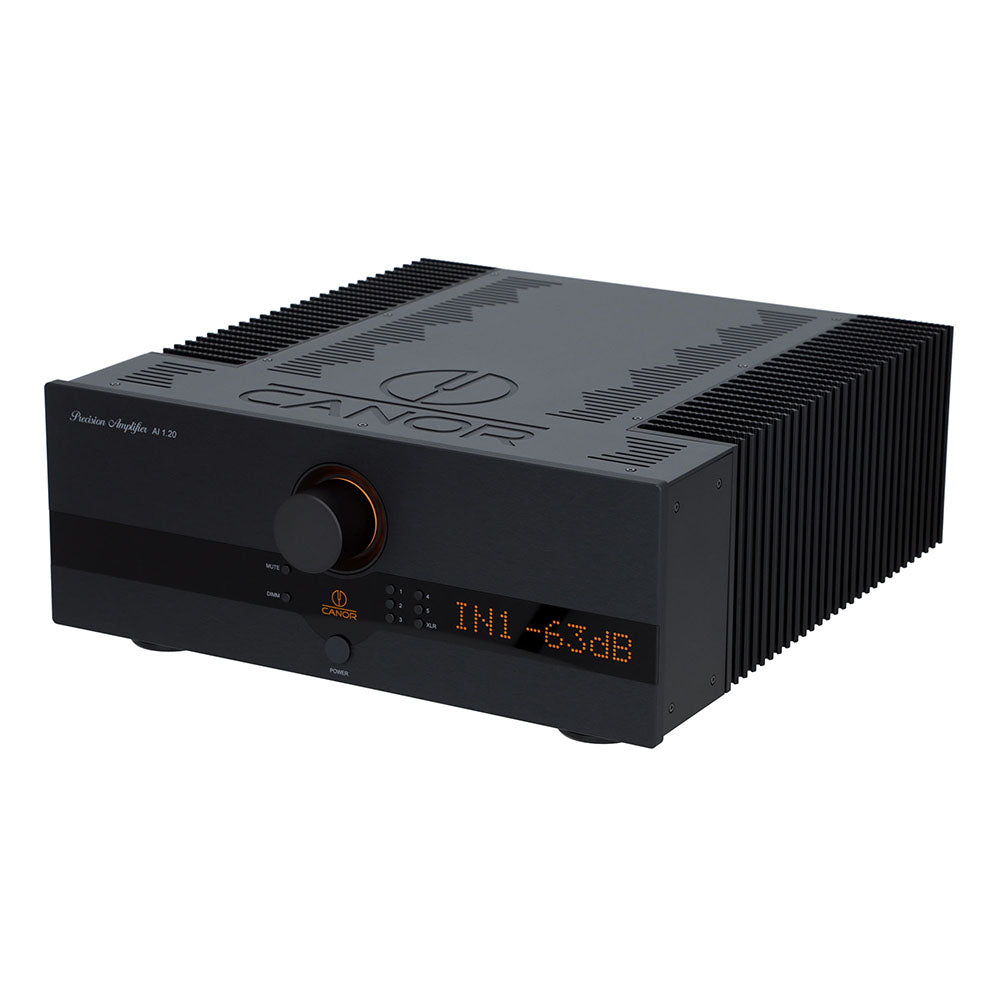

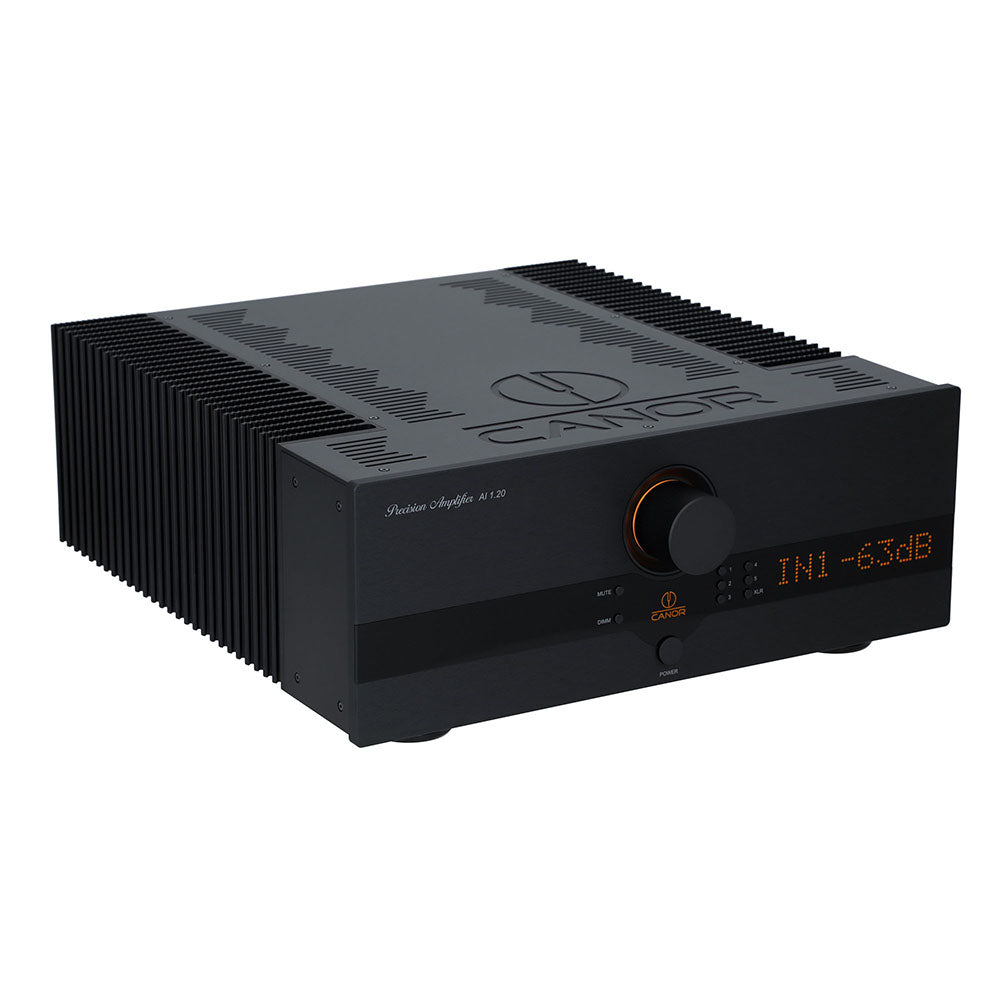

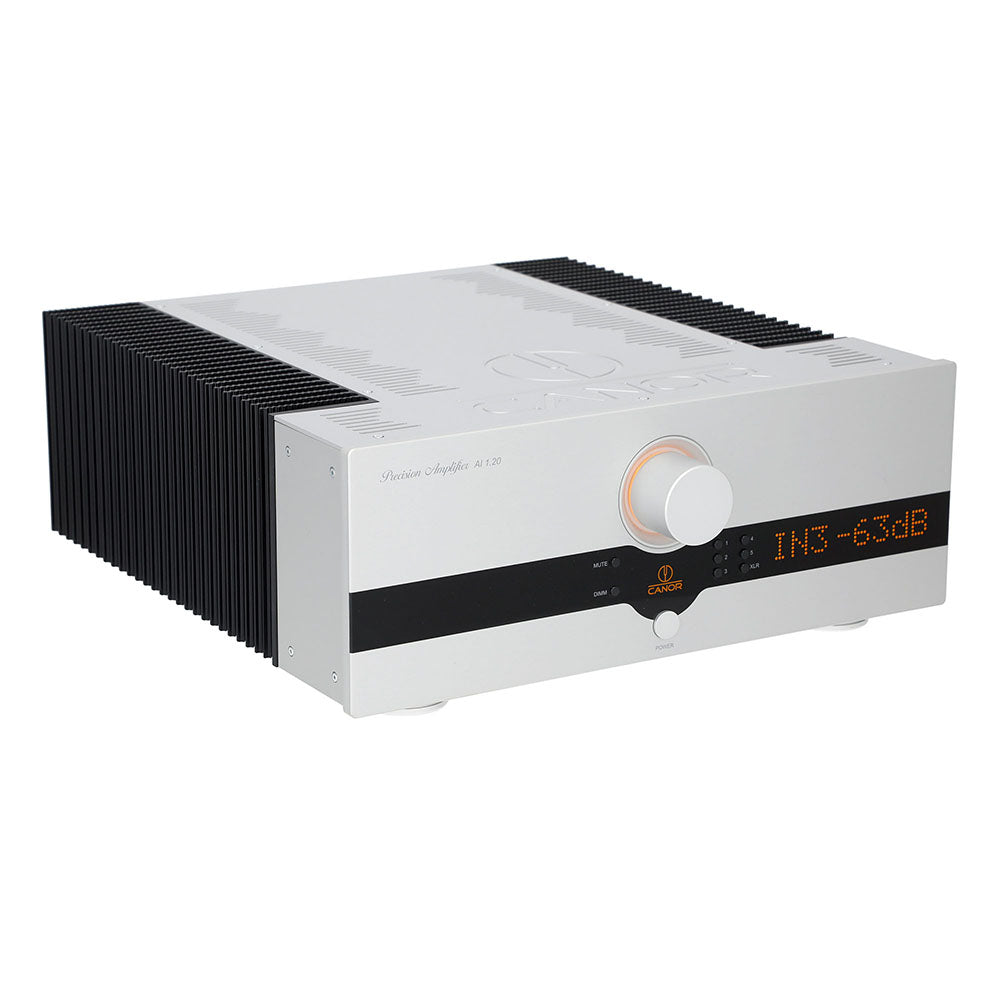

Canor AI 1.20 Integrated Amplifier Solid-State Integrated Amplifier, Class A, Premium Line
CANOR AI 1.20 is an integrated solid-state amplifier in pure class-A up to 50 W per channel with a relay attenuator with two standalone blocks for each channel.
Highlights
01 Operates in a pure class A
02 264 000 uF of total filtering capacitance
03 Possibility to create a monoblock connection of 2 units

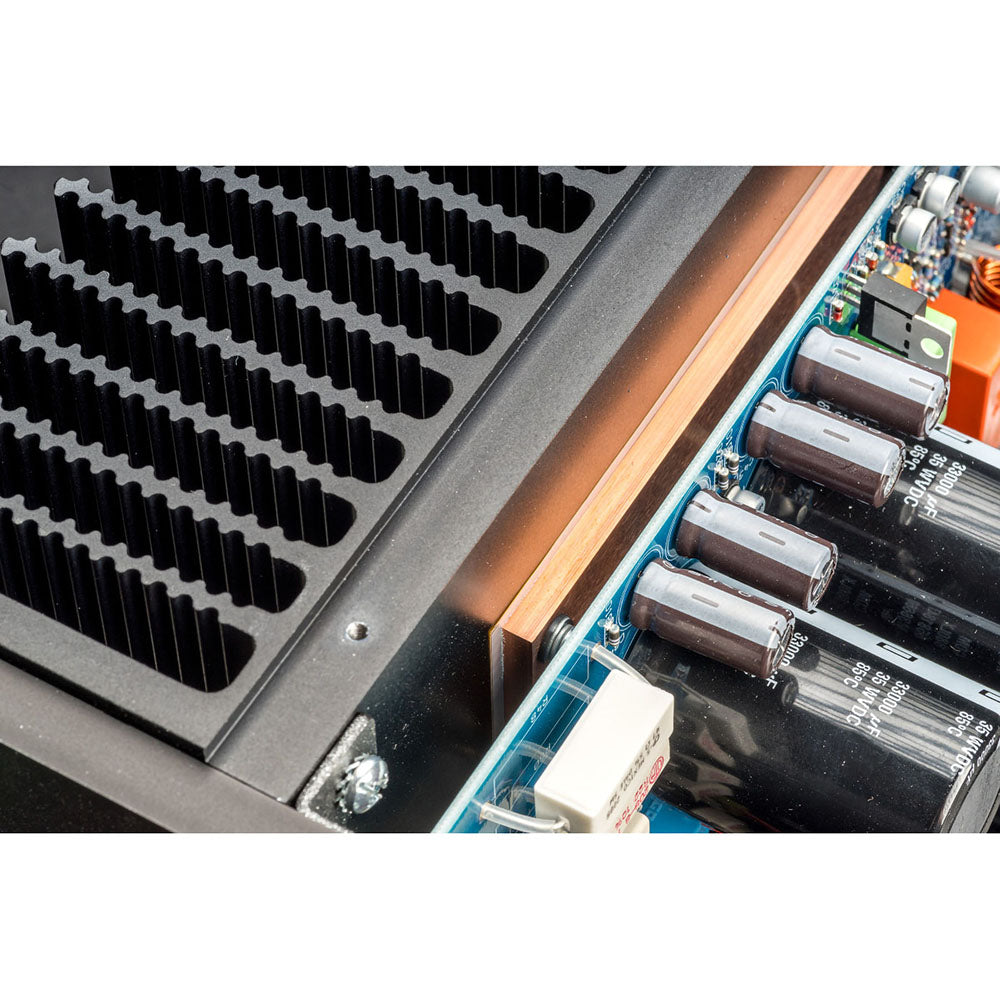

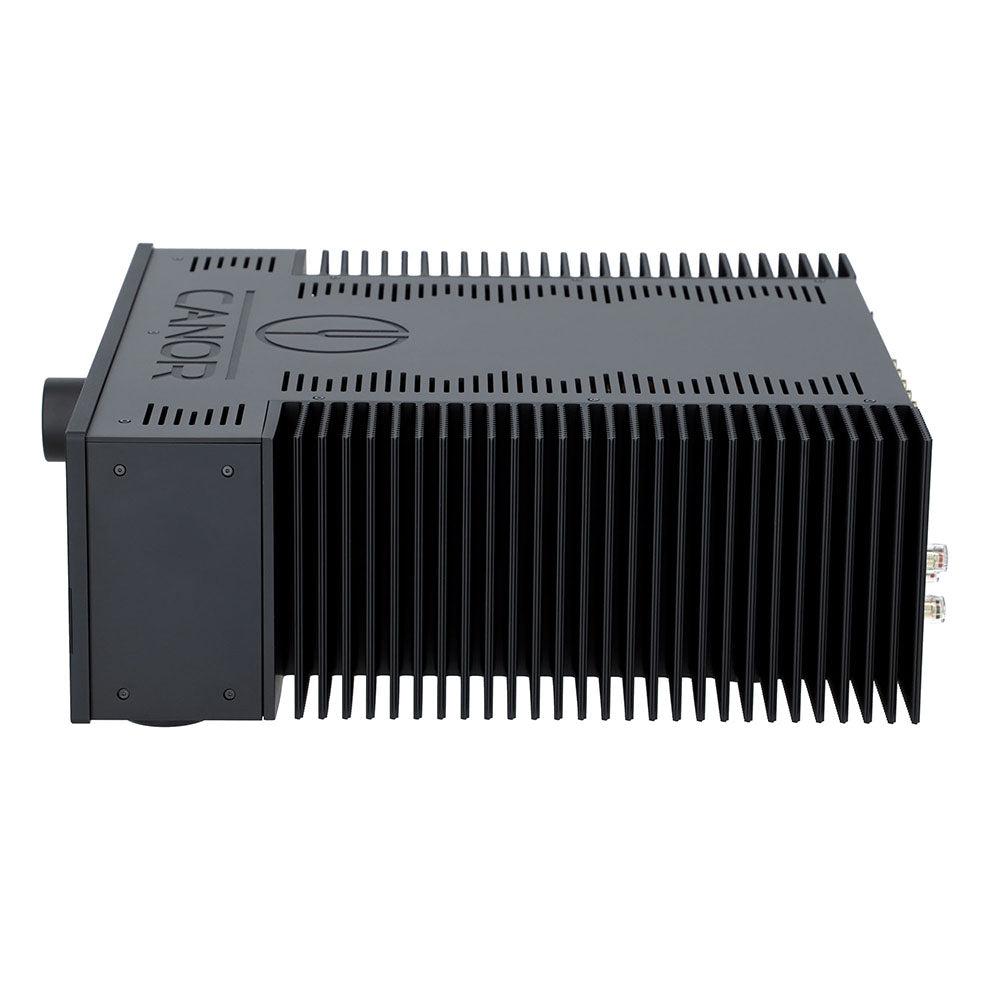

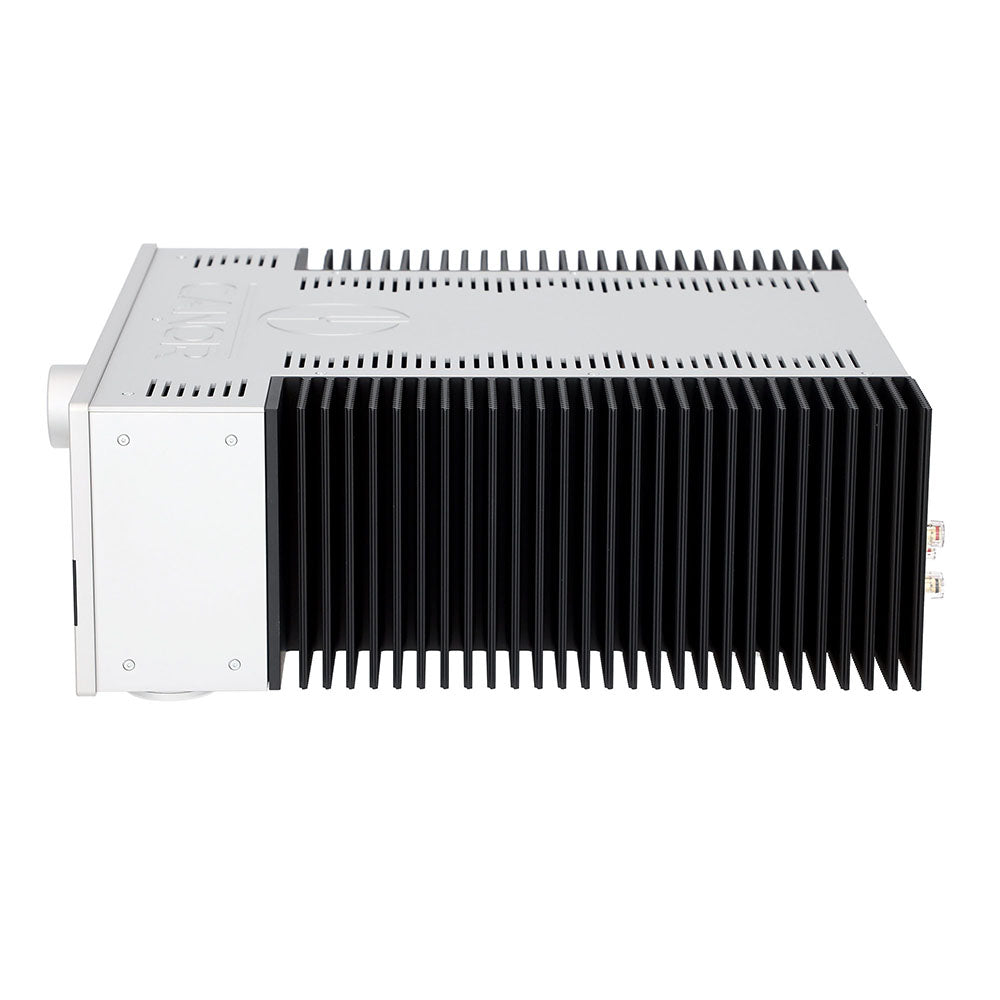

Heat disposal

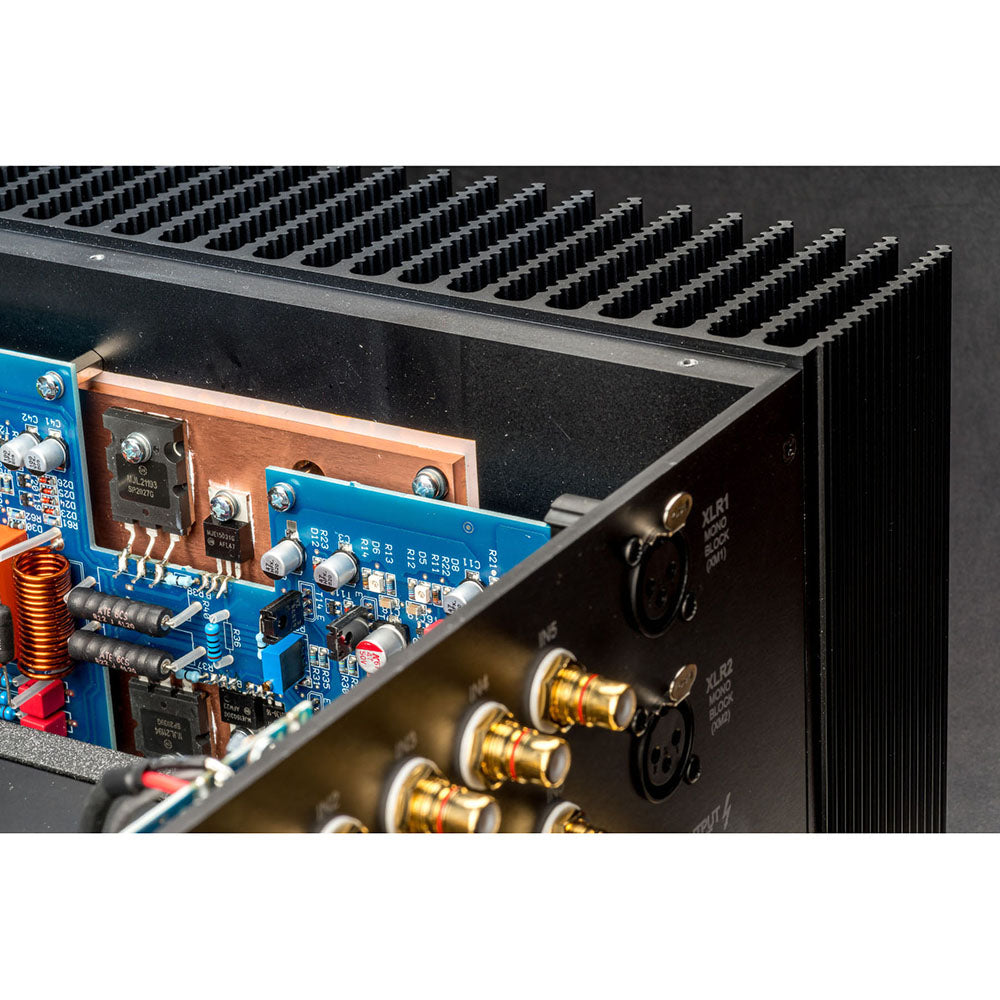

We used a special copper plate for heat dissipation, which is installed on the heatsink and the power transistors are installed directly on the given copper plate.
Dual-mono connection
Dual-mono connection – each channel has its own power transformer. Power transformers are located in separate parts of the device.

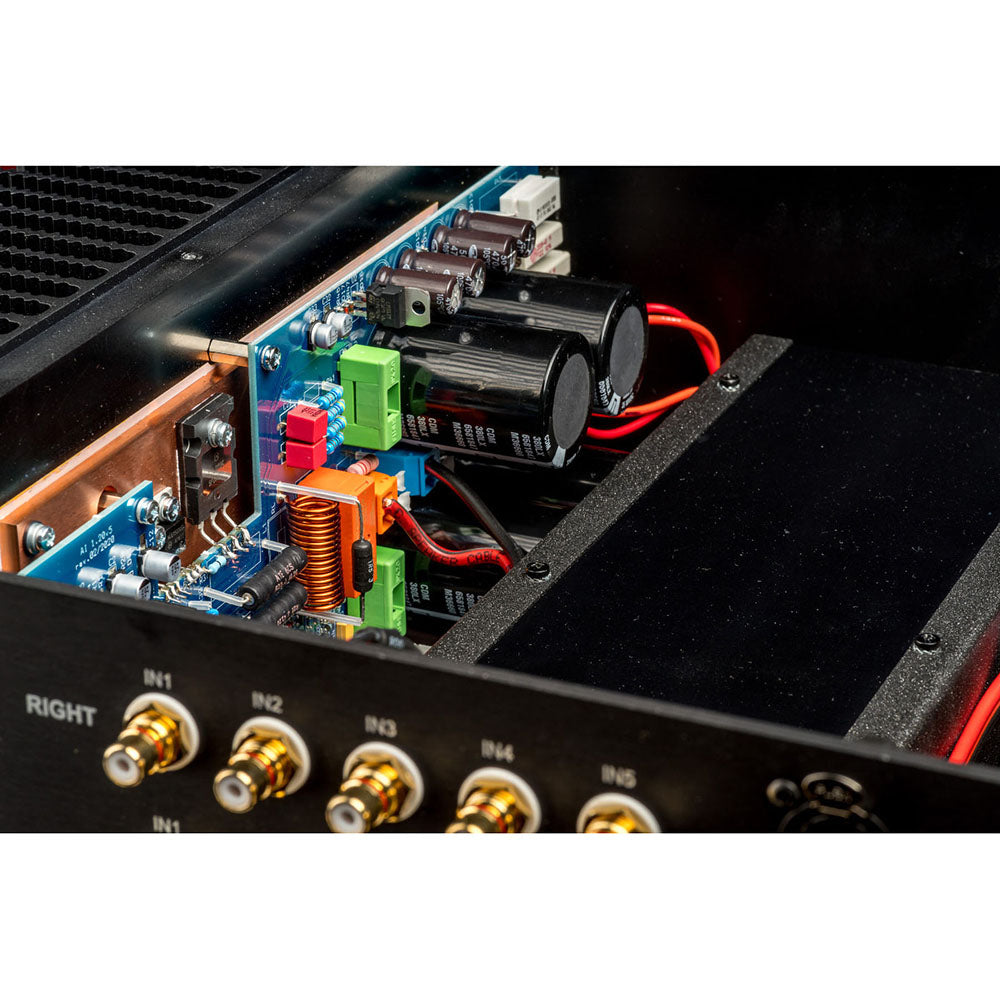

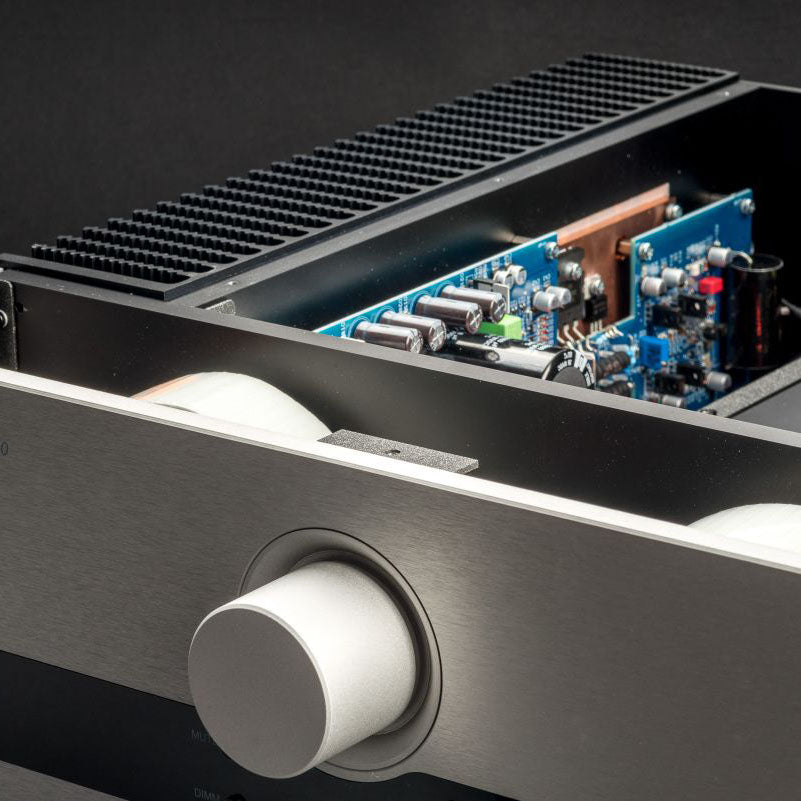

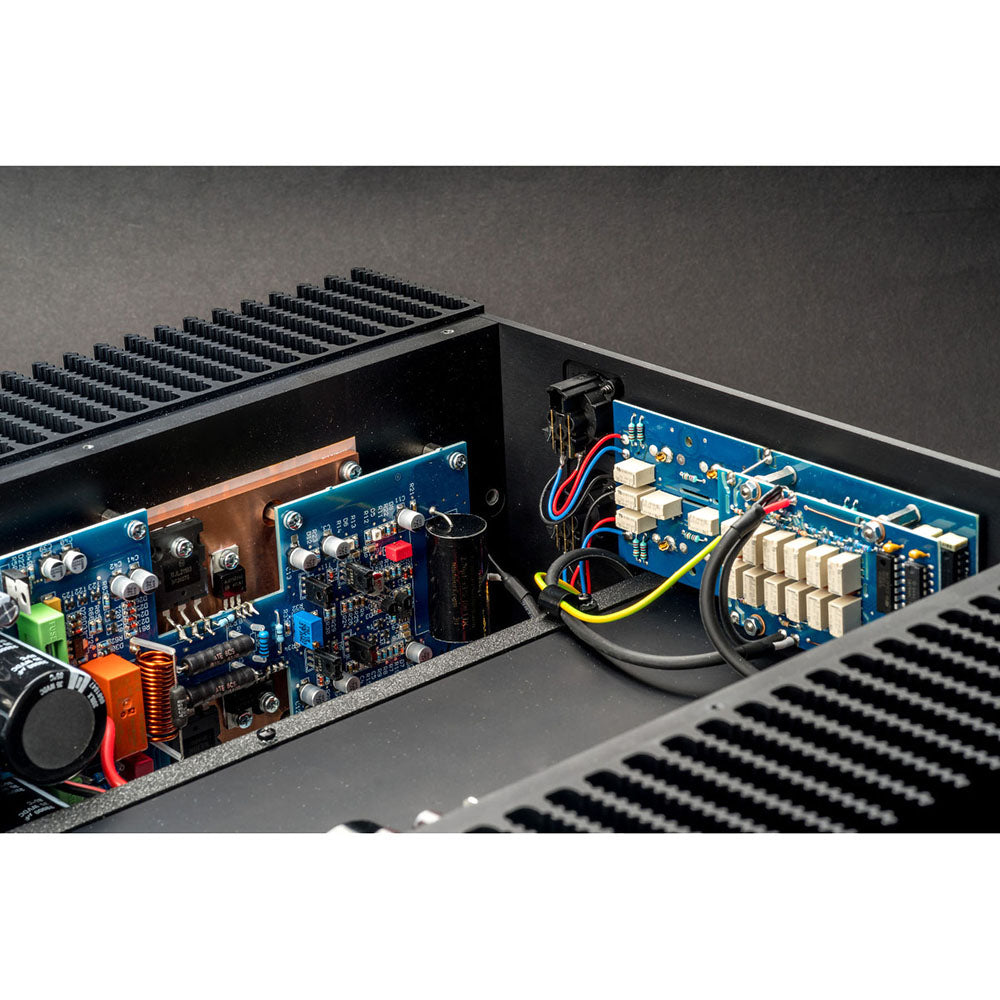

Amplifier design
A shielded tunnel passes through the center of the AI 1.20 amplifier, in which filters with nanocrystalline coils are located. In addition, the input circuits are equipped with low-noise J-P transistors.
Monoblock connection

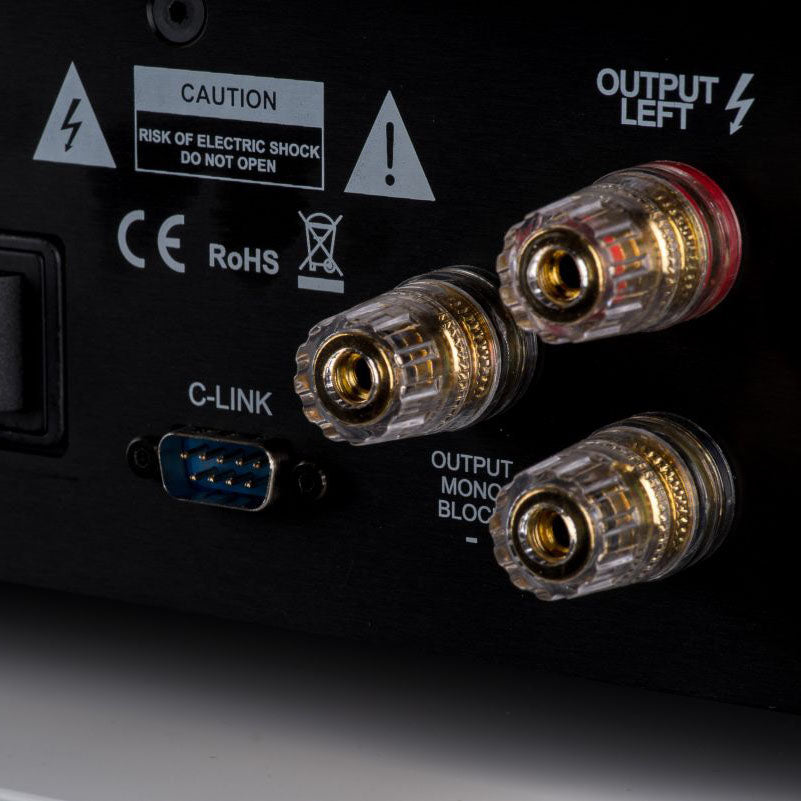

For even better performance and sound, it is possible to connect AI 1.20 as monoblocks using a data cable. One unit becomes the “master” unit and the other the “slave”. This is the so-called bridge connection of two amplifiers (a fully symmetrical connection)
Features
-
An integrated solid-state amplifier in pure class-A up to 50 W per channel
-
A relay attenuator with two standalone blocks for each channel
-
PCB’s utilize our premium CMT™ technology (CANOR® PCB Milling Technology), it is the way we mill printed circuit boards
-
CMT™ technology originated in a long-standing endeavour to improve the sonic performance of our products
-
Power supply units with filtered out interfering signals from the mains supply
-
Interference-rejection and as small as possible leakage field ensure custom-wound toroidal transformers
-
264 000 uF of filtering capacitance simulates a nearly stabilized supply voltage
-
An option of synchronous control enables the use of two amplifiers in a monoblock mode without the need of using an extra preamplifier and that is a Master/Slave mode with an output power of 100W per channel
Reviews
Canor AI 1.20 – Review – Audio (PL)
Canor AI 1.20 – Gdy wzmacniacz jest wzmacniaczem
29.01.2025
Canor AI 1.20 – Review – SoundRebels (PL)
Canor AI 1.20 – Elegancja i wyrafinowanie
20.11.2022
Canor AI 1.20 – Review – HiFi+ (EN)
Canor AI 1.20 – Integrated Amplifier
14.04.2021
Canor AI 1.20 – Review – Pursuit Perfect System (EN)
Canor AI 1.20 – Pure Class A – HiFi Monoblock Amplifier Audio Glory
15.11.2020
Product Specifications
Output power
2 x 50 W / 4 Ω
2 x 30 W / 8 Ω
Gain
-30 dB
Inputs sensitivity
290 mV
Frequency range
(20 – 25 000) Hz ±0,5 dB / 5 W
Input impedance
30 kΩ

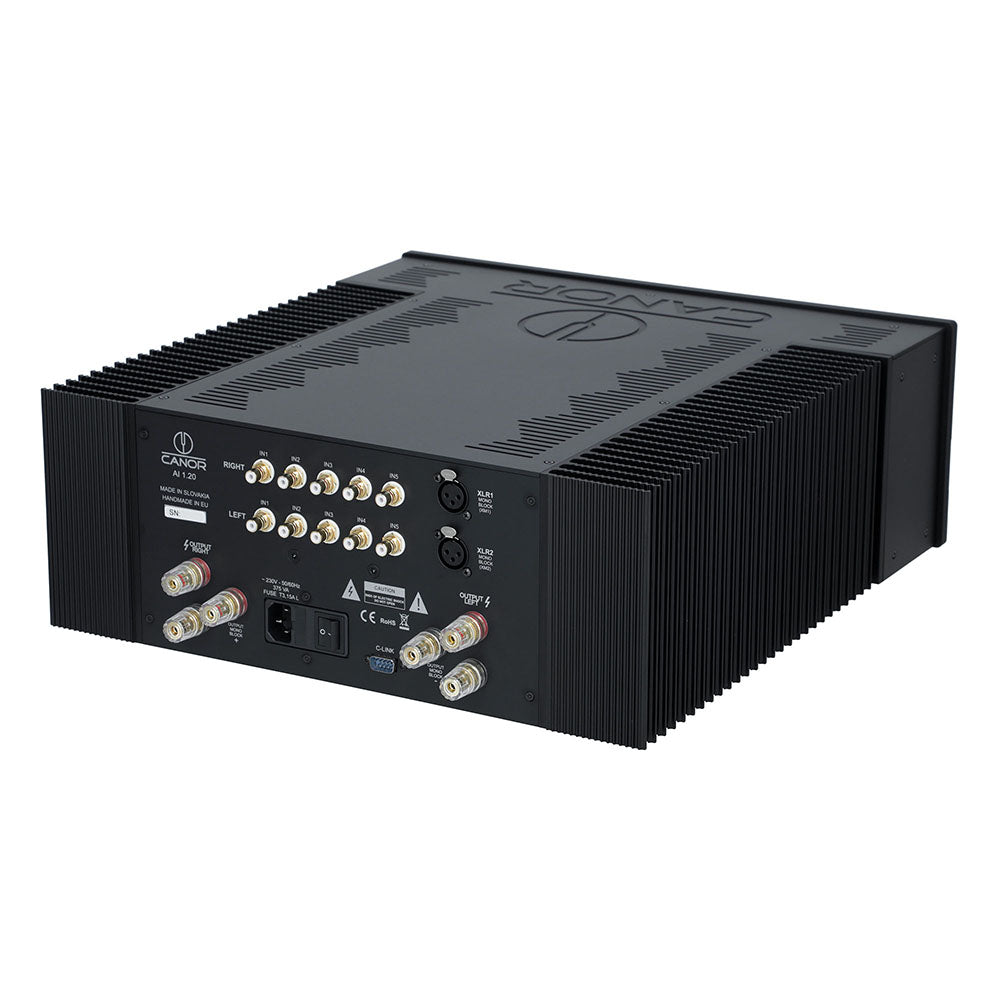

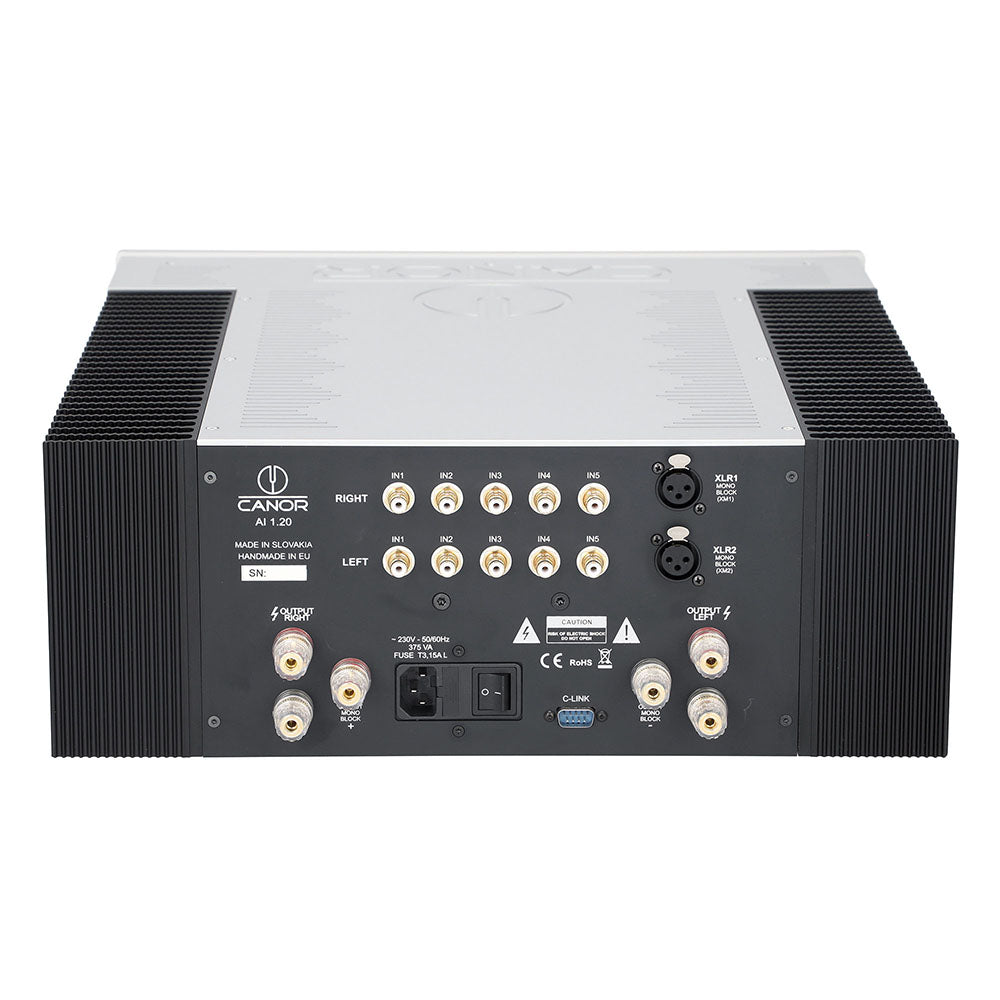

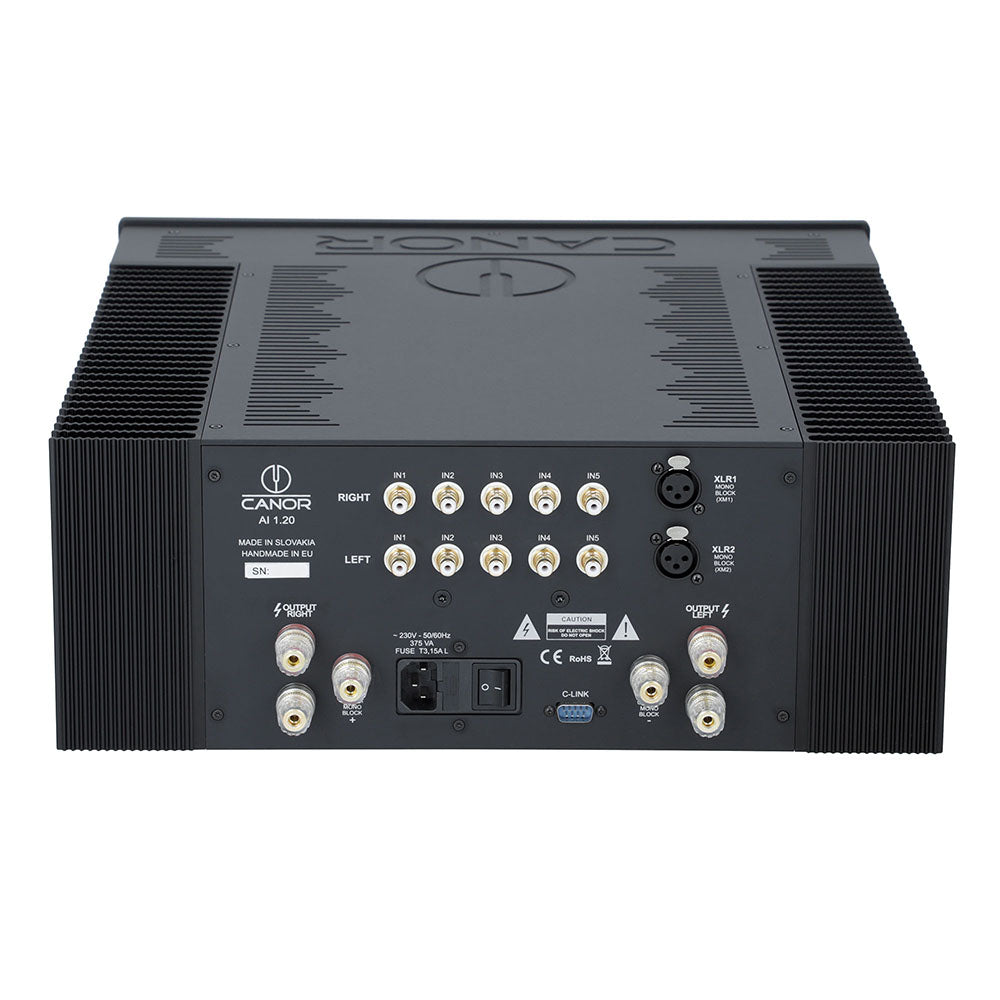

Inputs
5 x RCA, 2 x XLR (active only in monoblock connection)
Total Harmonic Distortion
<0,0009% / 1 kHz, 5 W
Signal-to-noise ratio
> 90 dB
Filtration capacity
132 000uF / 35V (per channel)
Damping factor at 4 Ω load at the output
250 (based on measured output impedance)
Damping factor at 8 Ω load at the output
500 (based on measured output impedance)
Power
230 V / 50 Hz / 375 VA
Input power
305 W
Dimensions (w x h x d)
435 x 170 x 485 mm
Weight (net)
28 kg
Output power
2 x 40 W /4,8 Ω – ultralinear
2 x 20 W /4,8 Ω – triode
Gain
-30 dB (at 8 Ω)
-28 dB (at 4 Ω)
Inputs sensitivity
500 mV
Frequency range
(10 – 50 000) Hz ±0,5 dB / 5 W
Input impedance
30 kΩ
Inputs
5 x RCA, 2 x XLR (active only in monoblock connection)
Total Harmonic Distortion
<0,05% / 1 kHz, 5 W
Signal-to-noise ratio
> 95 dB
Filtration capacity
2200uF / 500V
Damping factor at 4 Ω load at the output
9 (based on measured output impedance)
Damping factor at 8 Ω load at the output
10,5 (based on measured output impedance)
Tube complement
4 x KT88 / 1 x 12AX7 / 2 x 12AT7
Power
230 V / 50 Hz / 375 VA
Input power
220W
Dimensions (w x h x d)
435 x 170 x 485 mm
Weight (net)
26 kg
