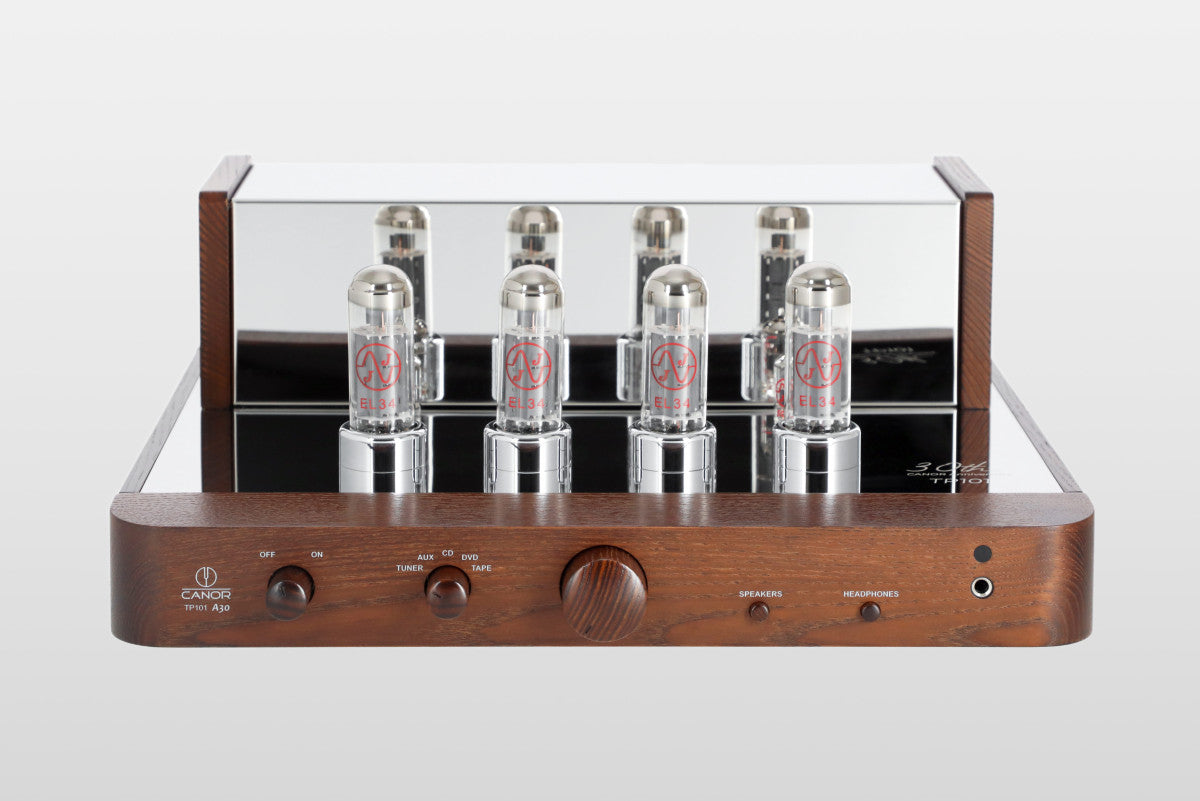

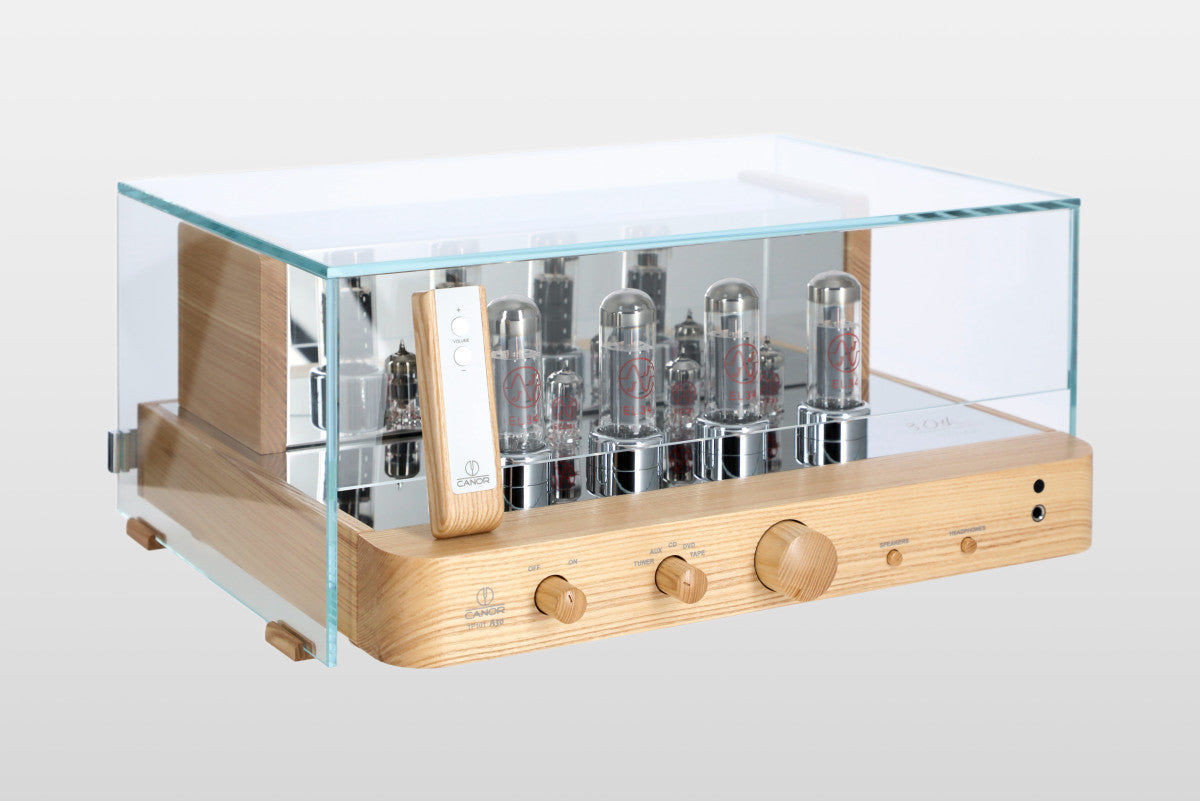

Canor TP101 A30 Integrated Tube Amplifier, Premium Line

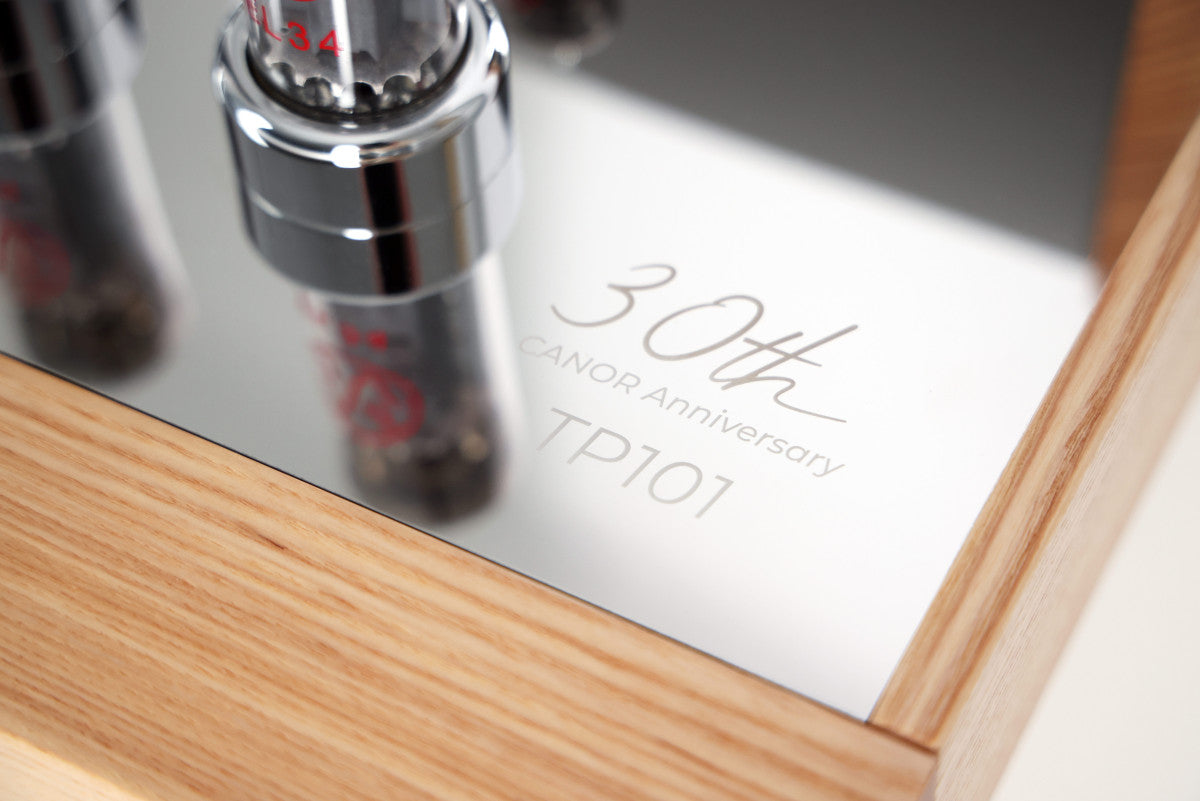

The TP101 A30 pays tribute to CANOR's very first tube amplifier, built three decades ago with a passion for natural sound and uncompromising craftsmanship. Reimagined for today, it blends classic tube warmth with refined engineering, offering a modern listening experience rooted in tradition.
Highlights
01 Ultralinear EL34 Class AB amplifier with a signature tube sound
02 Premium wooden-stainless steel design
03 Powerful built-in headphone output
Headphone output
The TP101 A30 features a high-quality headphone output that delivers excellent technical performance and a rich, dynamic sound. It offers clean detail, strong control, and a natural listening character, making it an engaging choice even with demanding headphones.

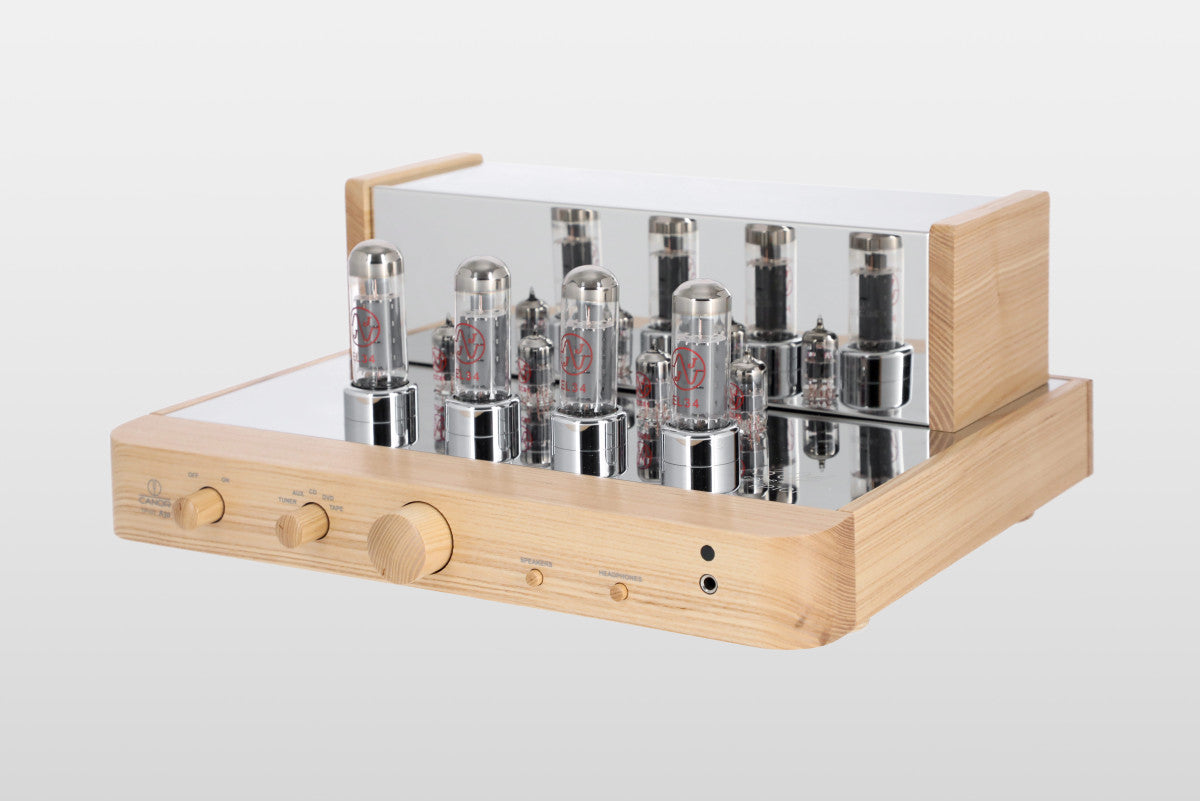

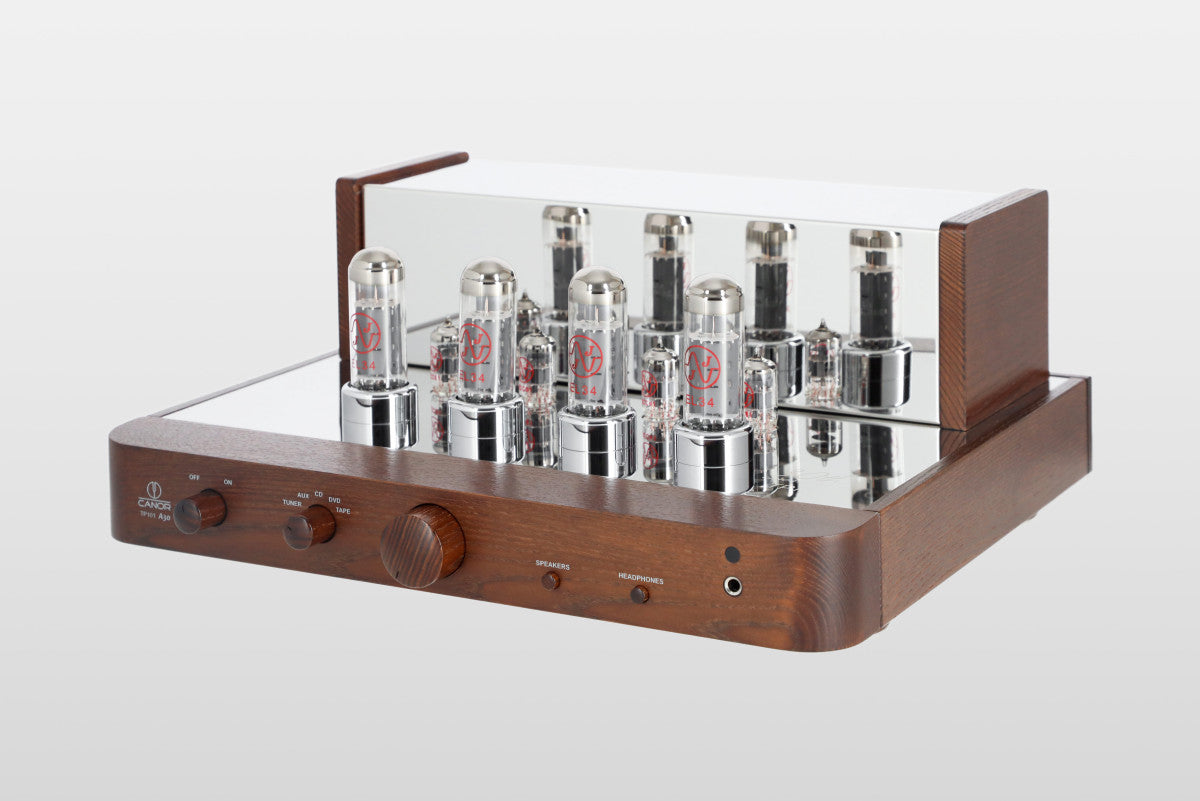

Wood & Stainless Steel Design
A carefully balanced composition of real wood and stainless steel gives the amplifier tactile and visual presence that mirrors its sonic character. Each material was chosen not only for its aesthetics but for its longevity and timeless appeal.
Output permalloy transformers
High-grade output transformers built on 100% permalloy cores provide the TP101 A30 with superior clarity, tighter control, and a remarkably natural, open sound.
Robust chassis structure with anti-vibration protection
The chassis support structure is made of 2 mm iron material, which forms a solid foundation for the entire device. The exterior design combines wood with a mirror stainless steel surface, while the anti-vibration material used effectively dampens mechanical vibrations of the transformer housing, thereby contributing to the elimination of unwanted noise.
Voltage Stabilization Circuit
The amplifier is equipped with a voltage stabilization circuit (VSC) that constantly monitors the input voltage and accordingly maintains the operating voltage range of the tubes in optimal conditions.
High-quality signal wiring
The TP101 A30 uses high-quality silver-plated internal signal wiring to preserve even the finest musical details. This premium cabling ensures excellent conductivity, lower signal loss, and cleaner transmission across the entire audio path.
CMTTM
The TP101 A30 utilizes our advanced CMTTM (CANOR® PCB Milling Technology) for optimal performance. The CMTTM allows us to get the dielectric loss factors (loss tangent) of PCB close to the loss factor of air. Thanks to this technology we managed to get repeatedly to the parameter level of the so-called "wire-to-wire connections".
Pure sound. Nothing less.
At the heart of the TP101 A30 is a carefully tuned push-pull ultralinear class AB amplifier. Alongside custom-designed permalloy output transformers, the amplifier delivers an unmatched sound experience. The major innovation, the CMT, in TP101 A30, is significantly enhancing the amplifier's parameters.
Product features
- An integrated tube amplifier based on EL34 tubes operating in class AB, providing an output power of 2 x 35 W.
- High input filtration capacity.
- The product uses premium, high-quality Mundorf coupling capacitors.
- Precise selection and tube pairing meet above-average parameters.
- Premium silver-plated internal signal wiring to preserve even the finest musical details.
- Special output permalloy transformers.
- High-end two-way Alps potentiometer.
- PCBs utilize our premium CMT ™ technology.
Reviews
Canor TP101 A30 – Review – LP Magazin (DE)
Canor TP101 A30 - Schein und Sein
26.02.2026
Product Specifications
Amplifier Class
AB
Stereo Output Power
2 × 35 W / 4, 8 Ω (1%)
Headphone Output Power
2 W / 30 Ω (<1%); 4 W / 300 Ω (<1%)
Gain
30 dB (at 4 Ω); 33 dB (at 8 Ω)
Input Sensitivity
380 mV
Frequency Range
18–55,000 Hz / −0.3 dB
Damping Factor
6.5 / 4 Ω load; 7 / 8 Ω load
Input Impedance
30 kΩ

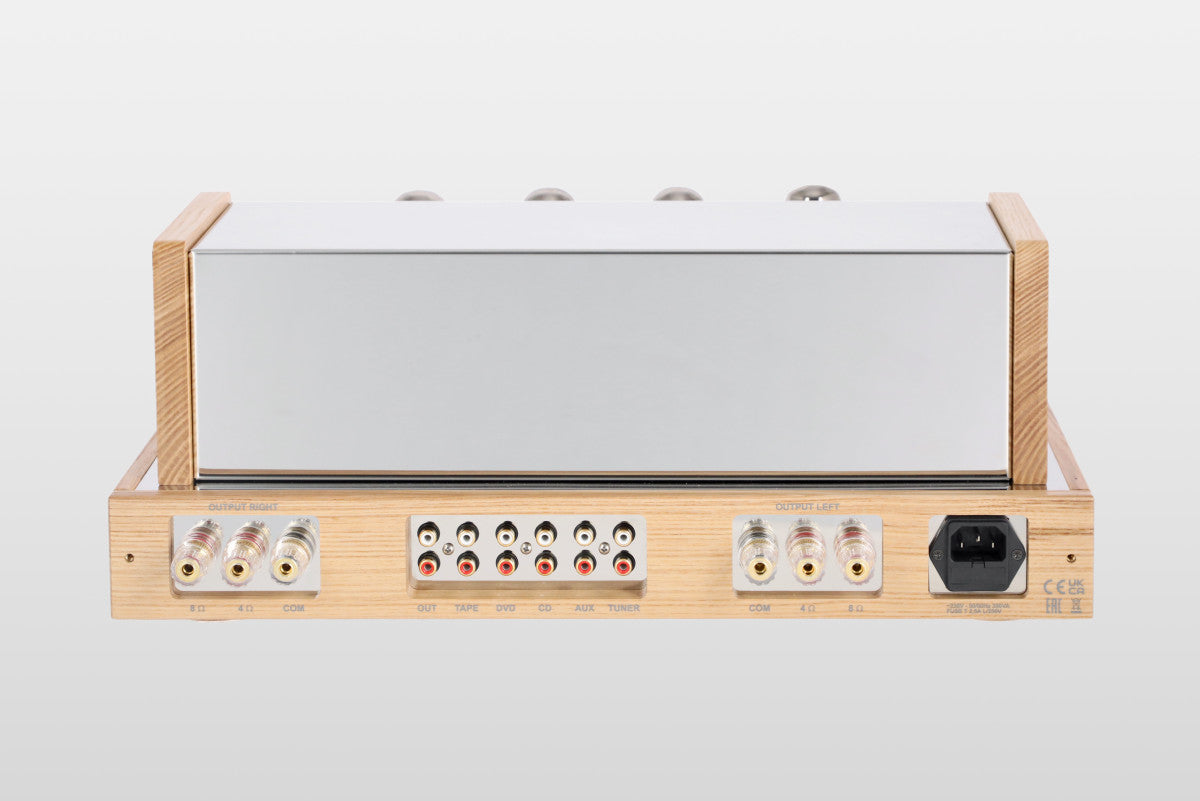

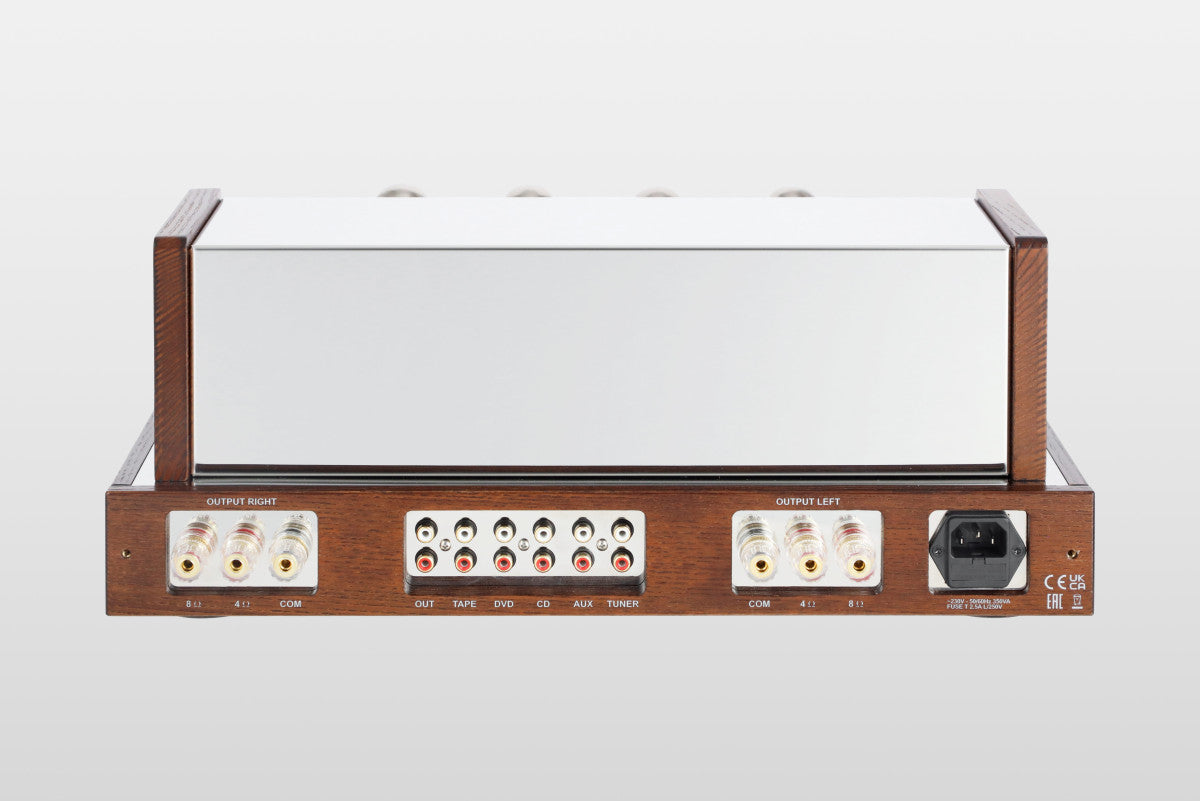

Analog Inputs
5 × RCA pairs
Analog Outputs
1 × RCA pair (Fixed Out)
Headphone Output
1 × 6.3 mm jack
Total Harmonic Distortion
< 0.025% / 8 Ω (1 kHz, 1 W)
< 0.1% / 8 Ω (1 kHz, 5 W)
Signal-to-Noise Ratio
> 96 dB

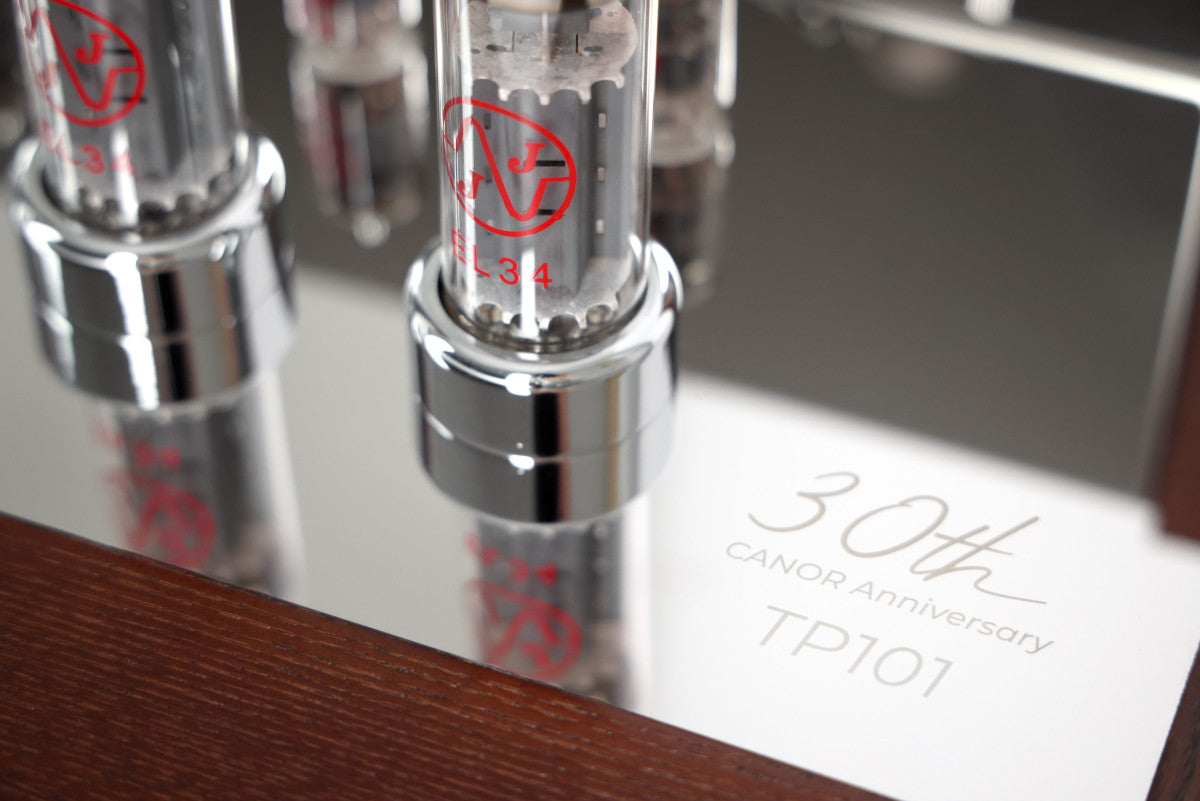

Tube Complement
4 × ECC81, 4 × EL34
Power
230 V / 50–60 Hz / 290 VA
Dimensions (W × H × D)
450 × 185 × 390 mm
Weight (Net)
23 kg
Weight (Gross)
35 kg

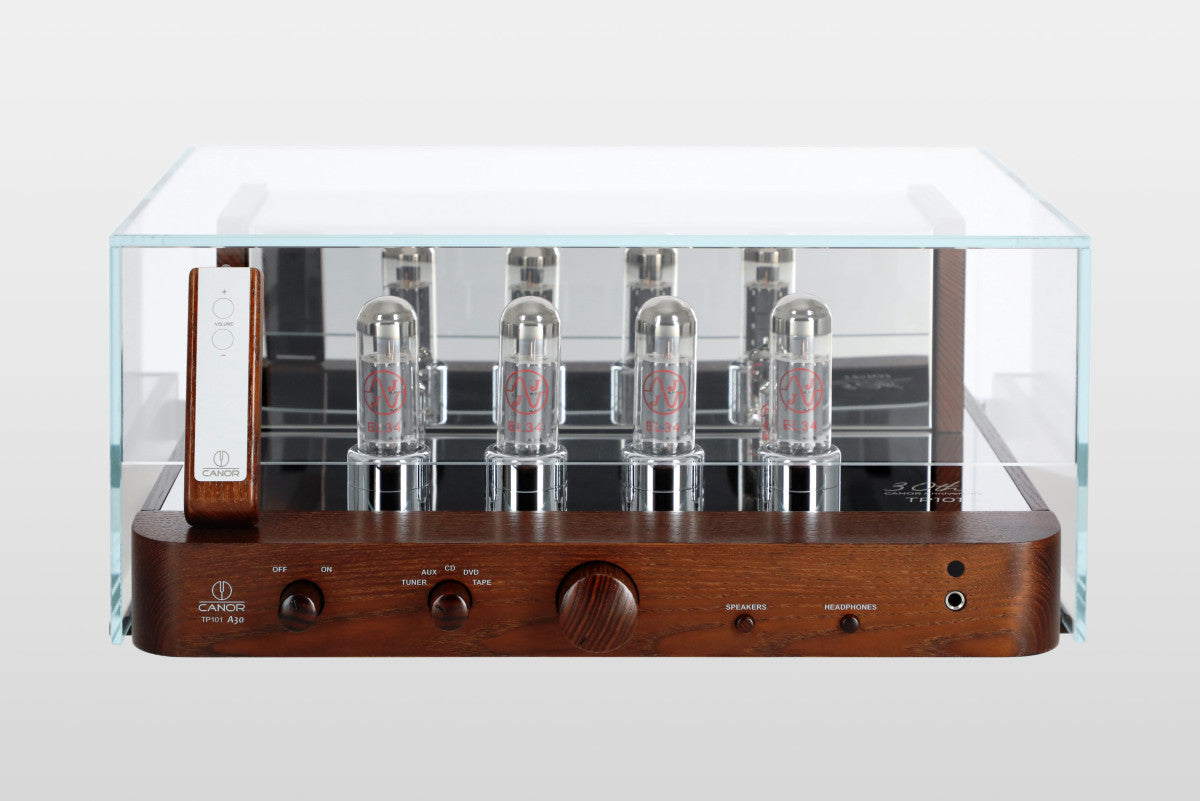

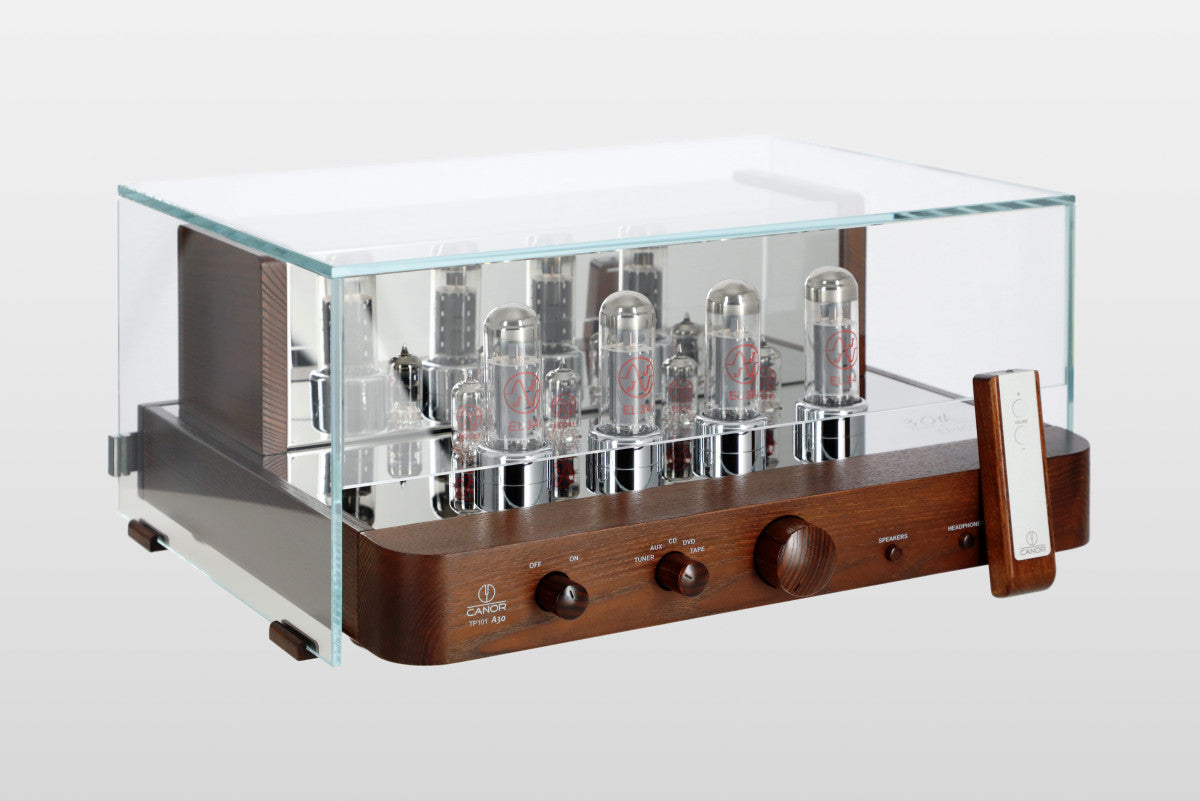

Glass Cover Weight
5 kg
