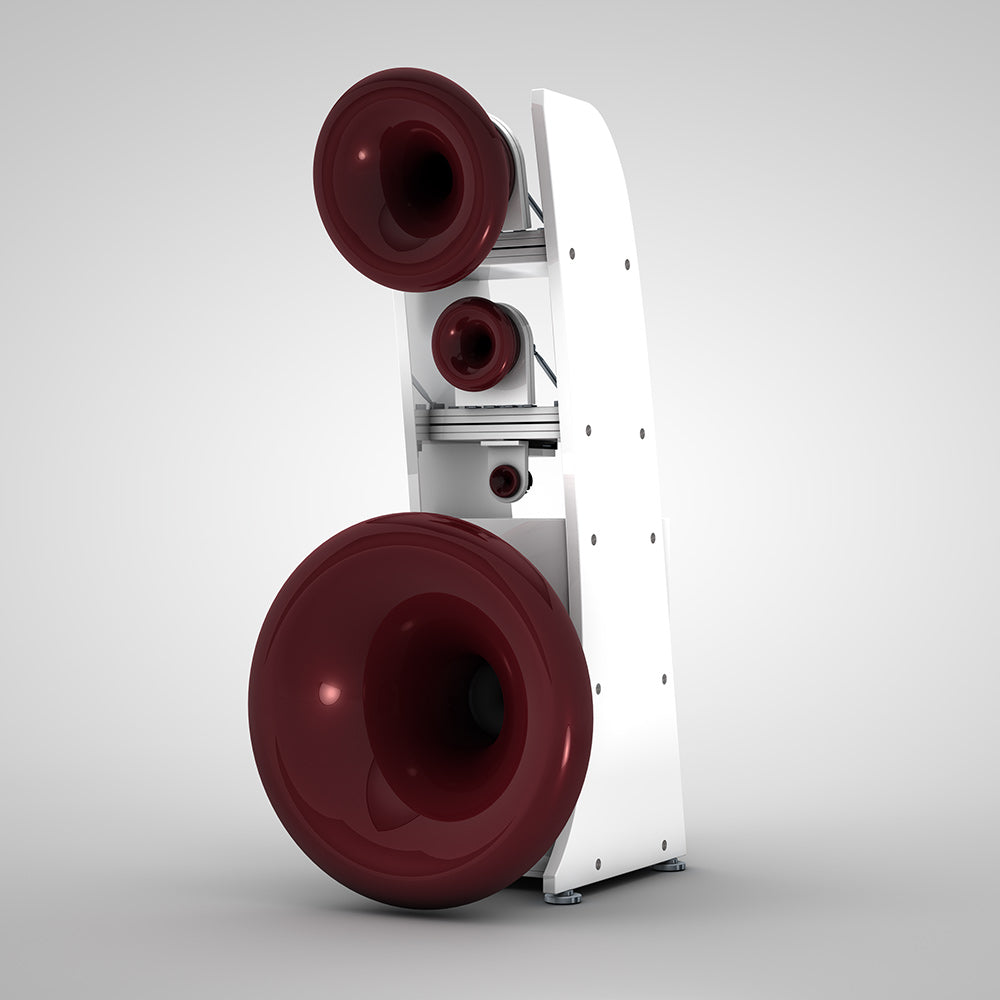

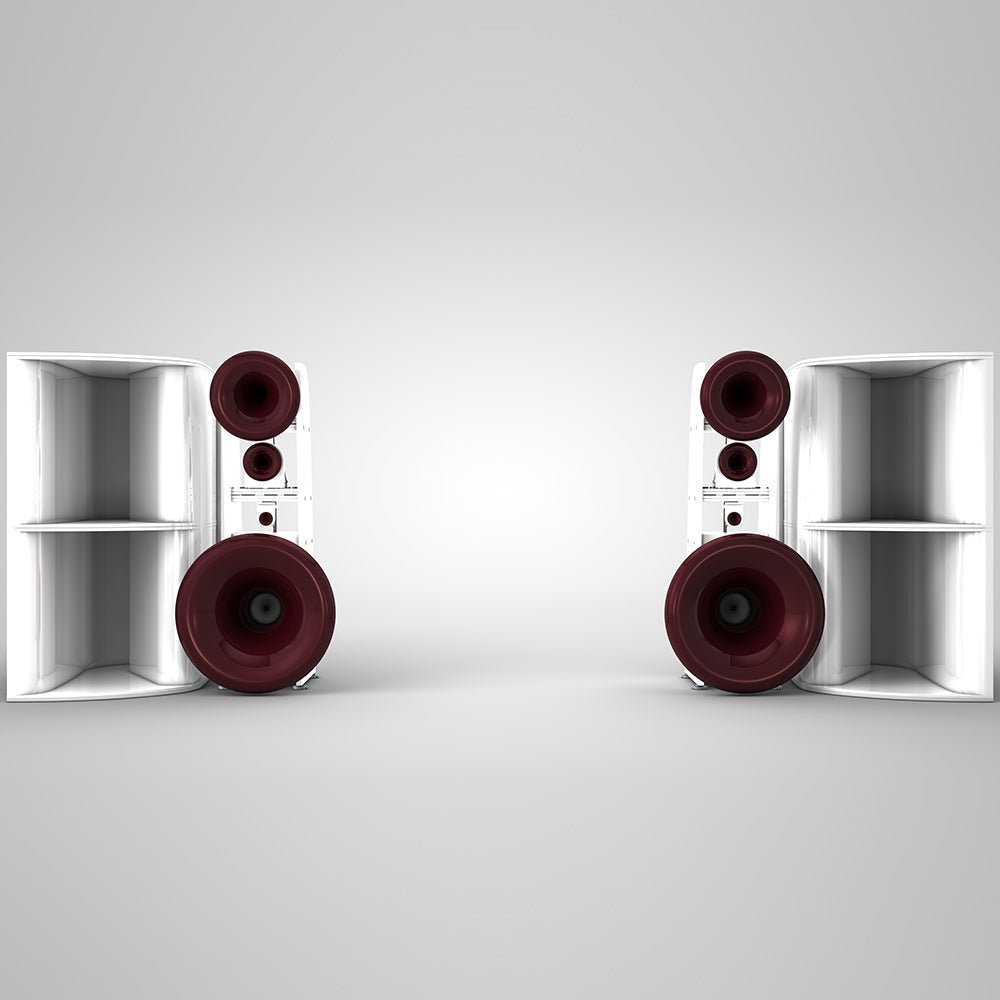

Cessaro Horn Acoustics Gamma II F8 5-Way Horn Loaded Floor Standing Loudspeaker
5-Way Horn Loaded Floor Standing Loudspeaker
THE NEW CESSARO GAMMA II IS WITHOUT PEER. THE ONLY COMPARISON IS LIVE MUSIC
It improves even upon our own Beta II in every area. The Gamma II brings you closer to a concert hall experience than you‘ve ever imagined. Words alone cannot describe what you are about to experience, you must hear the Gamma II for yourself. This model is available in different configurations. We also offer SE versions for any model. These are only available on request to match all customer needs in design, sound and configuration.
The Cessaro Gamma II is a 5-way horn loudspeaker system:
Bass
Eight 16″ bass TAD Alnico units driving a huge frontloaded bass horn, the entire bass section is driven by two special solidstate power amps with huge 1200 W transformers each (special version with up to 8 poweramps, available)
Low-Mid
Spherical composite horn with a bespoke papercone driver and Alnico magnets
Midrange
Spherical composite horn with a 2″ TAD TD-4001 compression driver and beryllium diaphragm
Treble
Spherical composite horn with a 1″ TAD TD-2001 or TD-2002 compression driver and beryllium diaphragm
Super-Treble
Cessaro milled brass horn and modified TAD ET-703 compression driver with cobalt magnet and beryllium diaphragm
Driver
When it comes to drivers our quality standard is the Japanese top manufacturer TAD. Even if TAD drivers are only rarely used nowadays because of their pricing structure, they are without an alternative for the technical realization of our acoustical demands.
TAD drivers with their beryllium diaphragm offer the benefit to react twice as fast as other diaphragm materials. Also it is light and stable like no other material. Because of the rapidity acoustical details can be reproduced, that couldn’t be heard otherwise. Speakers with beryllium diaphragm also react significantly more impulsive.
SPECIFICATIONS
System Type
4-way horn system
Power Handling
60 W
Impedance
8 Ω
Efficiency
105 dB (1 W/1 m)
Max Output
> 124 dB
Frequency Range
30 – 45,000 Hz
Bass Loading
Backloaded or frontloaded horn
Bass Drivers
4 × 16″ alnico or 4 × 18″ field coil
Low-Mid Driver
11″ alnico
Mid Driver
2″ alnico compression driver
Treble Driver
0.5″ cobalt compression driver
Horn Type (Low-Mid)
Spherical horn (composite)
Horn Type (Mid)
Spherical horn (composite)
Horn Type (Treble)
Spherical horn (milled)
Horn Size – Low-Mid
103 cm
Horn Size – Mid
58 cm
Horn Size – Treble
9 cm
Main Unit Dimensions (H×W×D)
176 × 58 × 84 cm
Active Basshorn Dimensions (H×W×D)
105 × 100 × 84 cm
Recommended Power
> 1.5 W
Recommended Amplifier
High-quality and fast amps
Recommended Room Size
> 33 m²
Recommended Listening Distance
> 3.5 m
Weight (Plywood)
750 kg per channel
Weight (Composite)
950 kg per channel
