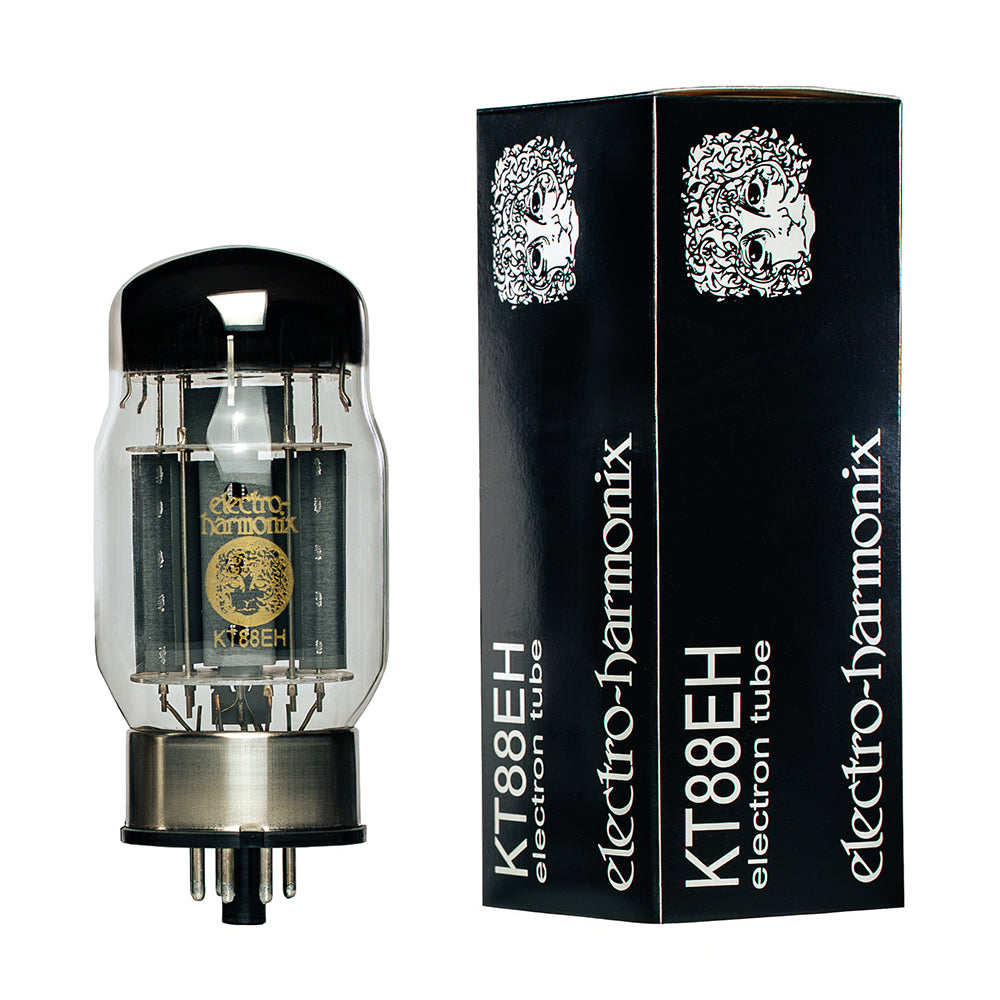

Electro-Harmonix KT88 Matched Quad Set
Electro-Harmonix KT88 Matched Quad Set
Canor

Electro-Harmonix KT88 Matched Quad Set

Consult with Us

Available from

Knox Audio New South Wales Simply HiFi Western Australia Vinyl Revival Victoria HiFi Connoisseur Queensland Magenta Audio South Australia

Precisely selected, quad matched vacuum tubes

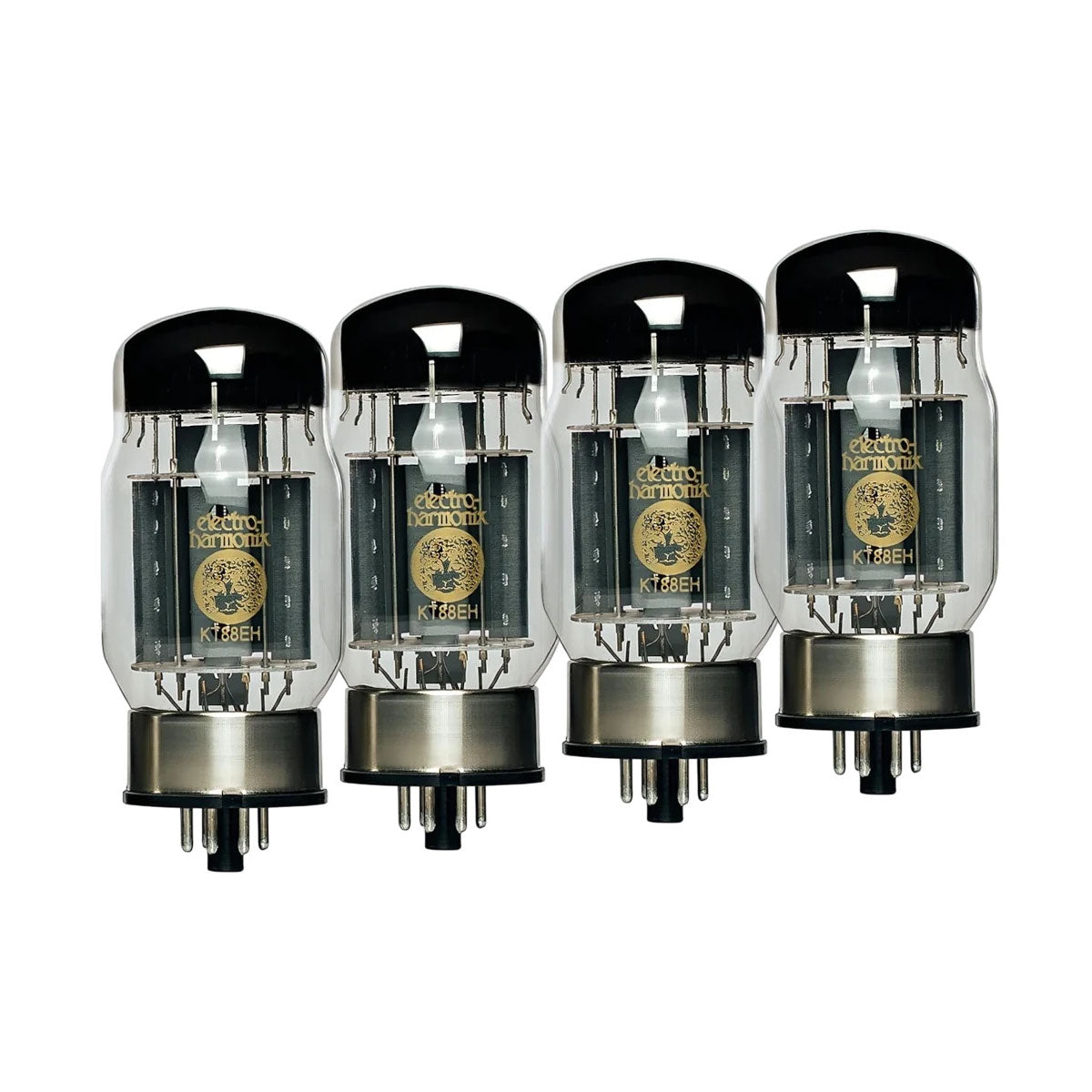

The Electro-Harmonix KT88 Matched Quad Set is a factory-matched set of four current-production KT88 beam power tetrode vacuum tubes. It is widely used in high-end stereo amplifiers, monoblocks, and high-power guitar amplifiers that require four matched output tubes.

Key Features

  • Tube Type: KT88 Beam Power Tetrode
  • Configuration: Factory Matched Quad (4 tubes)
  • Manufacturer: Electro-Harmonix
  • Production: Current production
  • Replacement For: KT88, 6550, and 6550A (when supported by the amplifier and correctly biased)
  • Application: Hi-fi audio amplifiers, monoblocks, integrated amplifiers, and guitar amplifiers

Technical Specifications

Tube Type

KT88 Beam Power Tetrode

Heater Voltage

6.3 V

Heater Current

1.6 A

Plate Voltage (Typical)

400 V

Plate Current (Typical)

90 mA

Screen Grid Voltage

225 V

Screen Grid Current

5 mA

Transconductance

9.5 mA/V

Input Capacitance

18.5 pF

Output Capacitance

12.5 pF

Transfer Capacitance

1.1 pF

Maximum Cathode-Heater Voltage

+300 V / -200 V

Dimensions

Approximately 125 mm height × 52 mm diameter
Electro-Harmonix KT88 Matched Quad Set
Electro-Harmonix KT88 Matched Quad Set
