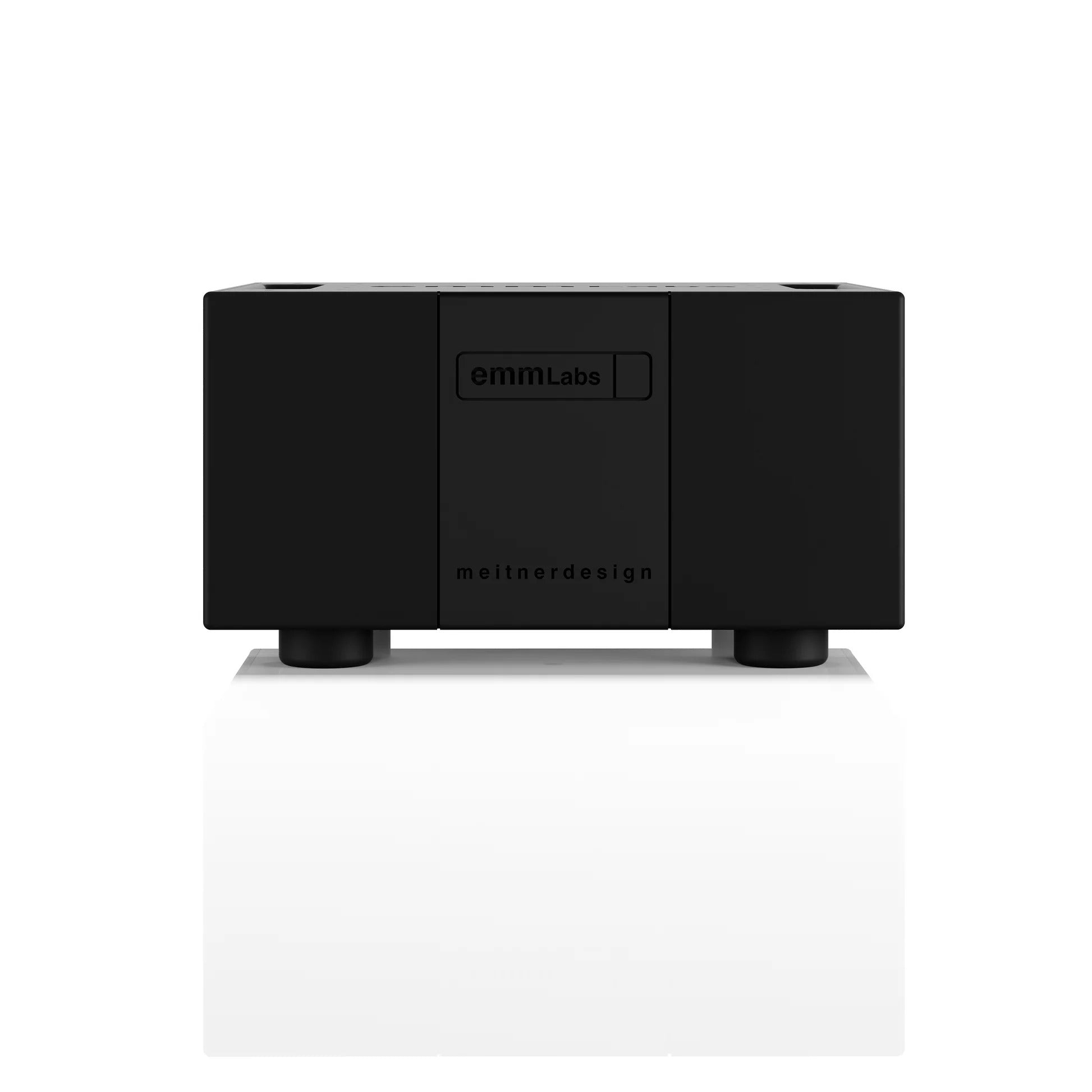

EMM Labs MTRS Stereo Power Amplifier
EMM Labs is proud to present its latest innovation in audio technology: the MTRS Stereo Amplifier. The MTRS is a 400W Stereo Class A/B solid-state amplifier.
The MTRS is able to drive the most severe loads with no overall feedback, using Ed’s completely re-designed high current Meitner Power Driver. The MTRS can handle any speaker load with ease, delivering high power, low distortion and wide bandwidth.
The MTRS also incorporates:
- A new proprietary power system
- Fully discrete circuits
- Fully balanced audio paths throughout
- Our custom ceramic PCB boards
- Real time protection to avoid speaker and amplifier damage
The MTRS has been meticulously designed, from its short and fully balanced audio paths throughout, to its proprietary power systems and beautifully finished chassis.
The MTRS is completely stable driving difficult, complex loads, and has the uncanny ability to drive low impedance speakers down to an Ohm! All while keeping distortion at miniscule levels.
The MTRS is the ultimate amplifier for those who demand the best in audio reproduction in a stereo package.
Just like our reference MTRX and MTRX2 amplifiers, the MTRS Stereo Amplifier is designed, manufactured, and built in Canada with no compromise.
FEATURES
- A new proprietary power system
- Fully discrete circuits
- Fully balanced audio paths throughout
- Our custom ceramic PCB boards
- Real time protection to avoid speaker and amplifier damage
POWER SUPPLY
- 100/115/240V, 50/60Hz (Factory Set)
- 30A 250V 3-pin, IP44, IEC60309 type power inlet
- Custom Kimber Kable 30A Power Cable
- Custom EMM Labs Flight Case
Product Specifications
Power / Channel (4Ω)
400W Dynamic (RS-490 EIA) 330W RMS Continuous
Voltage Gain
30 dB
Frequency Response
0.1 Hz – 200 kHz (Full Rated Power)
Signal to Noise
> 120 dB (A Weighted)
THD+N
< 0.01% (20 Hz–20 kHz, Full Rated Power)
IMD
< 0.01% (20 Hz–20 kHz, Full Rated Power)
Slew Rate
> 100 V/μS
Damping Factor
> 200

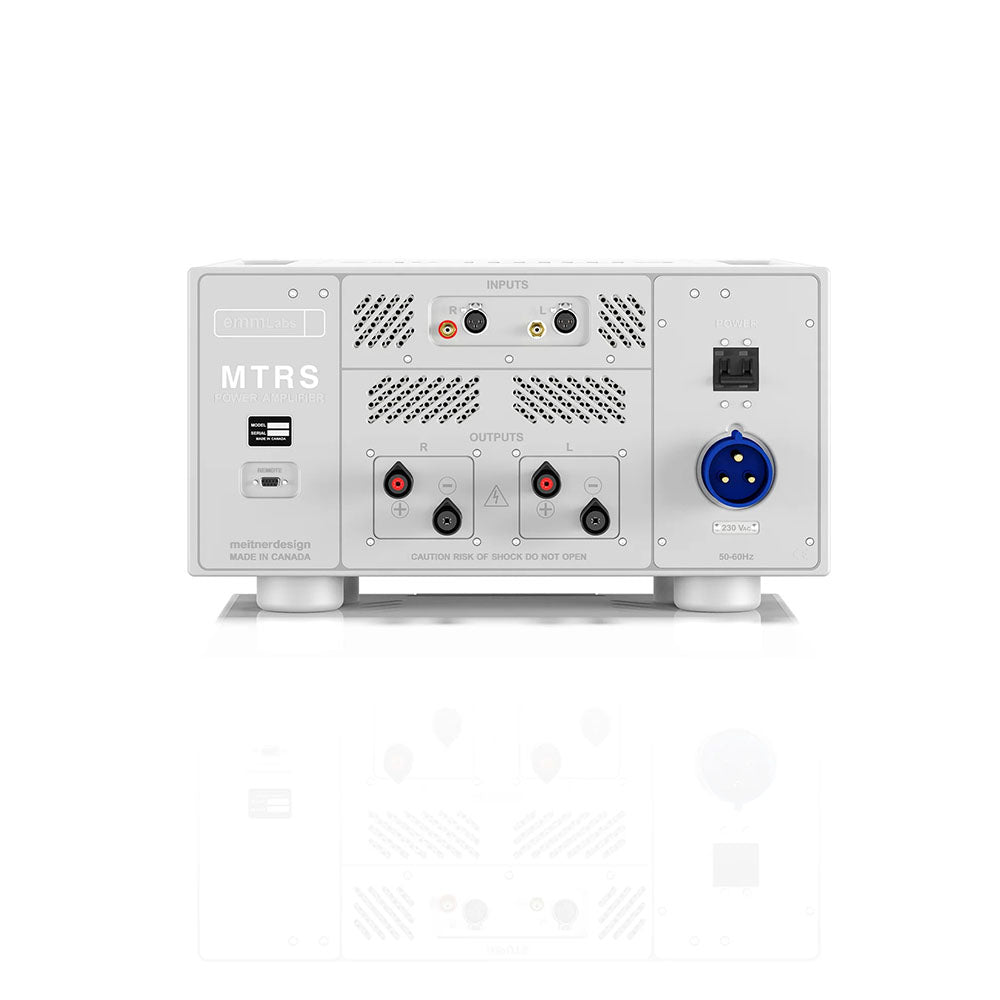

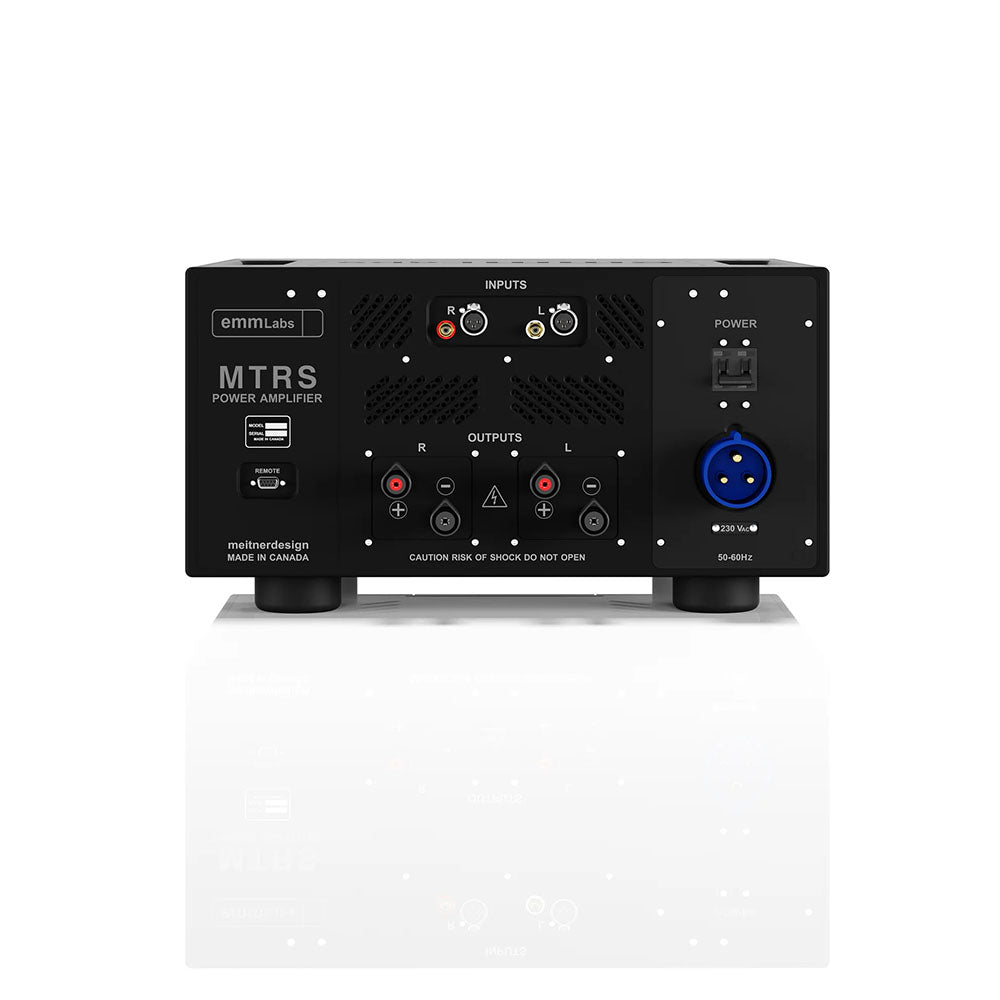

Inputs
Left & Right Balanced (XLR) Left & Right Unbalanced (RCA)
Input Impedance
100 kΩ Balanced (XLR) 47 kΩ Unbalanced (RCA)
Outputs
Left & Right Sets of Furutech Binding Posts
System
RS-232 Communication Port
Power & Accessories
100/115/240V, 50/60Hz (Factory Set) 30A 250V 3-pin, IP44, IEC60309 type power inlet Custom Kimber Kable 30A Power Cable Custom EMM Labs Flight Case
Amplifier Dimensions (W × D × H)
544 × 584 × 297 mm
Amplifier Weight
82 kg
Finish
Silver and Black Ultrafine CNC Precision Finish Black insert and power button
