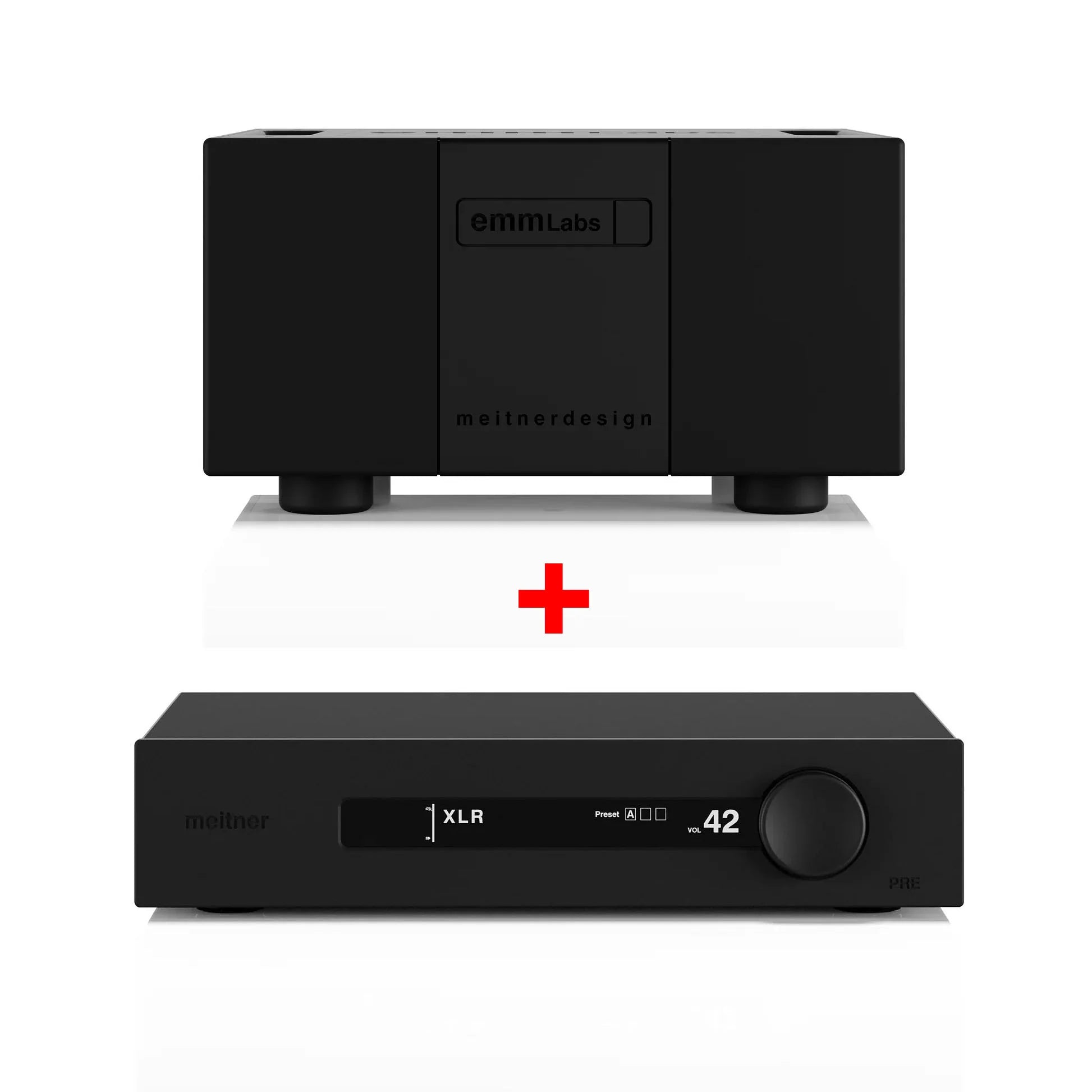

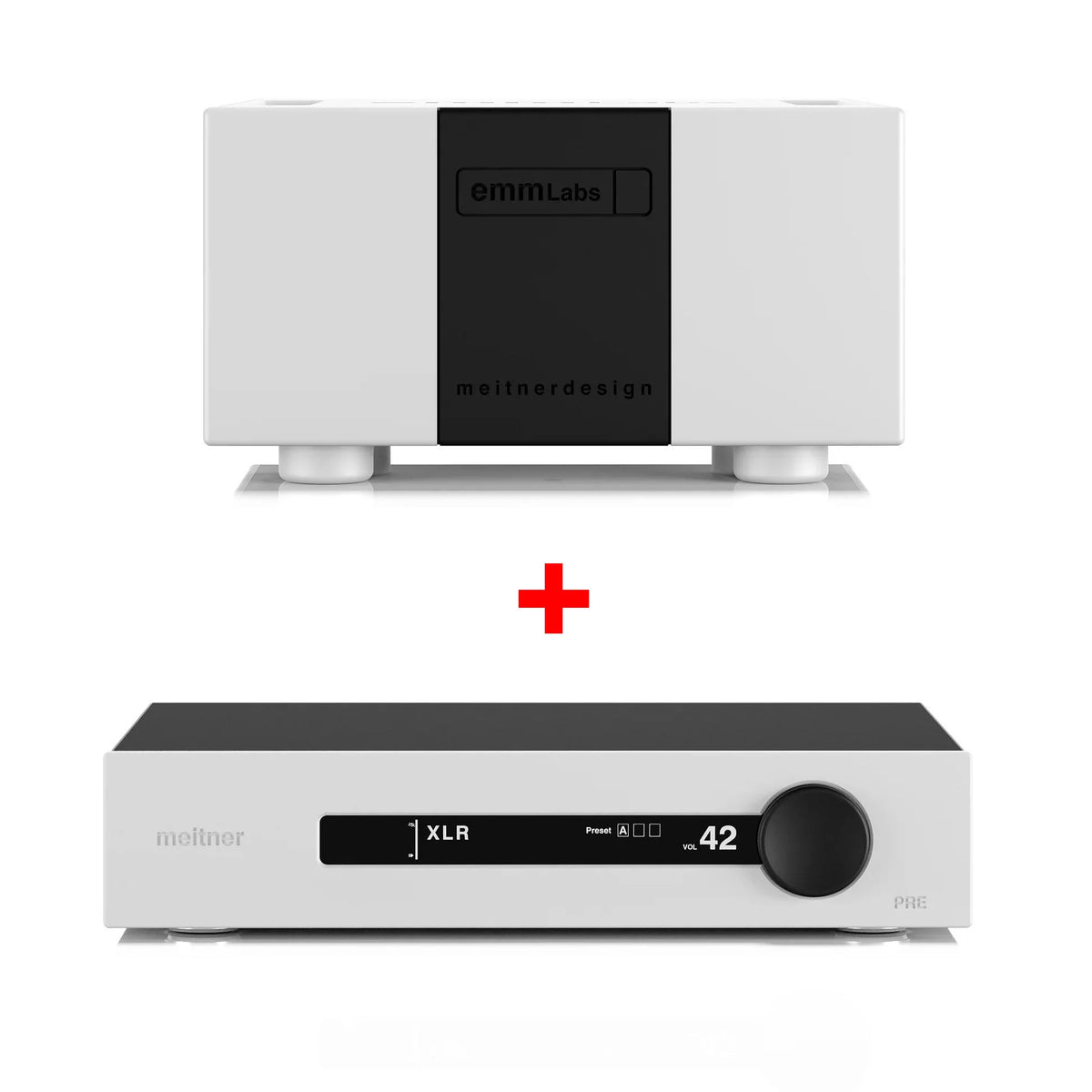

EMM-MTRS+PRE Bundle

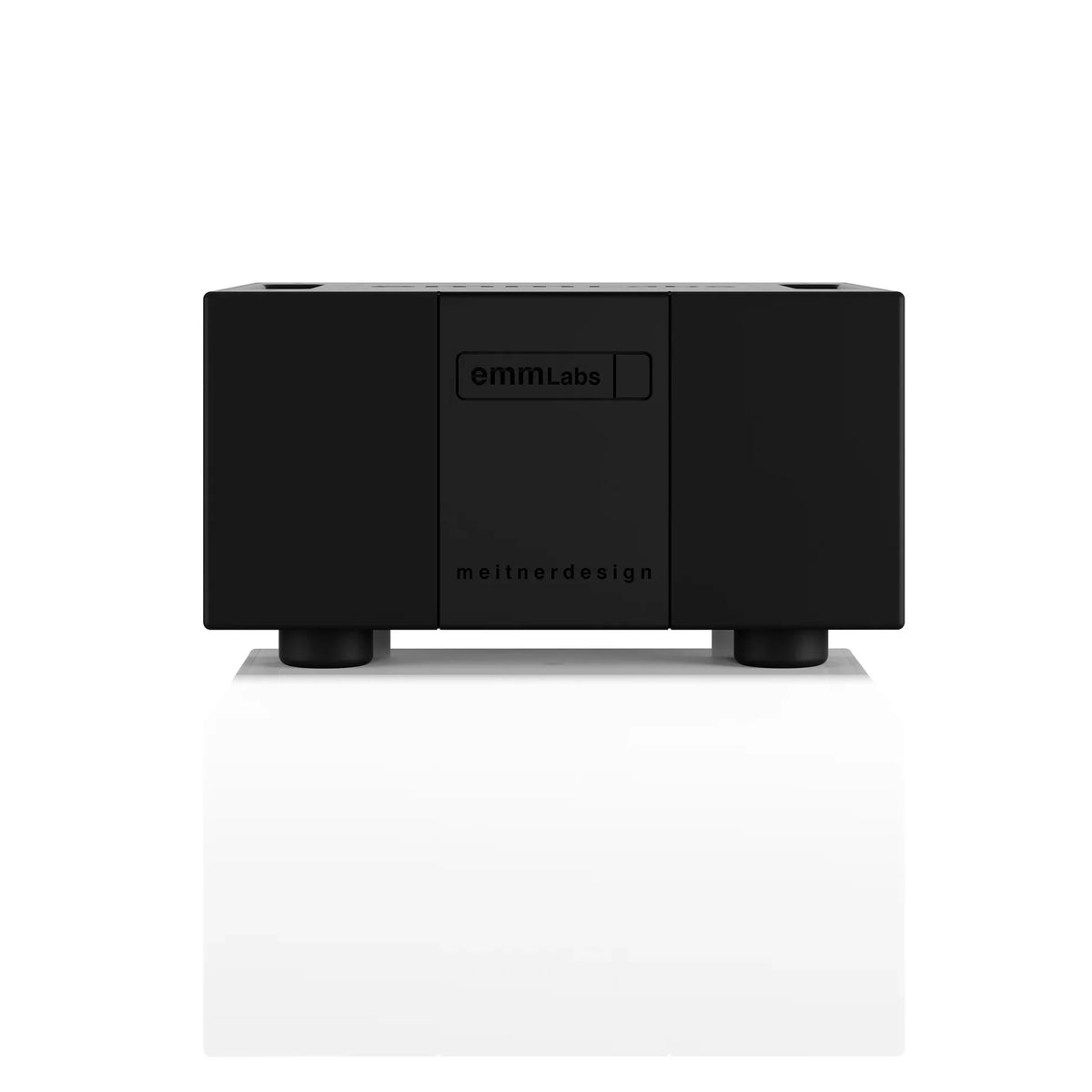

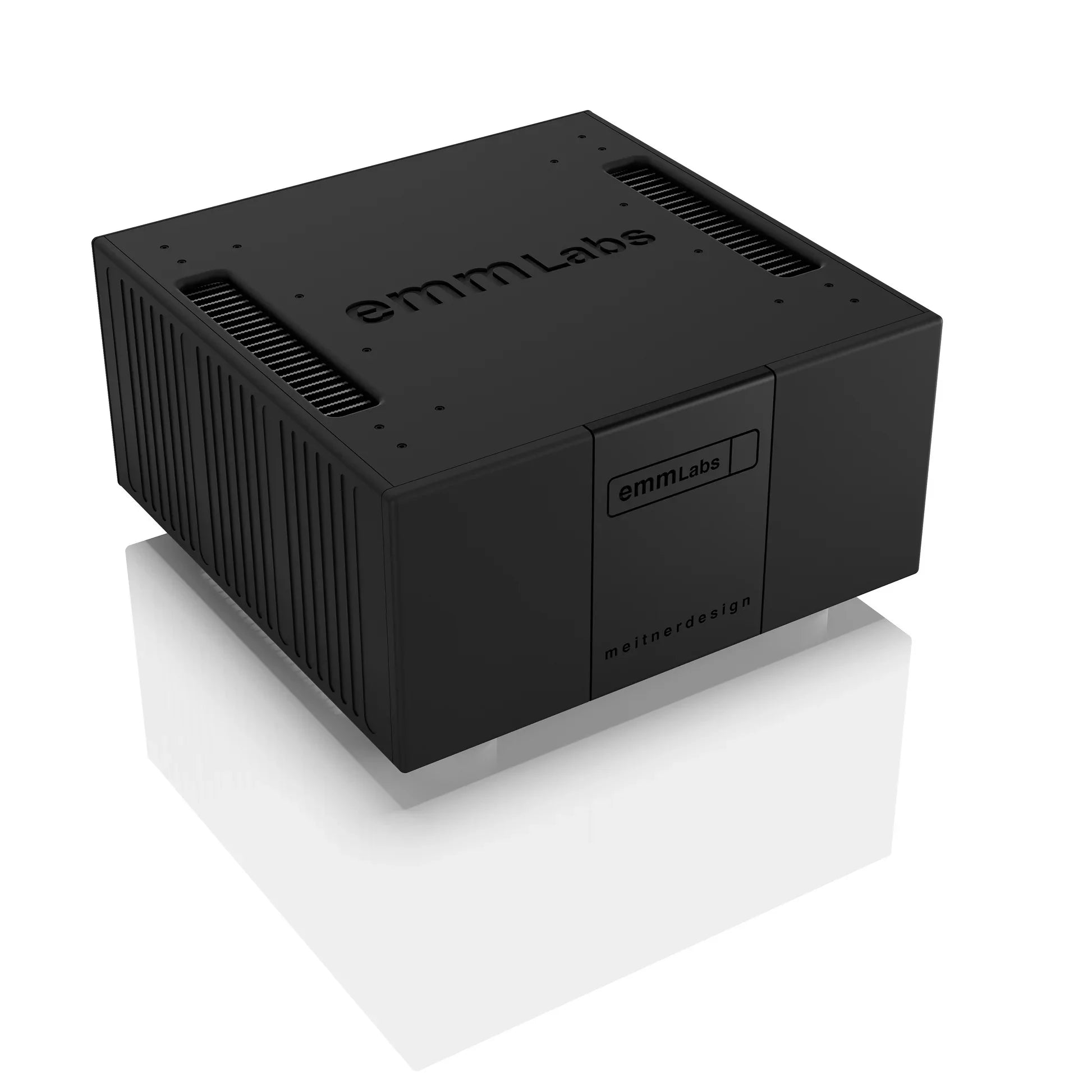

EMM Labs MTRS Stereo Amplifier
Available at your local distributor & EMM Labs
EMM Labs is proud to present its latest innovation in audio technology: the MTRS Stereo Amplifier. The MTRS is a 400W Stereo Class A/B solid-state amplifier.
The MTRS is able to drive the most severe loads with no overall feedback, using Ed's completely re-designed high current Meitner Power Driver. The MTRS can handle any speaker load with ease, delivering high power, low distortion and wide bandwidth.
The MTRS also incorporates:
- A new proprietary power system
- Fully discrete circuits
- Fully balanced audio paths throughout
- Our custom ceramic PCB boards
- Real time protection to avoid speaker and amplifier damage
The MTRS has been meticulously designed, from its short and fully balanced audio paths throughout, to its proprietary power systems and beautifully finished chassis.
The MTRS is completely stable driving difficult, complex loads, and has the uncanny ability to drive low impedance speakers down to an Ohm! All while keeping distortion at miniscule levels.
The MTRS is the ultimate amplifier for those who demand the best in audio reproduction in a stereo package.
Just like our reference MTRX and MTRX2 amplifiers, the MTRS Stereo Amplifier is designed, manufactured, and built in Canada with no compromise.
KEY FEATURES
- A new proprietary power system
- Fully discrete circuits
- Fully balanced audio paths throughout
- Our custom ceramic PCB boards
- Real time protection to avoid speaker and amplifier damage
POWER SUPPLY
- 100/115/240V, 50/60Hz (Factory Set)
- 30A 250V 3-pin, IP44, IEC60309 type power inlet
- Custom Kimber Kable 30A Power Cable
- Custom EMM Labs Flight Case
Meitner PRE Stereo Preamplifier
The Meitner PRE preamplifier is designed with Ed Meitner’s philosophy that an analog preamp acts as the heart of every music system.
Built on the heritage of the reference EMM Labs preamplifier, the Meitner PRE incorporates a contactless switching system and discrete dual-balanced signal paths. Its proprietary software-driven analog volume control ensures zero signal bandwidth degradation over the entire volume range, while its pure class-A power stage can effortlessly drive cables and loads. With a high-efficiency, low-noise power supply system, the Meitner PRE delivers class-beating performance that will keep you listening to your music collection well beyond curfew.
Our team is committed to designing products that enhance user enjoyment while providing a secure listening experience. The Meitner PRE exemplifies this with its user-friendly balance control and volume preset system, and by providing DC protection to the rest of the system. It is this philosophy that has earned us our customers' continued loyalty.
The Meitner PRE has 3 pairs of stereo analog inputs:
- 1 pair balanced (XLR)
- 2 pairs single-ended (RCA)
along with two pairs of stereo outputs:
- 1 pair balanced (XLR)
- 1 pair single-ended (RCA)
Both balanced and single-ended outputs can be utilized at the same time for versatile configurations such as connecting the balanced outputs to the main amplifier and the single-ended outputs to a subwoofer or headphone amplifier.
- The Meitner PRE preamplifier upholds the Meitner legacy of being a class-defining value proposition, with its surprising performance and even more surprising price point.
KEY FEATURES
- 3 pairs of stereo analog inputs: 1 pair balanced, 2 pairs singleended
- 2 pairs of stereo analog outputs: 1 pair balanced, 1 pair singleended
- Contactless switching
- Discrete signal paths
- Pure classA power to drive cables and loads without degradation
- Proprietary softwaredriven analog volume control
- Userfriendly control system featuring 3 volume presets per inputs and balance control
- Highefficiency power supply for silent and ecofriendly operation
- DC protection circuit
- RS232 interface for system upgrades and remote commands
POWER SUPPLY
- Power factor corrected
- Universal 90V-260V, 50/60Hz
- Power consumption: max. 50W
- CE Approved
MTRS SPECIFICATIONS
Power/Channel into 4Ω:
400W Dynamic (RS-490 EIA)
330W RMS Continuous
Voltage Gain:
30dB
Frequency Response:
0.1Hz - 200kHz (Full Rated Power)
Signal to Noise:
Greater than 120dB (A Weighted)
THD+N :
Less than 0.01% (20Hz-20kHz, Full Rated Power)
IMD:
Less than 0.01% (20Hz-20kHz, Full Rated Power)
Slew Rate:
Greater than 100V/μS
Damping Factor:
Greater than 200

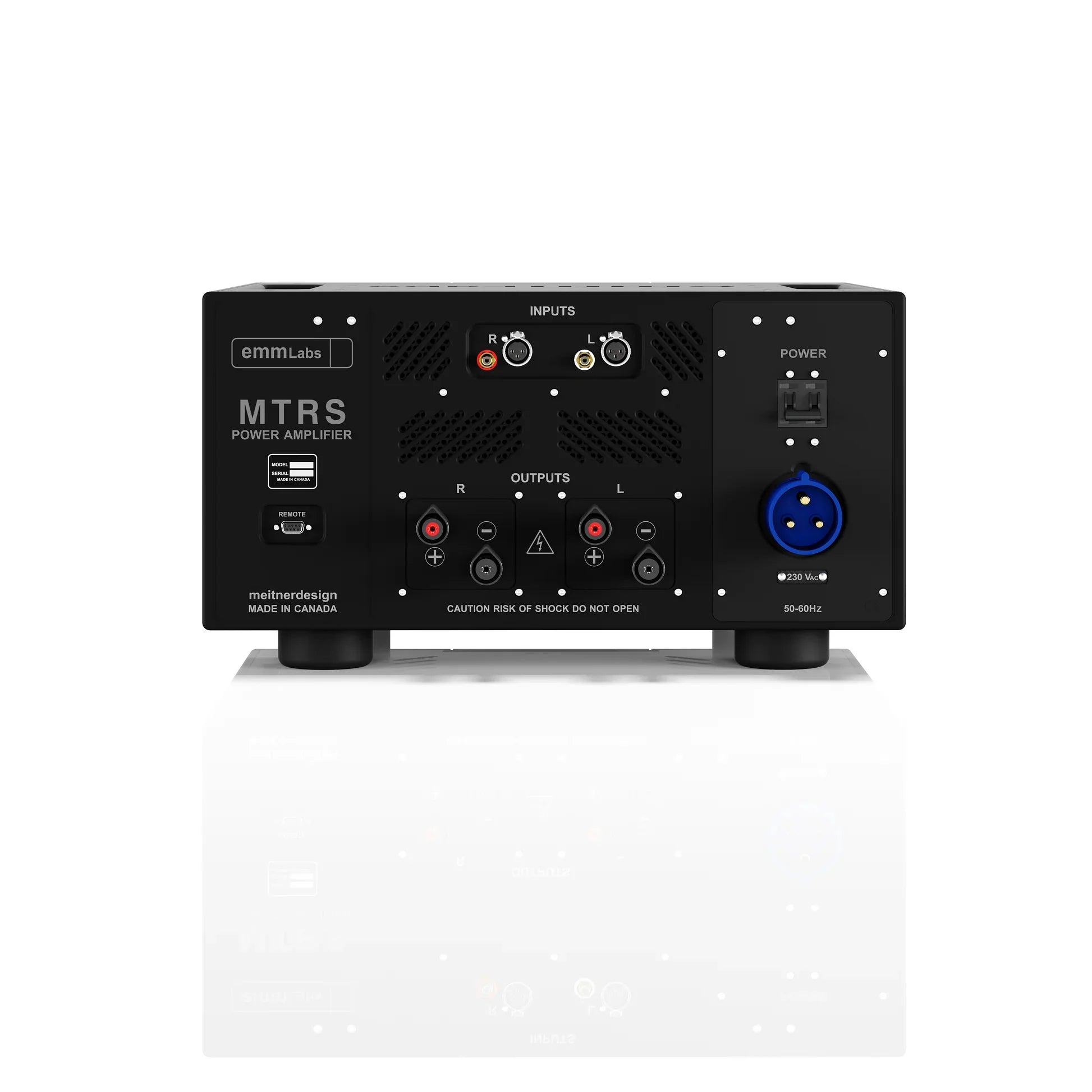

Inputs:
Left and Right Balanced (XLR)
Left and Right Un-balanced (RCA)
Input impedance:
100kΩ Balanced (XLR)
47kΩ Un-balanced (RCA)
Outputs:
Left and Right Sets of Furutech Binding Posts
System:
RS-232 Communication Port
Amplifier Dimensions (WxDxH):
544 x 584 x 297 mm
Amplifier Weight
: 82kg
PRE SPECIFICATIONS
Digital inputs:
AES/EBU, S/PDIF COAX, TOSLINK, USB Audio and Network(RJ45) supports up to 24bit/192kHz and DSD
USB Audio also supports 2xDSD, DXD (352/384kHz) & full MQA® decoding
Network(RJ45) also supports full MQA® decoding
Stereo Analog Outputs:
Balanced (XLR)
Unbalanced (RCA)
Output voltage:
XLR outputs: 6.0V (+17.8.0dBu)
RCA outputs: 3.0V (+11.8dBu)
Output impedance:
300Ω balanced (XLR)
150Ω unbalanced (RCA)
Dimensions (W x D x H:):
435 x 400 x 92mm / 17.13 x 15.75 x 3.62in
Weight:
7.43kg / 16.39lbs net (with remote control)
Finish:
Fine bead blasted front panel available in silver or black
Designed and Manufactured in Canada
