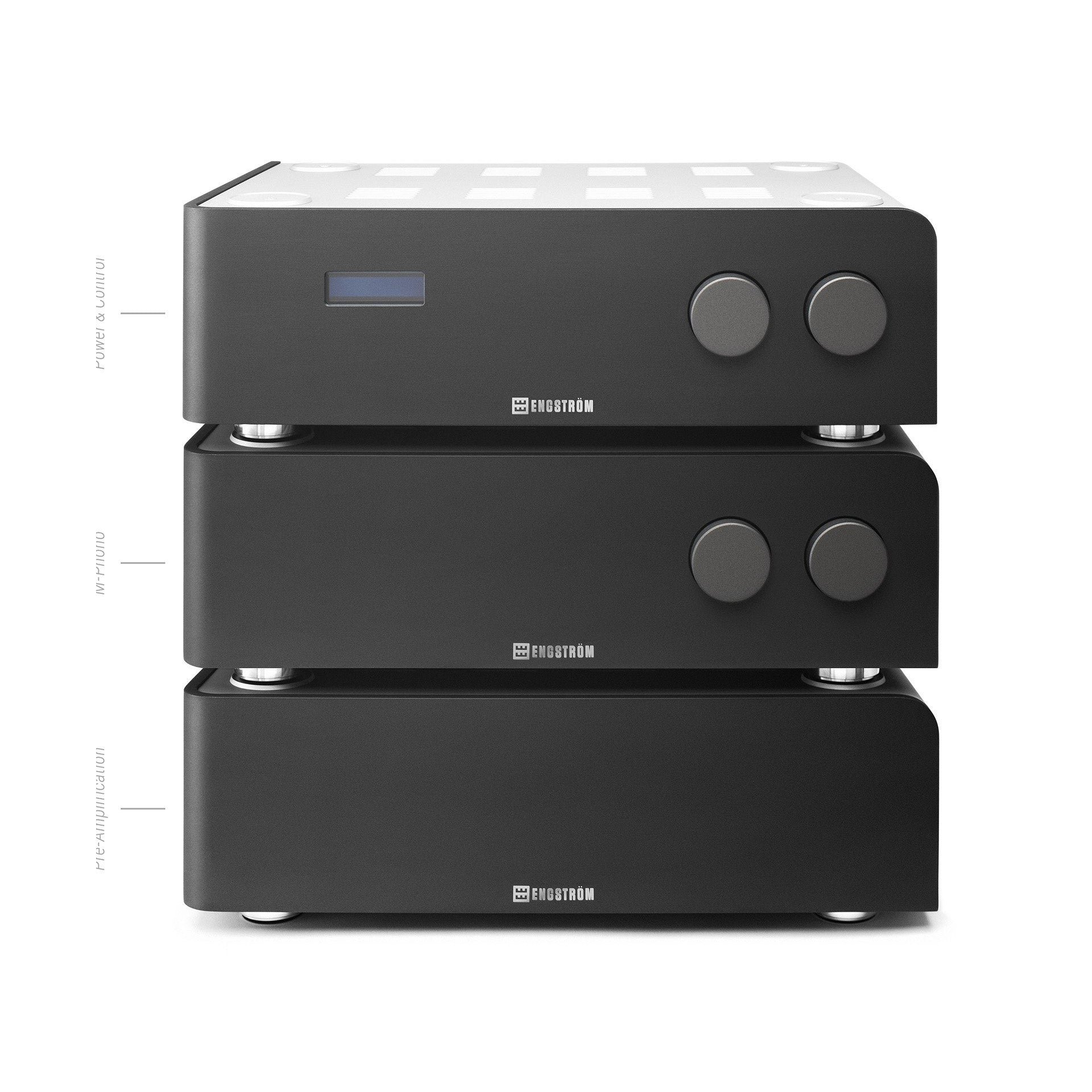

Engström M-Phono

Variant:

M-Phono I Custom Colour I M-Phono II Custom Colour II

Variant

Available from

HeyNow HiFi Victoria Knox Audio New South Wales HiFi Connoisseur Queensland AG Lifter New Zealand Magenta Audio South Australia

As the third chassis complementing the MONICA line-stage, M-Phono is the MM/MC phono-pre-amp. Integrated into the original MONICA pre-amplifier in 2014, it is now a standalone product allowing the phono and line-stage to reach their full potential.

M-PHONO TECH SPECS

INPUTS:

MM 10mV load 47kΩ

MC 1mV load 100, 200, 300, 500, 750, 1500

Ω-switch on back

AMPLIFICATION:

MM 40dB

MC 60dB

OUTPUT AT 1kHz

1V THD 0,6%

3V THD 1.5%

OUTPUT IMPEDANCE

at 1kHz 100Ω

at 20Hz 300Ω

DIMENSIONS (WxDxH):

480 x 300 x 150

HUM:

50Hz -60dBV

NOISE:

>200Hz -100dBV

TUBES:

2 x E88CC

2 x E182CC

MAINS POWER:

115V / 230V

50Hz – 60Hz, 34VA

MAINS FUSE:

230V 1,6 A slow

115V 3,15A slow

WEIGHT:

15kg

Engström M-Phono
