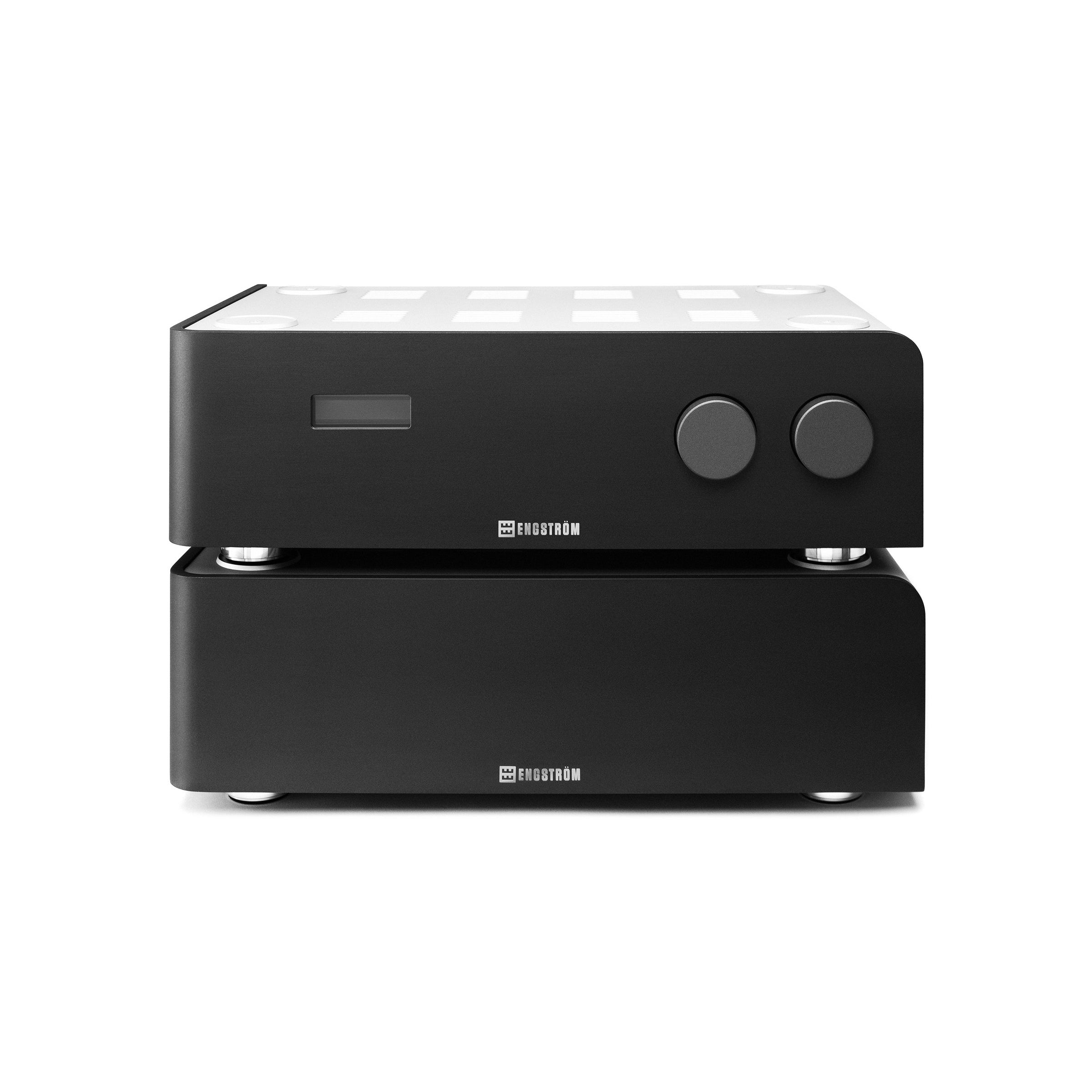

Engström MONICA Mk3 Pre-Amplifier
MONICA Mk3 Pre-Amplifier
Named after one of Sweden’s favorite singers, MONICA is a fully balanced and perfectly matching pre-amplifier for LARS, ERIC and even ARNE for an extra boost or desired bi-amping. Inside its simple design are best-in-class components and a lifetime of engineering experience.
With six inputs for each channel (three balanced XLR and three unbalanced RCA connectors) and four outputs for each channel (two balanced XLR and two un-balanced RCA) MONICA works in harmony with your sound system.
MONICA features a fully balanced line stage and no negative feedback is used in the creation of its pure, distinct sound.
The core of the circuit is a unique two-totem-pole design in a balanced configuration, with four triode elements in each channel. Using a clever layout to separate the pure signal processing from the dirty components.
MONICA PRE-AMP TECH SPECS
INPUTS:
3 balanced XLR,
3 unbalanced RCA
INPUT IMPEDANCE:
40kΩ; All inputs
transformer-coupled
MAXIMUM PEAK INPUT LEVEL:
12V
OUTPUTS:
2 balanced XLR,
2 unbalanced RCA
OUTPUT IMPEDANCE:
XLR, 75Ω @1kHz
400Ω @20Hz;
RCA, impedance 43Ω @1kHz,
80Ω @20Hz
OUTPUT VOLTAGE:
2V
MAXIMUM PEAK OUTPUT LEVEL:
10V
TUBES IN POWER SUPPLY:
1 x 6080WC,
1 x ECC83
TUBES IN SIGNAL PATH:
4 x 5687WA
or
4 x E182CC
CHANNEL SEPARATION:
90dB at 10kHz
AMPLIFICATION:
6dB
FREQUENCY RESPONSE:
+0/-3dB, 10Hz to 40kHz
MAINS POWER:
115V / 230V
50Hz – 60Hz, 85VA
THD+N:
0.03% at 10V RMS output
NOISE:
-120dBv
DIMENSIONS (WxDxH):
2 units both equal
480 x 300 X 150mm
WEIGHT:
2 x 15kg
VOLUME CONTROL:
-64dB to -33dB in 2dB steps
-32dB to 0dB in 1dB steps
Reverse phase toggle switch
on the back, one per channel
Ground toggle switch on the
back, one per RCA-input
