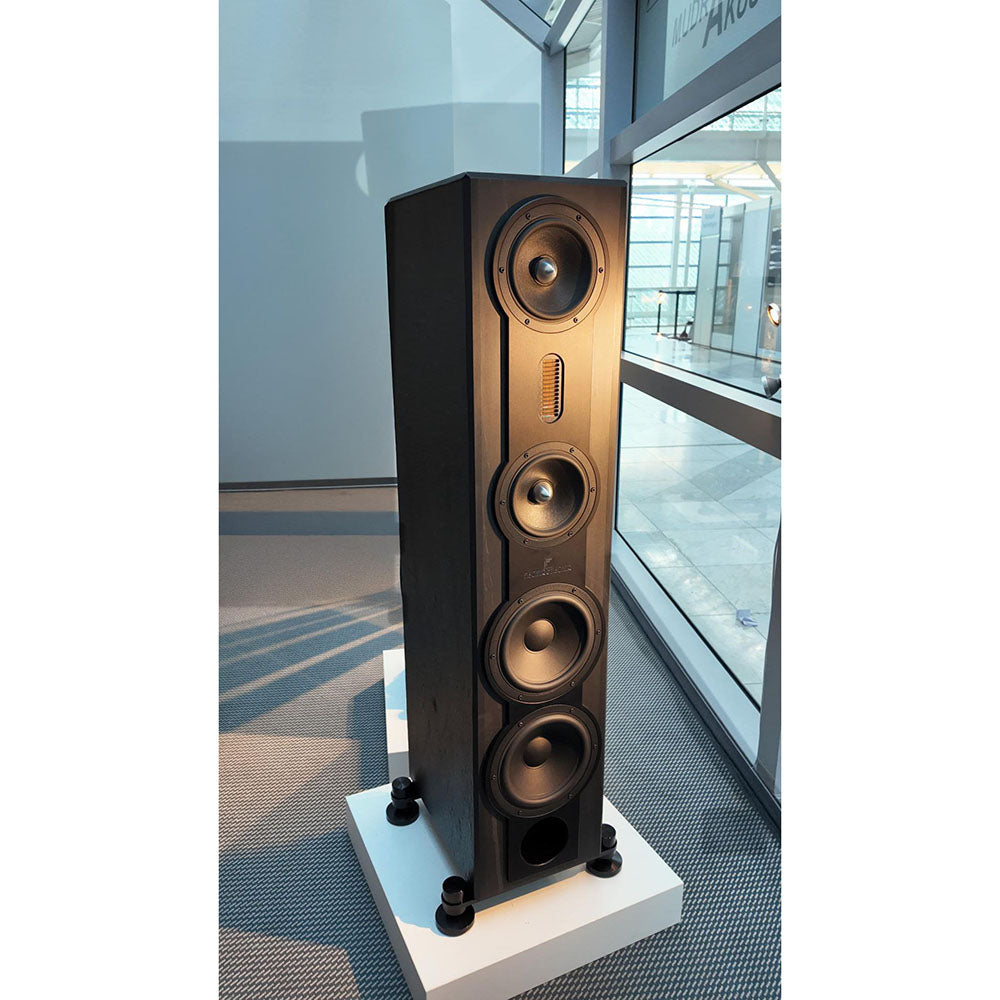

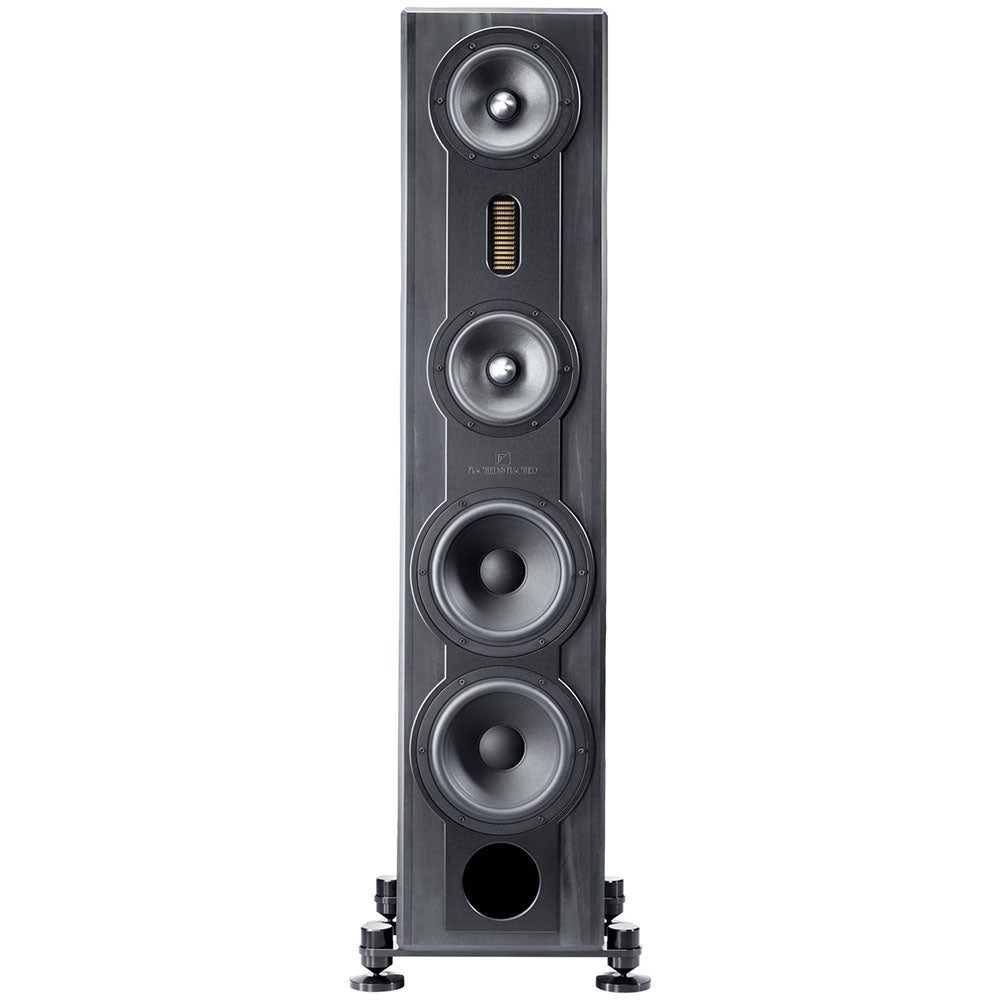

Fischer & Fischer SN570M 3-Way Bi-Wired Floor Standing Loudspeaker
Fischer & Fischer floor standing loudspeakers have an elegant, luxurious and compact appearance. Due to their unique use of natural slate for their cabinets and very high quality drivers, including Air Motion Transformer (AMT) high frequency units made by Mundorf, they have an accurate, extended, full-bodied sound with realism, dynamics and natural presence. As you move up the range, the models use more drive units, higher quality crossover networks and more elaborate de-coupled cabinet designs, resulting in greater resolution, scale, efficiency and sonic sophistication. A highly accomplished, highly enjoyable German made destination loudspeaker system.
Product Specification
Frequency response (+/- 3 dB)
24 – 27000 Hz
Impedance
4 ohms
Sensitivity
92 dB (1 W / 1 m)
Max. acoustic pressure
112 dB
Frequency dividing network
1st + 2nd order phase and impedance corrected filter. Optimized, selectively separated crossovers
Function principle
bass reflex
Bass system
two 220 mm FISCHER & FISCHER cone speakers with carbon paper foam sandwich membrane
Midrange system
two 180 mm FISCHER & FISCHER cone speakers with carbonized paper, carbon foil sandwich membrane and aluminium phaseplug
Treble system
one FISCHER & FISCHER Air Motion Transformer (AMT) special custom made by Mundorf

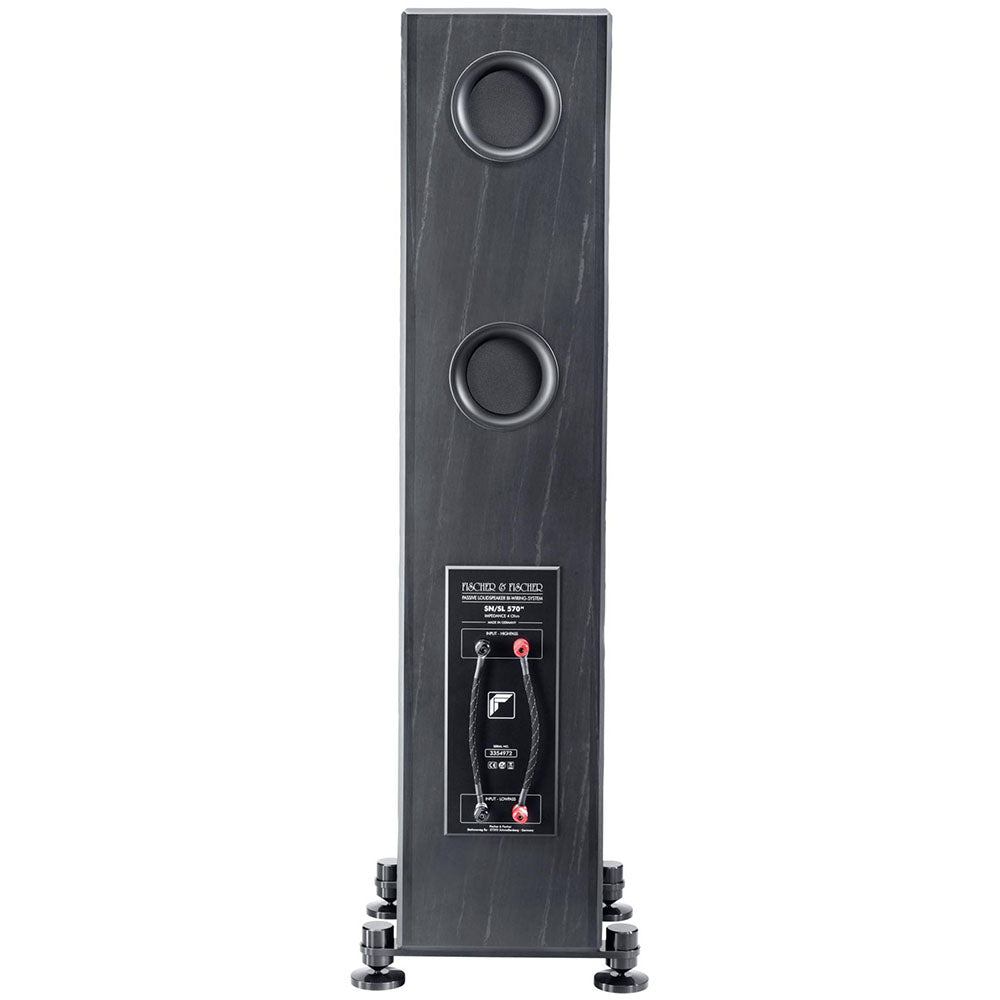

Connecting terminal
Bi-wiring, 63 A connecting terminals, rhodium plated

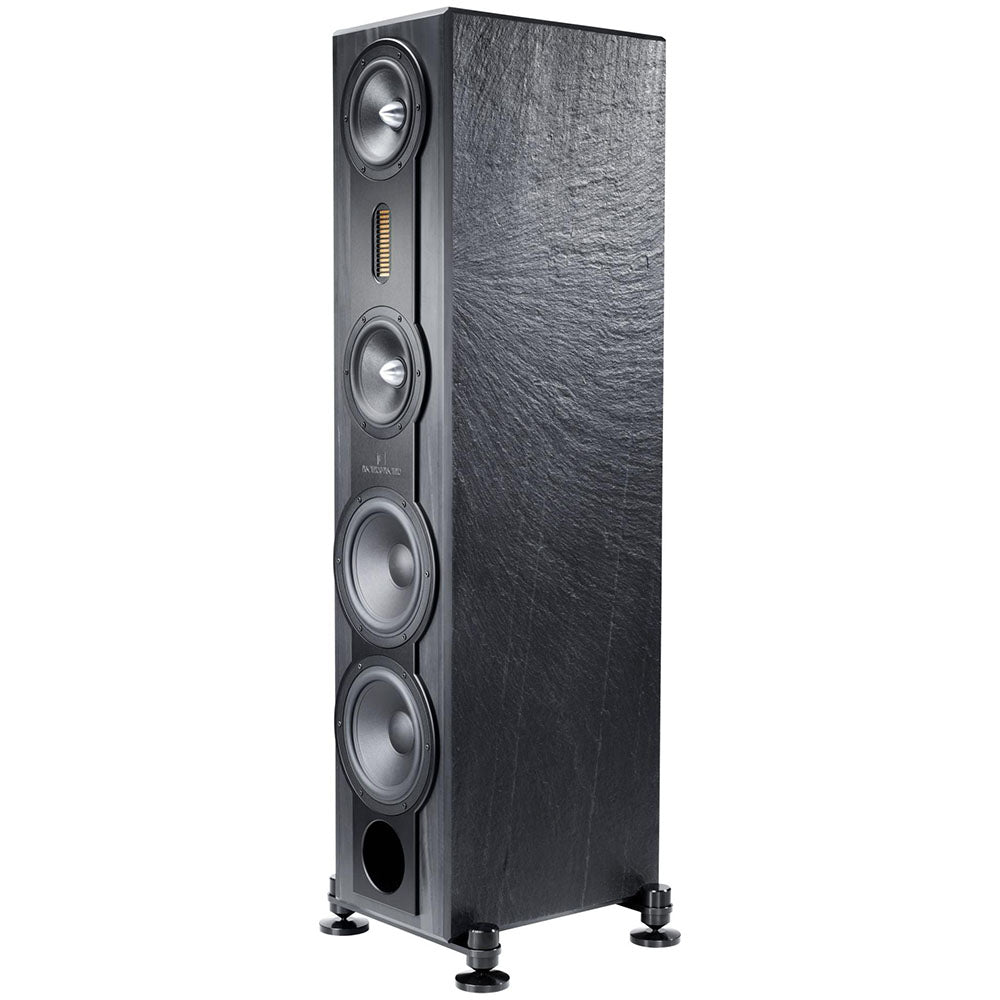

Cabinet material
20 / 23 mm thick low resonance natural slate
Floor system
aluminium, black or silver anodized, levelable
Dimensions slate cabinet (H x W x D)
1245 x 275 x 400 mm
All over dimensions, incl. floor system
1290 x 380 x 455 mm
Weight
115 kg
