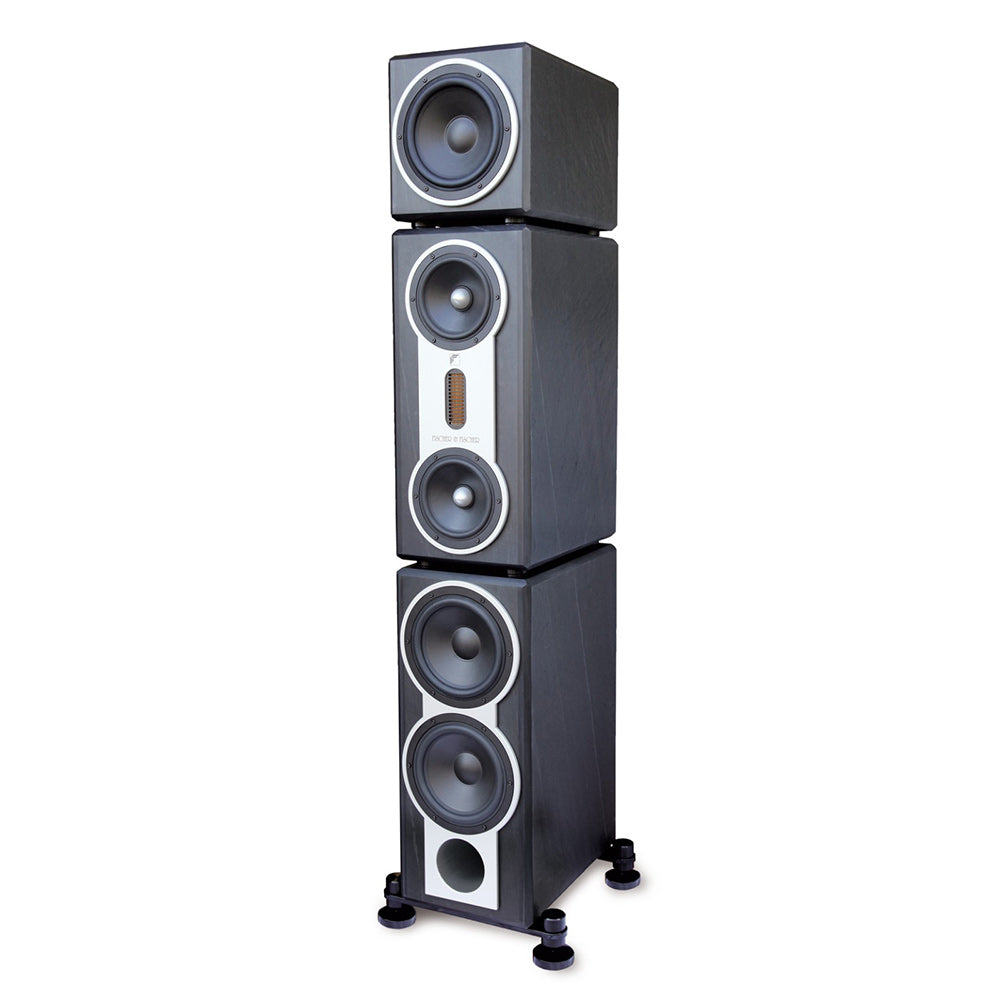

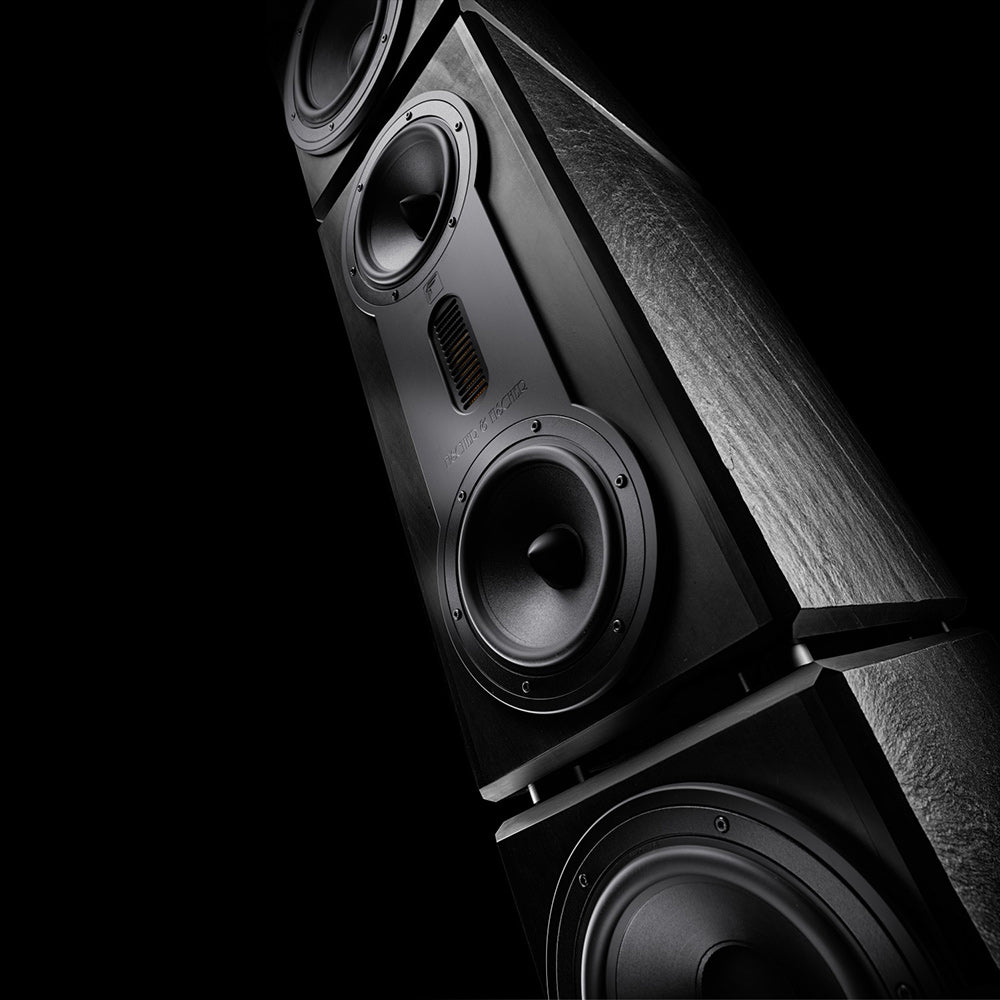

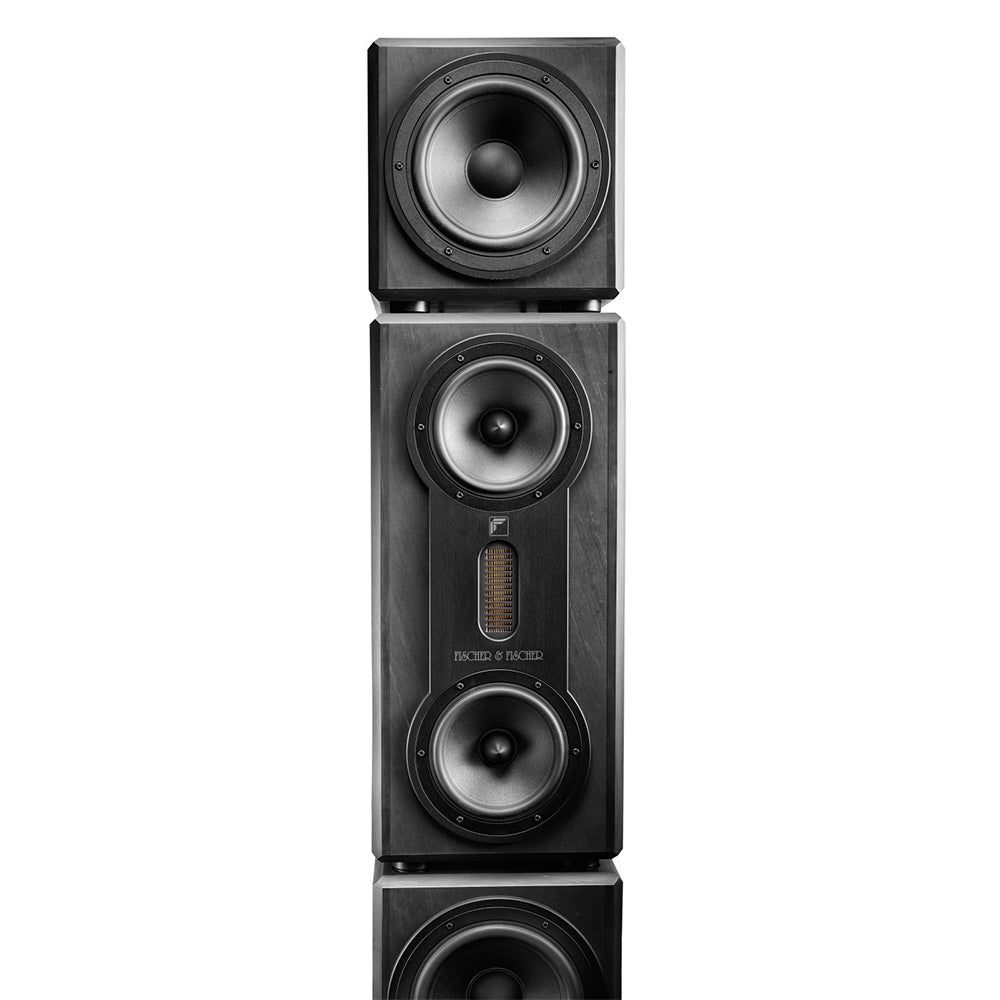

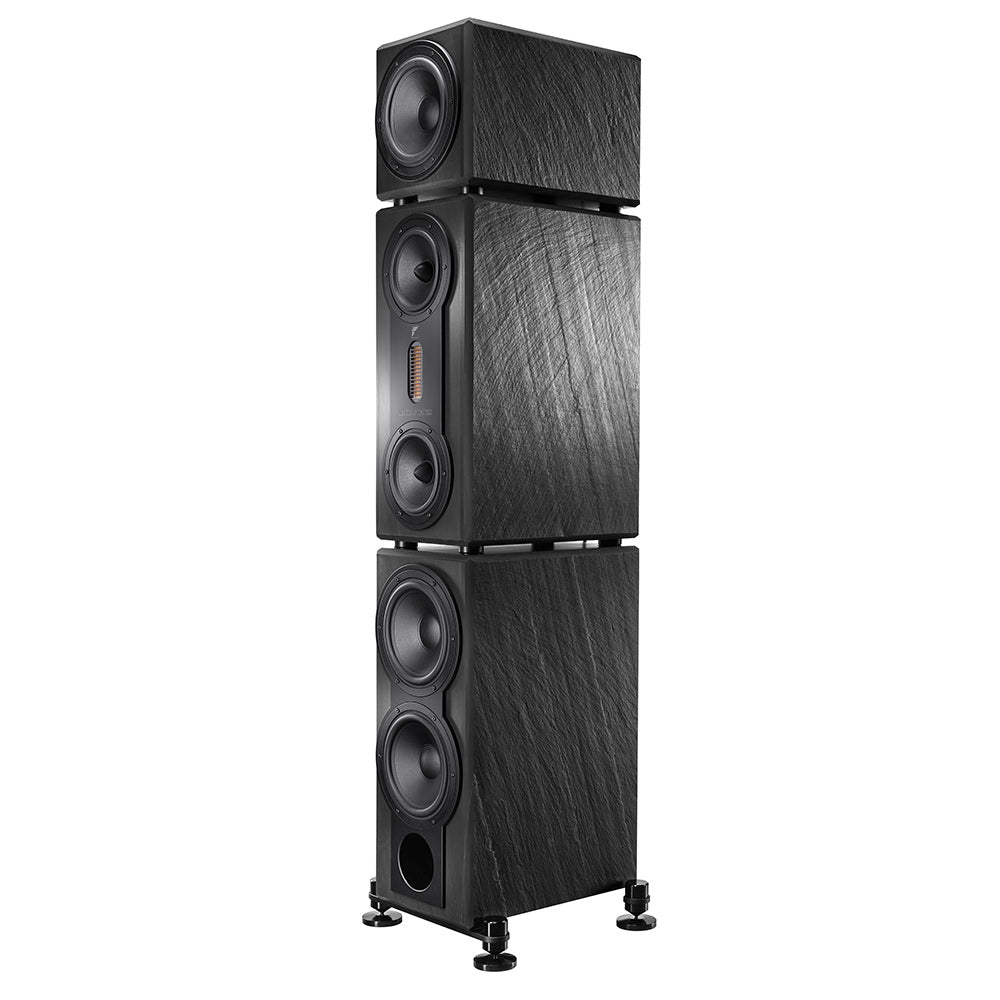

Fischer & Fischer SN770.1AMT 4-Way Tri-Wired Floor Standing Loudspeaker
Fischer & Fischer floor standing loudspeakers have an elegant, luxurious and compact appearance. Due to their unique use of natural slate for their cabinets and very high quality drivers, including Air Motion Transformer (AMT) high frequency units made by Mundorf, they have an accurate, extended, full-bodied sound with realism, dynamics and natural presence. As you move up the range, the models use more drive units, higher quality crossover networks and more elaborate de-coupled cabinet designs, resulting in greater resolution, scale, efficiency and sonic sophistication. A highly accomplished, highly enjoyable German made destination loudspeaker system.
Product Specification
Frequency response (+/- 3 dB)
24 – 27,000 Hz
Impedance
4 ohms
Sensitivity
92.5 dB (1 W / 1 m)
Max. Acoustic Pressure
115 dB
Crossover network
1st and 2nd order phase and impedance corrected filter
Design Principle
Bass Reflex
Subwoofer System
Two 220mm FISCHER & FISCHER cone drivers with carbon paper & foam sandwich membrane
Bass System
One 220mm FISCHER & FISCHER cone driver with carbon paper & foam sandwich membrane
Midrange System
Two 180mm FISCHER & FISCHER cone drivers with carbonized paper, carbon foil sandwich membrane and aluminium phase plug

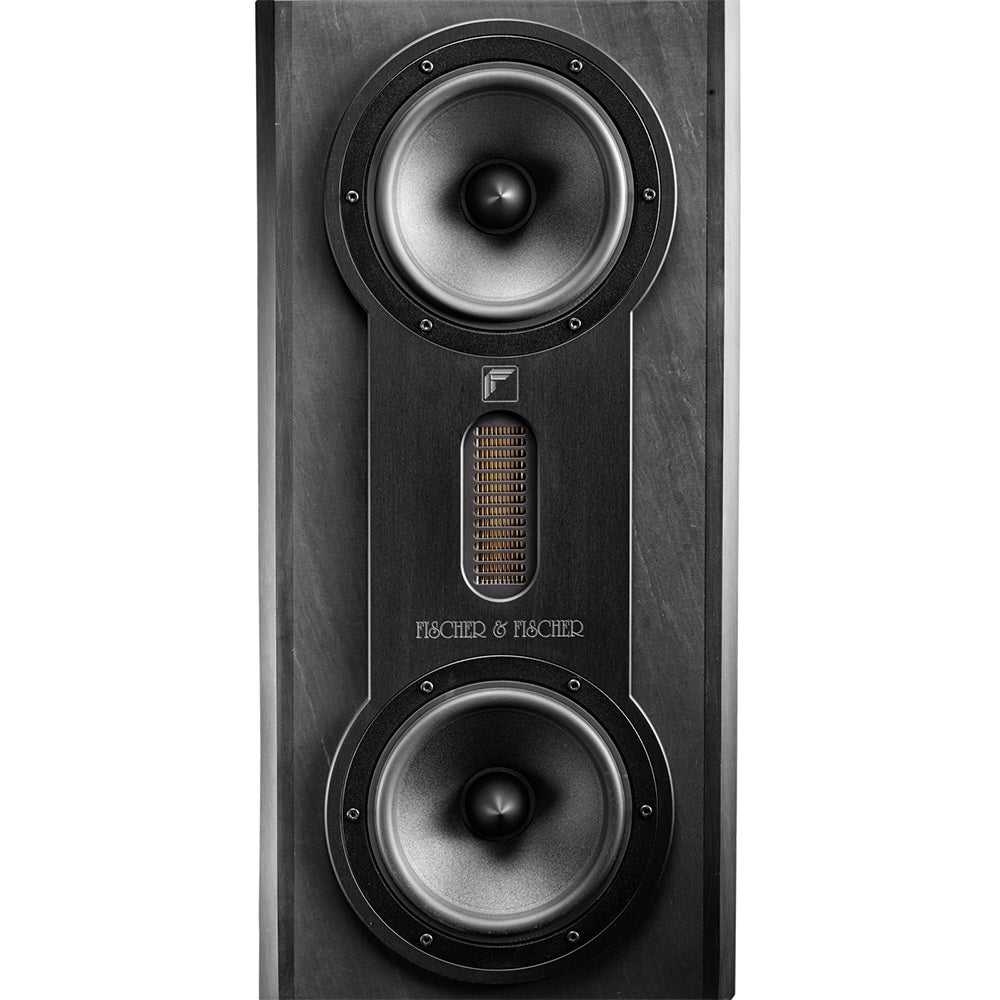

Treble System
One FISCHER & FISCHER Air Motion Transformer (AMT), special specification custom made by Mundorf

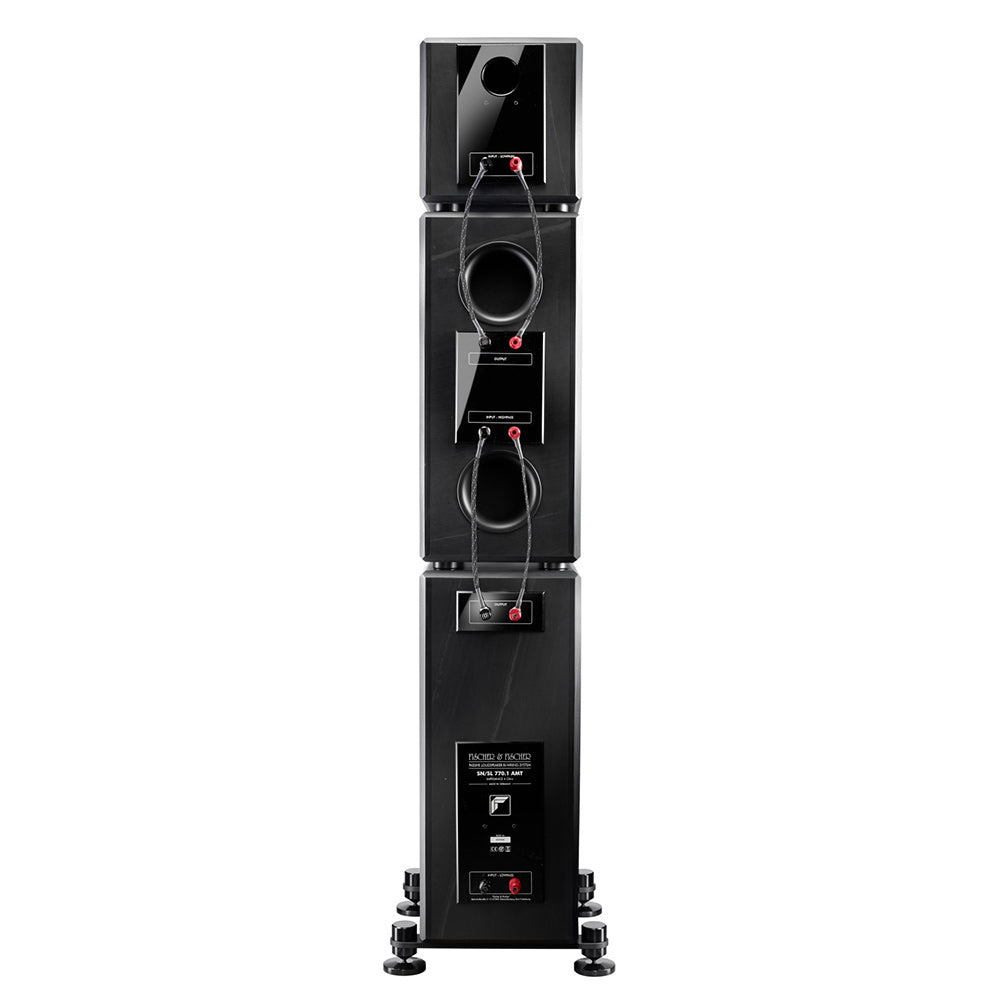

Connecting Terminals
63A rhodium plated connecting terminals, tri-wiring with pure silver bridges with direct lossless connection to the crossover
Cabinet
20-23mm low-resonance thick natural slate plates
SN – Natural surface
SL – Polished and lacquered in all RAL and available car colours
Floor System
Aluminium, height adjustable & levelable
Dimensions (H x W x D)
1550 x 275 x 420 mm
Dimensions, Overall incl. floor system
1610 x 380 x 475 mm
Weight
159 kg
Warranty
10 years
Data Sheet
