MASTERLINE 8
The HSE Preamp Masterline 8 (ML-8) represents the pinnacle of Audio Engineering, shown here on its antivibration support stand.
Engineered for a life expectancy of at least 30 years, only the highest quality handmade Swiss components are utilized.
12 HSE discrete Class A Gain-stage and 2 Zero-ohm Class A ultra-low noise head-amps guarantee best possible audio performance. The audio path is fully balanced, discrete and high voltage.
The ML-8 case is milled from aluminum, glass-bead blasted, anodized, featuring a 20 mm thick front plate and several 24-carat hard-gold-plated parts. Each device undergoes a continuous two-week hardening and maturing process to achieve the finest sound quality.
All electronic components are hand-selected and matched to within a maximum variance of 0.1%.
To achieve uncompromising sound quality, only premium components from ELMA, Goldpoint, NKK, Panasonic, WIMA, Neutrik, and Schurter are used.
The audio signal passes through HSE's proprietary silver-Teflon wiring, while the external toroidal transformer features both static and magnetic shielding.
Optional features include an IR remote control with servo motor-driven ELMA rotary switches.
A customized DAC with AES, SPDIF, and USB inputs from WEISS is also available as an option.
Product Specifications
Inputs
8 × Balanced Stereo XLR
Output
2 × Balanced Stereo XLR (max. 32 dBu), Stereo Headphone Jack
Gain
Each input adjustable, 6–35 dB
Volume Control
47-step ELMA rotary switch, +10 dB to infinite, balanced
Equalizer

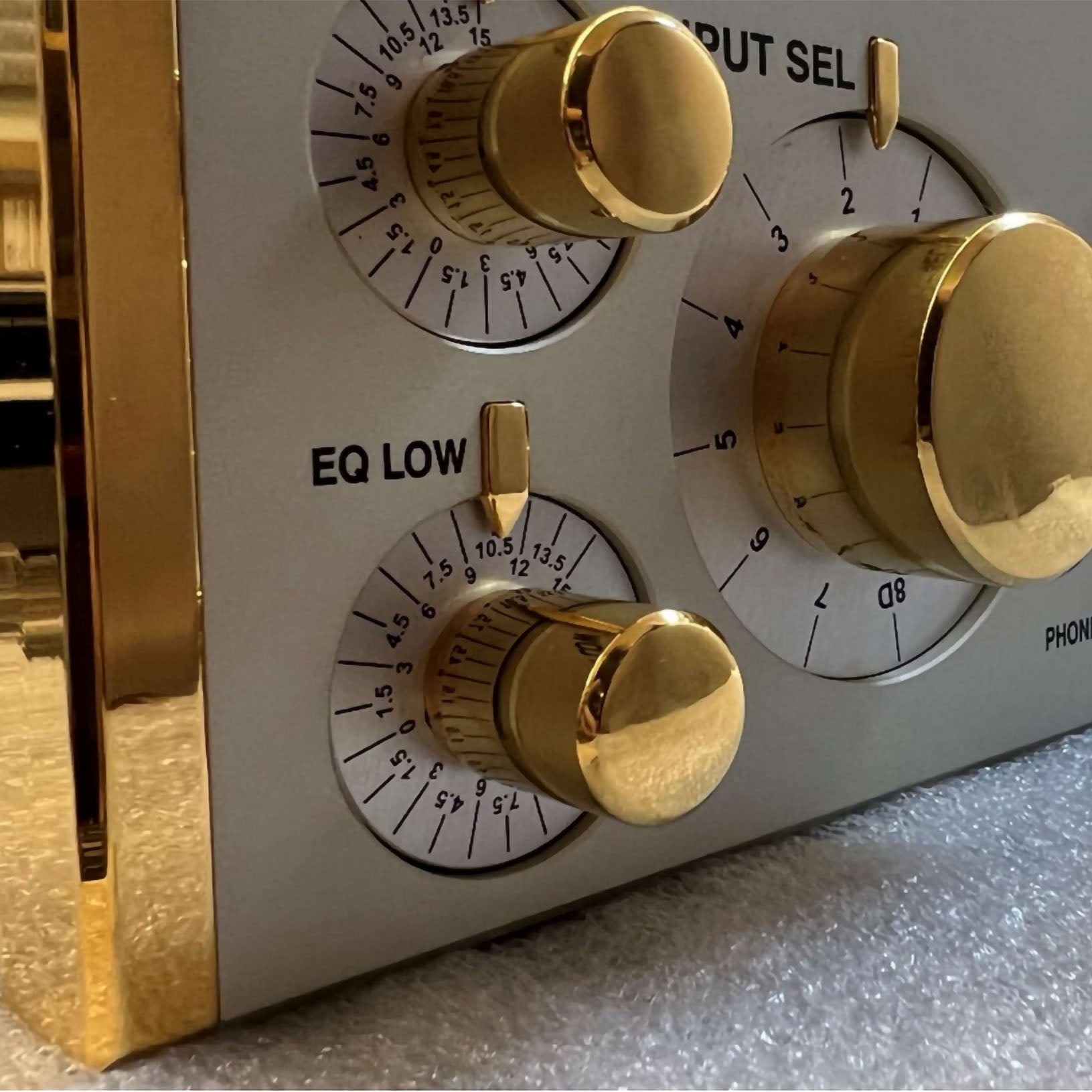

Balanced high and low shelf filter, ±15 dB in 1.5 dB steps, each channel
Noise (EIN)
-144 dB BW, 22 Hz – 22 kHz (49.8 nV)
THD
Not measurable
Frequency Response
1.5 Hz – 1 MHz
Crosstalk
>120 dB
Headroom
>24 dB
Functions
Output LSA on, LSB on, Phase, Overload and DC Error indication, External Mute, High and Low Shelf Filter, Volume, Balance
Circuit Architecture
Fully balanced, Class A, discrete, high voltage, dual mono
Chassis
Aluminum milled, glass-bead blasted, anodized, champagne finish, 24-carat hard-gold-plated earth connector, side parts, volume and selector knob
Power
100 / 115 / 230 V AC, 65 W
Packed Dimensions (W × H × D)
780 × 560 × 240 mm
Packed Weight
27 kg (flight case)
Main Unit Dimensions (W × H × D)
446 × 88 × 410 mm
Main Unit Weight
14 kg
External Power Supply Dimensions (W × H × D)
110 × 115 × 280 mm
External Power Supply Weight
2.5 kg
Remote Option
Servo motor-driven ELMA rotary switches for volume, input selection, and mute
DAC Option
Customized Weiss DAC (AES/EBU, SPDIF, USB) wired to Input 8
