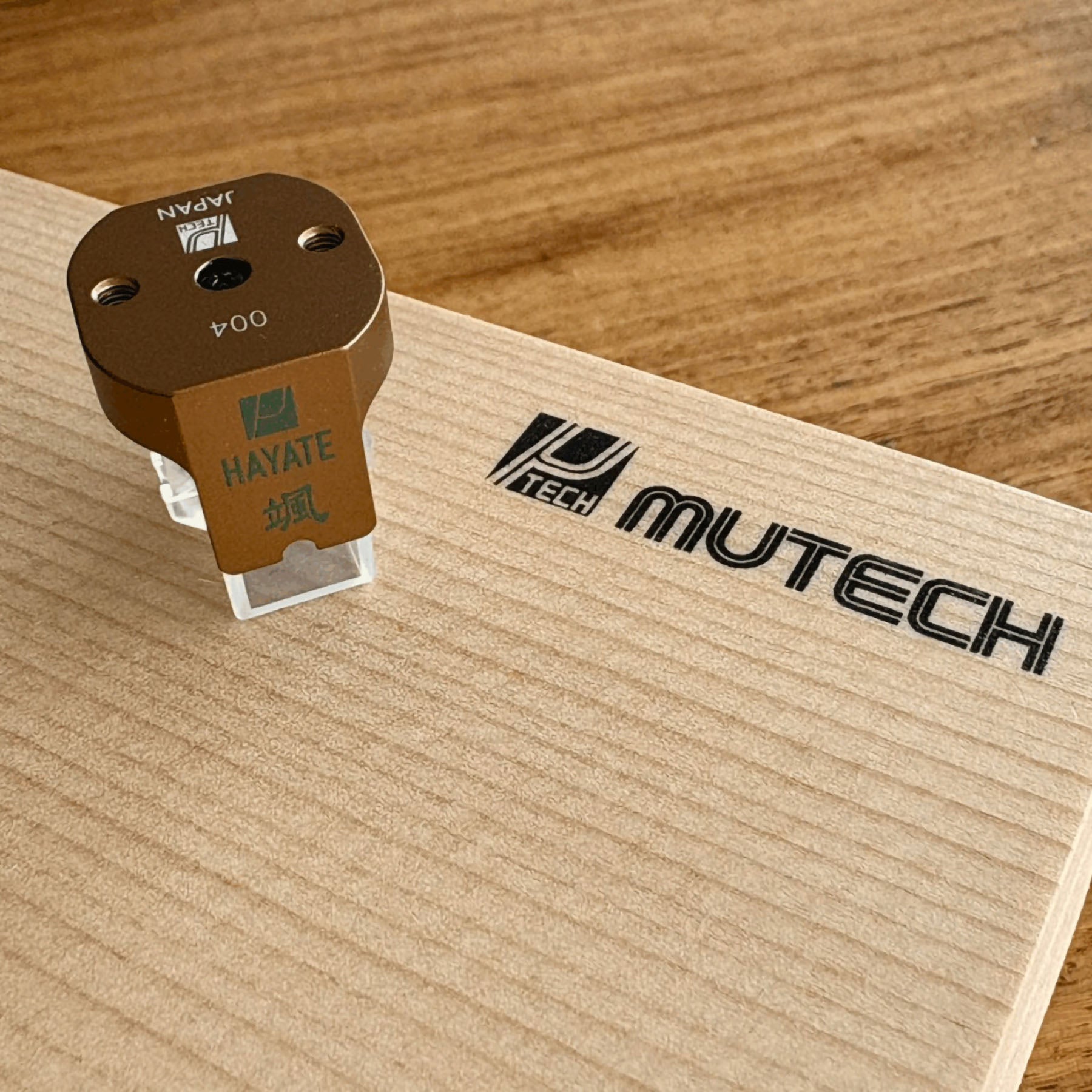

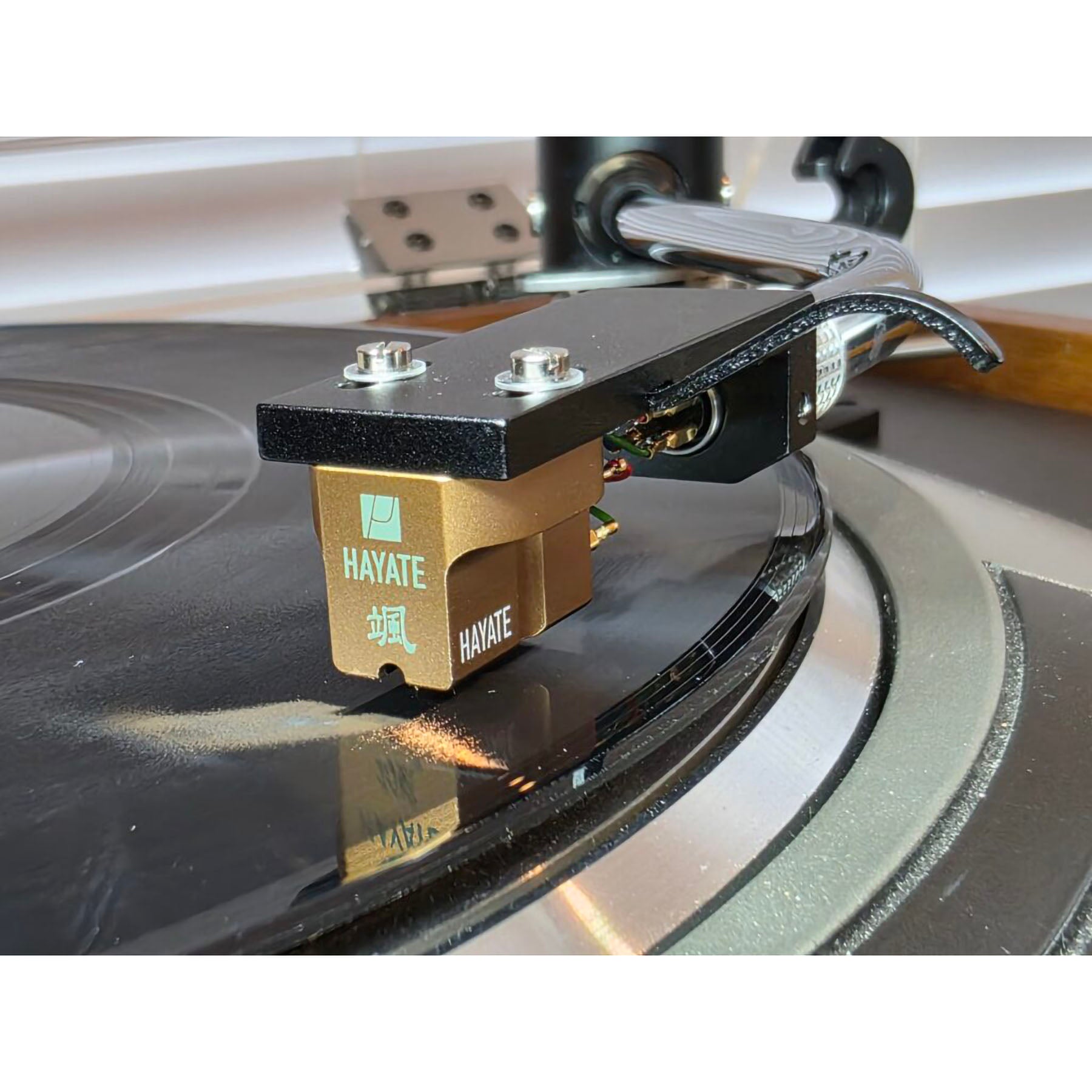

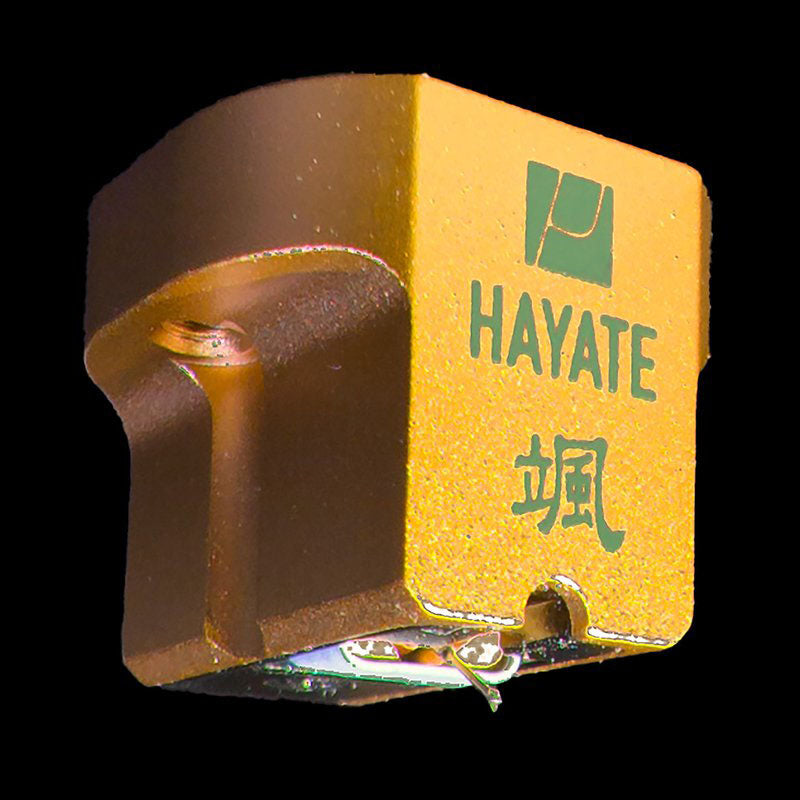

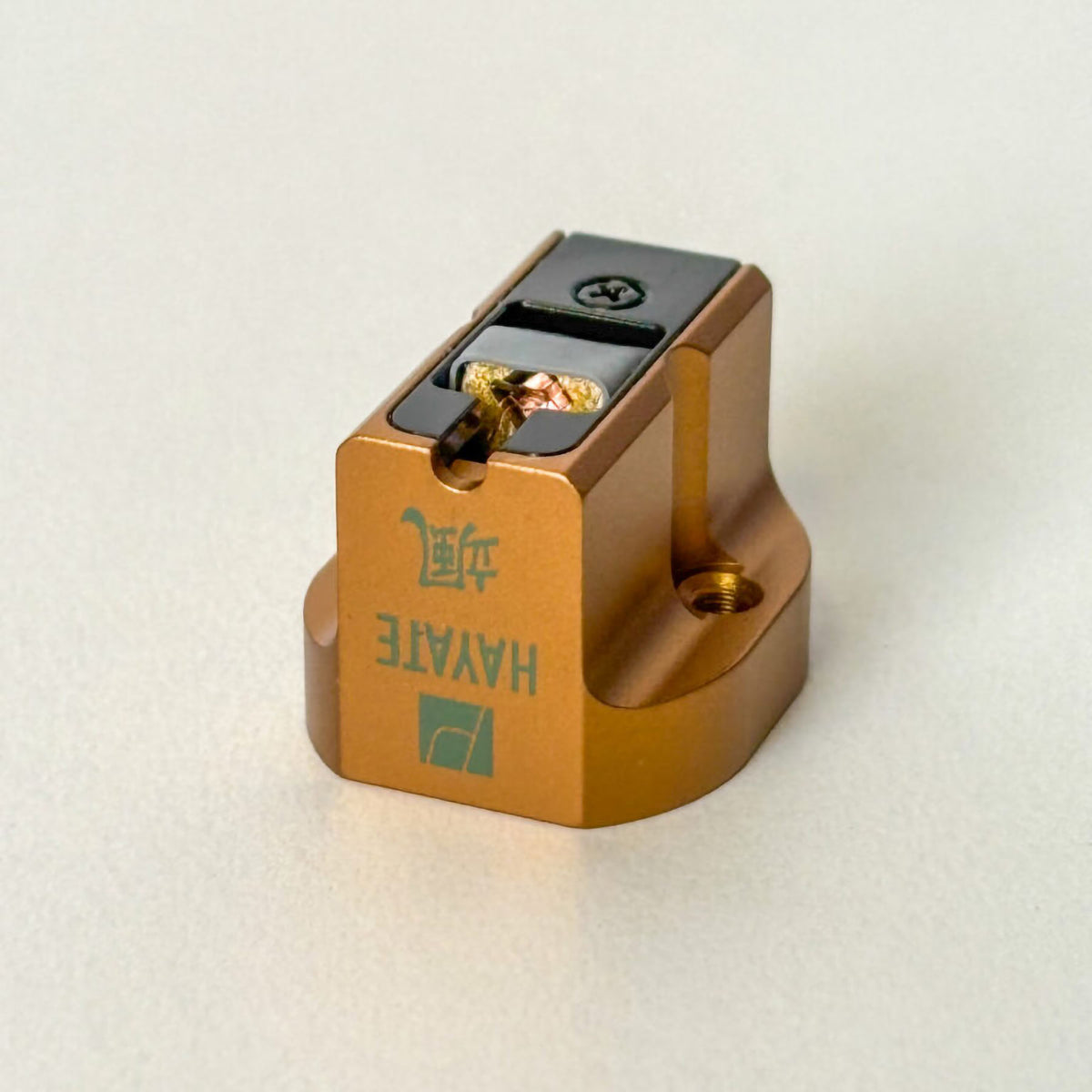

Mutech RM-Hayate Stereo MC Phono Cartridge
The Mutech Hayate is the newest ring-magnet cartridge, and the most refined ever made. Numerous small changes have been made. The result is greater continuity, being able to follow musical lines with ease, but without the aggression of most “highly detailed” cartridges. You hear everything, but it is connected and organic.
The Hayate continues the trend of healthy output with very low source impedance. The lower the impedance, the less inherent noise is generated. Johnson–Nyquist noise (also called thermal noise), increases as the impedance increases. For ultimate fidelity, the cartridge, cables/leads, and input impedance of the phono stage should be as low as possible.
Release Notes from Mutech
Eiji Kanda, the founder of MUTECH, passed away in 2020. HAYATE is produced by Hiroki Kajihara of Kajihara Lab Co. who inheriting Mr. Kanda’s will and technical knowledge. The cartridges are manufactured by Hiroko Ishiyama according Eiji Kanda’s Blueprint.
The Ring Magnet Structure is not the Ortofon type Magnet Structure which has the core material placed in a virtual magnetic field created by two yokes. A Ring Magnet structure has the core material placed inside the magnetic field produced by a tubular neodymium magnet.
Our special core material named “SS-μM”, is placed inside an N50 magnet, one of the strongest magnetic materials made, maximizing output of the core material. Additionally, we plated the magnetic materials with gold to prevent oxidation and deterioration of the magnetic circuit.
The cantilever is boron, and the stylus tip is a line contact needle. A new thicker OFC material has been adopted for the coil, and by using a single-layer winding, inductance has been minimized for improved high frequency performance. Single-layer windings also prevent capacitive coupling between winding turns, preventing changes in frequency response.
The cartridge pin construction was reviewed and new OFC materials from Proterial Metals, Ltd has been adopted. The pin plating has been reviewed and has changed from rhodium to gold plating. This gold plating by Cross Point Ltd. is special thick one. Gold has lower resistance than rhodium, and is a better choice since almost all cartridge clips are gold plated. Whenever possible, it is better when both connections are made of the same material.
A new, dedicated solder was developed for connecting the terminals and coil lead wires, which has also succeeded in improving the dynamic range and low-frequency reproduction. This solder allows good connections to the gold plated surfaces without “gold poisoning” of the solder joint.
Product Specifications
Model Name
RM-HAYATE (颯 / Hayate)
Type
Moving Coil (MC) Phono Cartridge
Power Generation Method
Yokeless Ring Magnet MC Cartridge
Output Voltage
0.45mV (1kHz, 3.45cm/sec)
Recommended Tracking Force
1.8–2.0g
Frequency Response
10Hz–45kHz
Internal Impedance
1.75Ω
Channel Separation (Crosstalk)
≥30dB (1kHz)
Channel Balance
≤0.5dB (1kHz)
Stylus Profile
Line Contact
Cantilever
φ0.3mm Solid Boron
Terminal Pins
OFC Copper with Special Thick Gold Plating
Weight
7.4g
