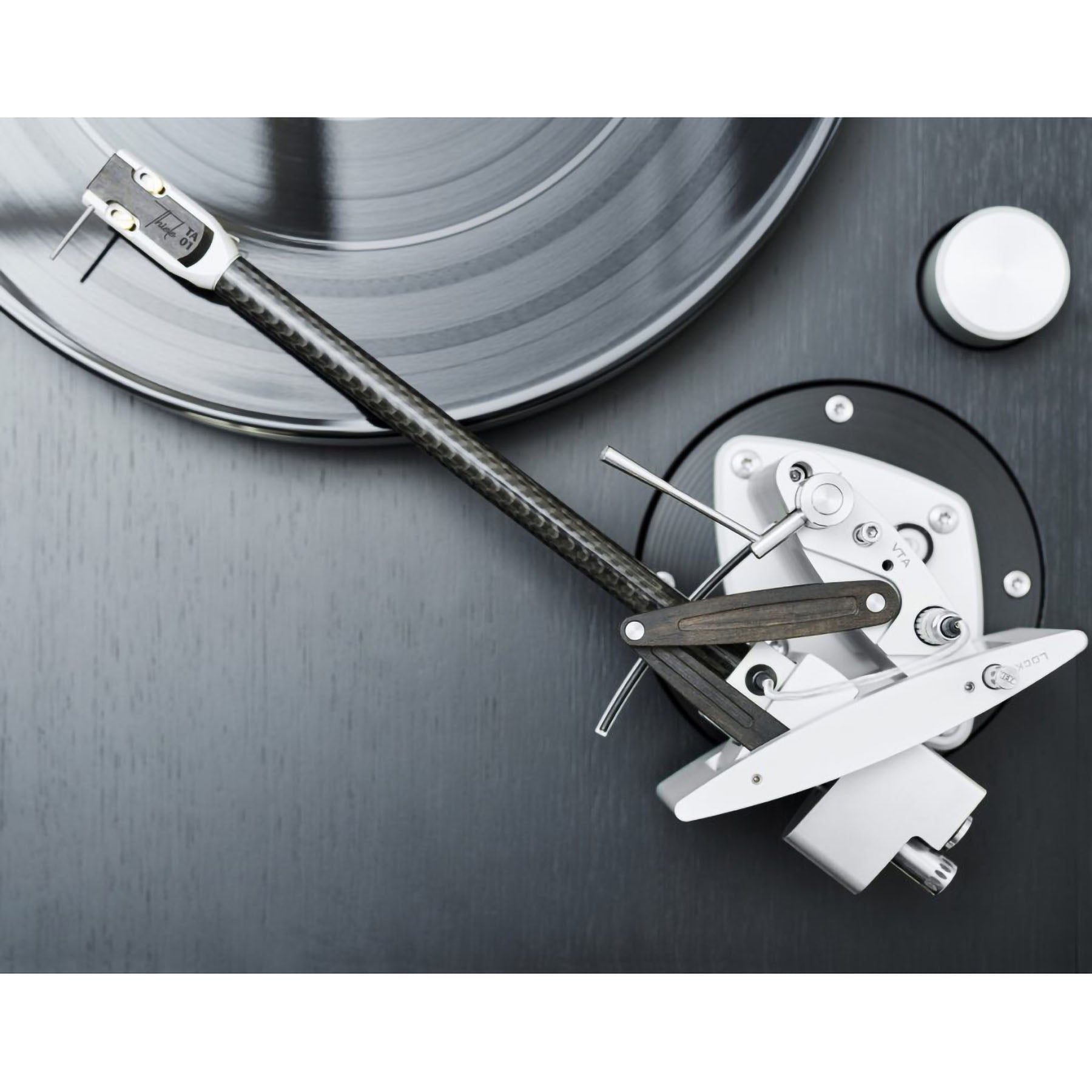

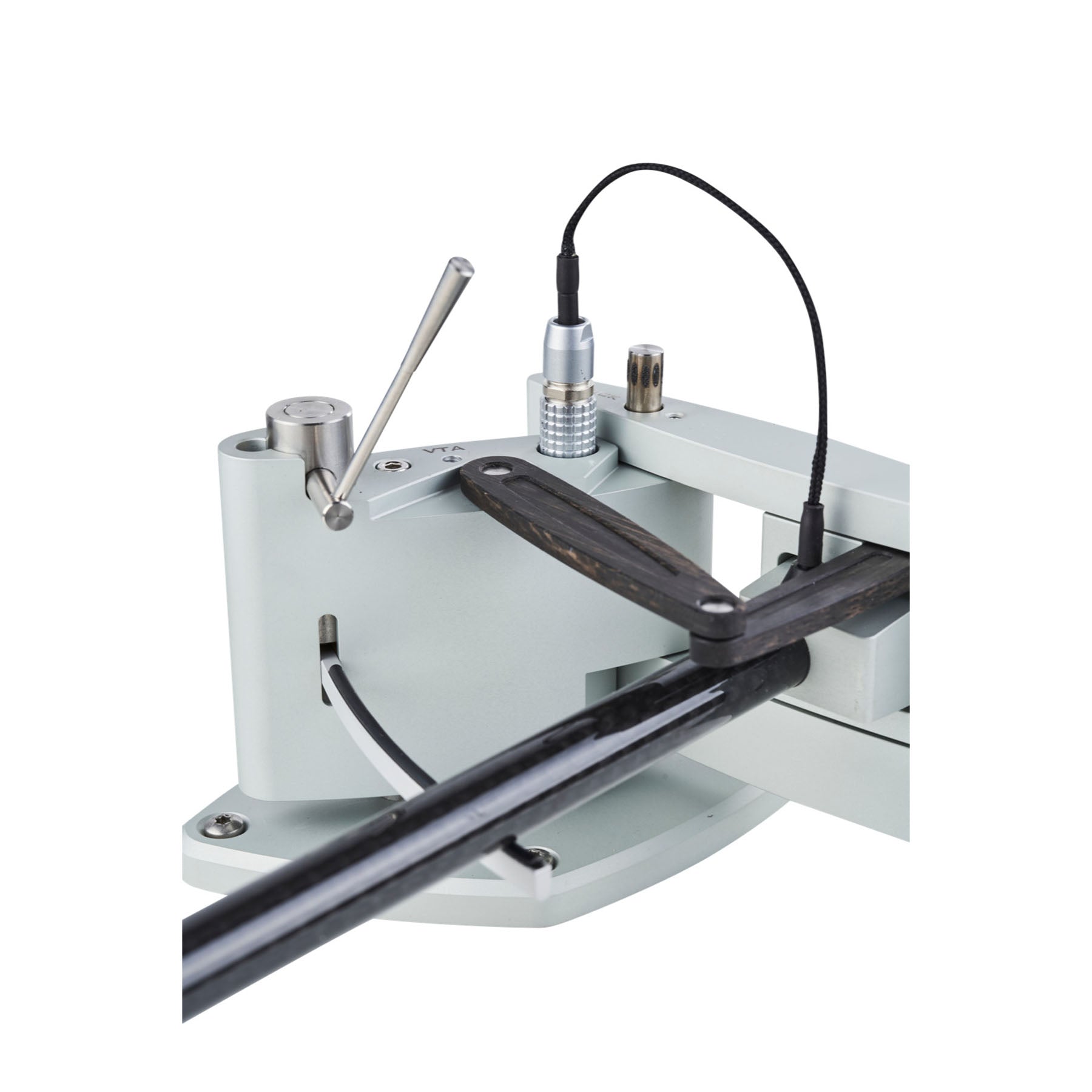

Thiele TA01 Zero Tracking Angle Tonearm

$21,500

Model:

with Carbon Fibre Wand & Wiring to XLR Connectors with Carbon Fibre Wand & TM01 Terminal with XLR Connectors with Carbon Fibre Wand & TM02 Terminal with XLR/DIN Connectors with Carbon Fibre Wand & TI Terminal with Integrated 5-pole/DIN Connectors

Variant

Consult with Us

Available from

HeyNow HiFi Victoria Knox Audio New South Wales AG Lifter New Zealand Magenta Audio South Australia

The complex kinematics of the Thiele TA01 combines the exact and firm guidance of a pivoted tonearm with the advantages of a linear tracking tonearm. This design enables a guiding of the pickup with a lateral tracking angle error of less than 0,036 degrees. The double wall tonearm-tube is filled with 2 component-gel for optimum damping. The design results in a unique spatial resolution, extreme richness of detail and perfect tonality.

DOES THE TA01 FIT TO MY TURNTABLE?

The geometry and size of the Thiele TA01 is dimensioned in a way, that it can be mounted on every turntable which is designed for 9“ or 10“ conventional tonearms. The supplied massive alumium alignment protractor allows for an absolute precise positioning of the Thiele TA01 tonearm on your turntable.

FEATURES

Combination of conventional pivoted and tangential tonearm
Gel-damped tonearmtube

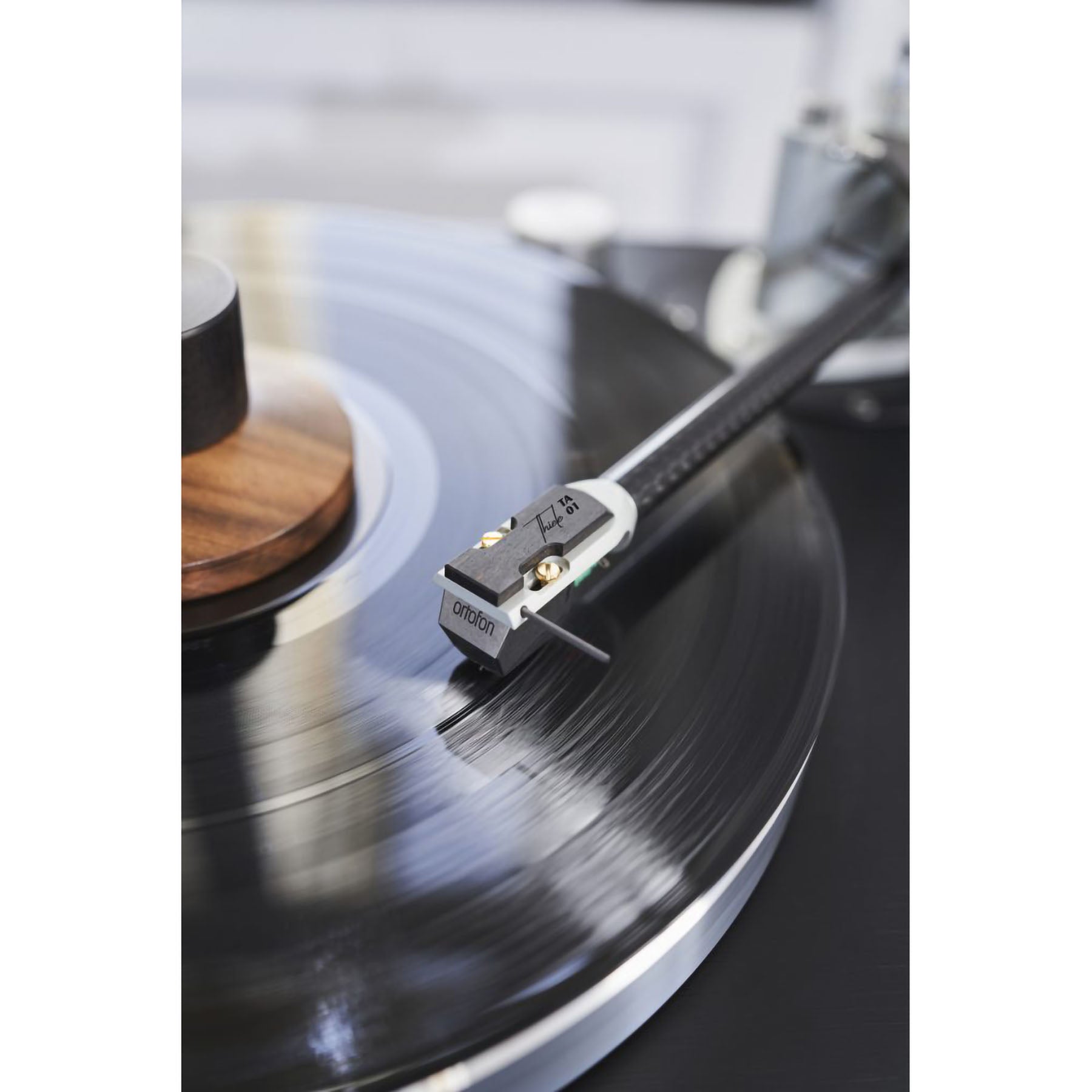

Ebony-damped Headshell
Ebony-damped counterweight
Adjustable VTA, while playing
Adjustable Azimuth
Adjustable height of lift
Tonearm can be locked in resting position

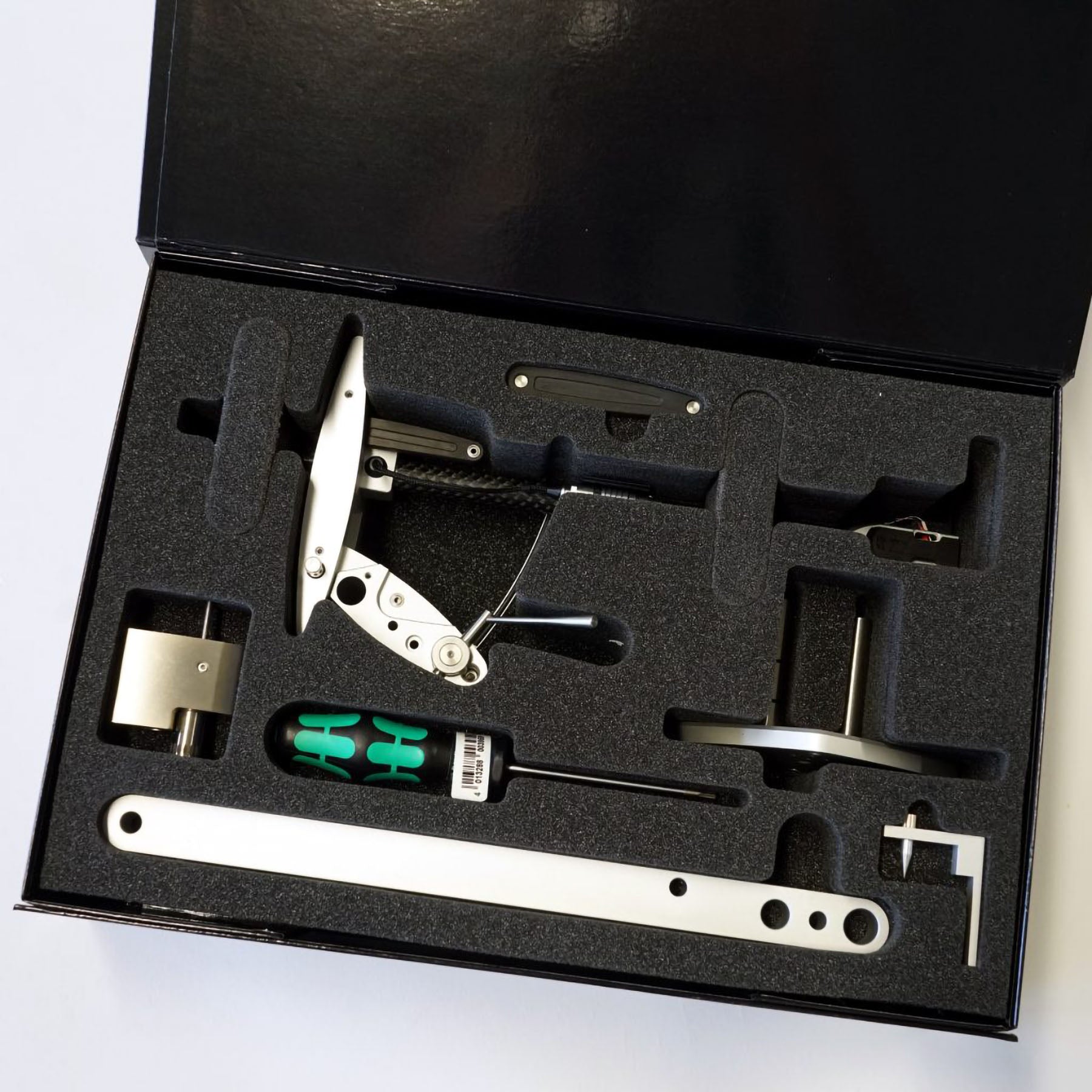

ACCESSORIES

Massive aluminium alignment protractor
Pickup alignment protractor
Allen keys
Bearing ball
Set of screws

OPTION

Additional counterweight

TERMINALS

TM01 with XLR output Or: TM02 with RCA/5-pin DIN output

BOXING AND PACKAGING

The tonearms, detailled setup brochure and all accessories are delivered in a noble box.

Reviews

Dirk Sommer Hifistatement

“Rarely have I listened to a tonearm as intensively and for as long as this one: It helps all the cartridges used to achieve top sonic performance, is not noticeable itself, is easy to set up and adjust, is visually reminiscent of modern architecture and has an extremely high-quality finish. With the TA01, Helmut Thiele has created an innovative dream tonearm.”

Product Specifications

Mounting Distance (Center to Tonearm)

240 mm

Required Space for Tonearm Base (Approx.)

112 mm × 80 mm

Minimum Height Between Armboard and Platter

30 mm

VTA Adjustment at Tonearm Base

10 mm

Azimuth Adjustment

At headshell

Maximum Lateral Tracking Angle Error

0.036°

Effective Mass (Approx.)

14 g

Recommended Dynamic Compliance

~20 μm/mN

Cartridge Balance Range

4 g – 12 g (up to 20 g with additional weight)

Internal Wiring

Zavfino Solid Pure Silver 34 AWG

Weight

800 g
