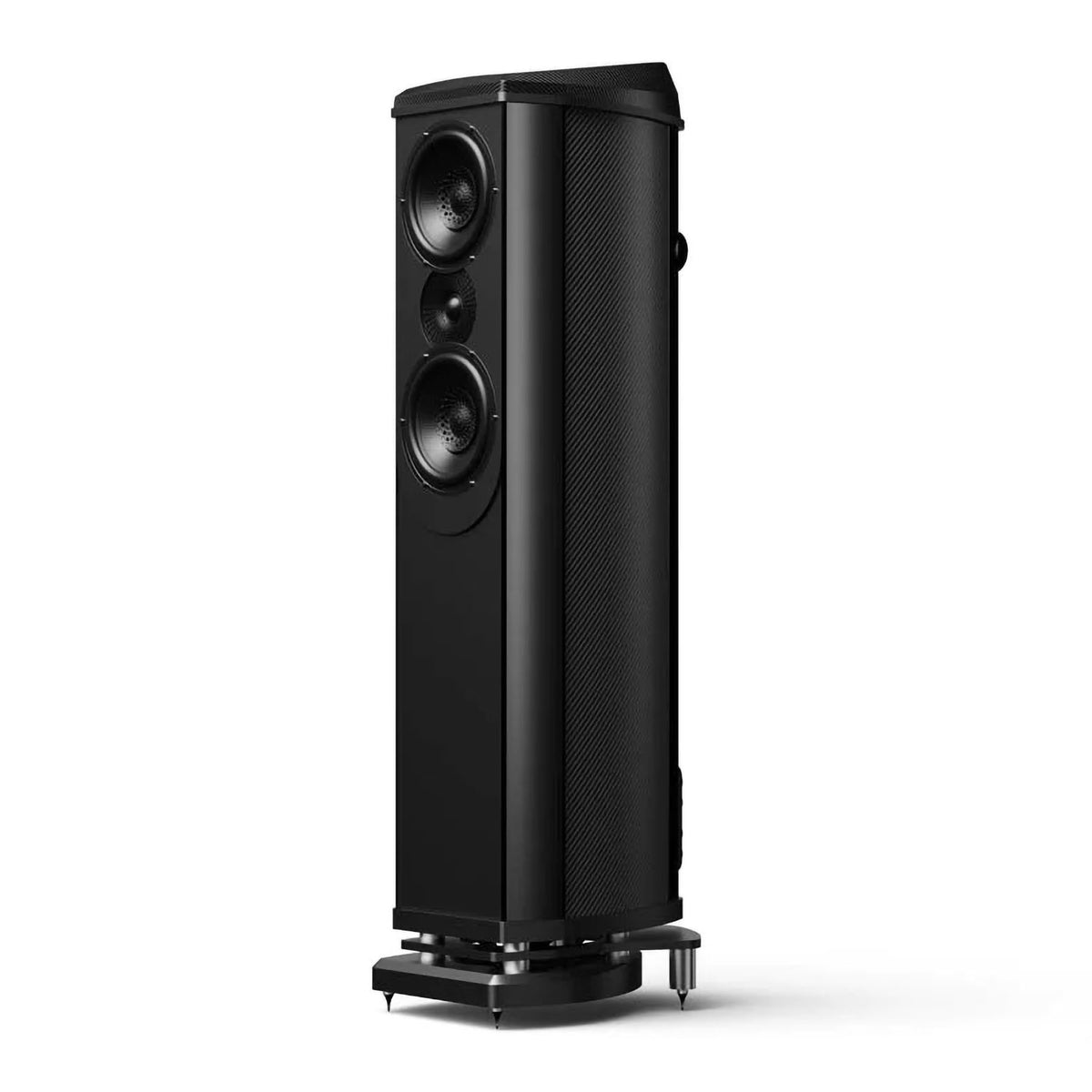

Wilson Benesch Fibonacci Series - A.C.T 3Zero 2.5-Way Floorstanding Loudspeaker (pair)
A.C.T. – ‘Advanced Composite Technology’ – a reference to the composite technologies upon which the Wilson Benesch brand was founded and subsequently has become synonymous with. The A.C.T. acronym was first used in 1991 for the company’s first loudspeaker, the A.C.T. One. The technology was subsequently used in the ‘A.C.T. Two’, the ‘A.C.T.’, the ‘A.C.T. C60’ and in the previous generation A.C.T. One Evolution. The new A.C.T. 3Zero, therefore, follows a long line of speakers, embodying the heritage of the Wilson Benesch brand and the classic A.C.T. design.
Similar physical proportions have been retained, however, the A.C.T. 3Zero marks a significant advance in the materials that are used to create the composite monocoque that forms the largest single component in any Fibonacci Series loudspeaker. The new biocomposite A.C.T. 3Zero Monocoque is made from naturally sourced, renewable and sustainable materials replacing almost all materials previously used that had been sourced from petrochemical sources. In terms of performance, the new monocoque is superior to its predecessor both in terms of damping and stiffness, leaving the new upgraded drive technologies free from cabinet colouration to deliver a new reference from the A.C.T. marquee.
The new A.C.T. 3Zero also marks the first time in history that an A.C.T. loudspeaker has been fitted with an Isobaric Drive System. The new A.C.T. 3Zero incorporates the IDS within the elegant, highly engineered three-part foot. Joining the Isobaric is a low-bass Tactic 3.0, the new Fibonacci Tweeter and a dedicated Tactic 3.0 midrange drive unit which is directly amplifier coupled. This reductive approach to crossover design eliminates phase anomalies and aberrations associated with complex crossovers, creating the shortest and purest signal pathway possible. This approach to design can be heard when you listen to a Wilson Benesch loudspeaker, the natural acoustic character, multi-layered detailed but natural timbre and the deep but integrated soundstage from the top to the bottom of the frequency band.
DESIGN
TACTIC 3.0 DRIVE UNIT
The structure at the centre of the diaphragm plays a critical role in the behaviour of the drive unit. Commonly referred to as the “dust cap”, the name understates the importance of this component. In the Tactic 3.0, Wilson Benesch added the Fibonacci Element.
Produced in house using additive manufacturing technology, the Fibonacci Element can be printed according to pre-designed parameters. Such is the precision of the additive manufacturing software, that the Wilson Benesch design team can see in cross-section and design three-dimensionally the optimal layup of carbon fibre and nylon, defining both stiffness and weight across the structure. The result is a new geometrical form that is comprised of a double curvature with both open and closed aspects in the form of a lattice structure again borrowed from natural geometry. 5 different materials and adhesives provide significant improvements in both the accuracy of the frequency response and the reduction of distortion.
This is a critical aspect of the relationship between the drive unit and its ability to integrate with the roll off of the tweeter and bass drive units. In the past, several materials have been drawn upon to enable the fine-tuning of this marriage. Additive Manufacturing has opened up a new chapter in the pursuit of this subtle but extremely important aspect of loudspeaker design. For the first time, the principal aspects of this structure can all be adjusted in a way that was previously impossible.
FIBONACCI SILK-CARBON HYBRID TWEETER
The latest iteration of Wilson Benesch tweeter technology builds upon the Semisphere tweeter design pushing it into the next generation. As with all Wilson Benesch designs, the advances of the previous generation are built upon an iterative research and development pathway. With the Fibonacci tweeter, advances have been made within the structures adjacent to the motor and the hybridised dome. The Fibonacci tweeter faceplate is formed from a carbon fibre - nylon composite structure creating a geometrically optimised structure - the Fibonacci Element - that has been inspired by sacred geometry found in nature. In terms of acoustic performance, the faceplate delivers a new benchmark in terms of flat frequency response and ultrawide dispersion. In addition, the Fibonacci Element is decoupled from the motor and tweeter chassis which almost entirely eliminates structural borne resonance within this critical structure that surrounds the tweeter dome.
A.C.T. 3ZERO BIOCOMPOSITE MONOCOQUE
The Fibonacci Series introduces a full line of loudspeakers from the Wilson Benesch brand that are built from the new A.C.T. 3Zero biocomposite Monocoque. The new monocoque marks significant advances not only in terms of the acoustic performance of the Wilson Benesch reference line, but it also represents a deliberate and conscious move toward natural, renewable and sustainable materials technology.
ISOBARIC DRIVE SYSTEM
The principal low-frequency load of all loudspeakers in the Fibonacci Series is delivered by the Isobaric Drive System. Here two Tactic 3.0 Drive Units combine to create an Isobaric Drive System. The Isotactic Drive System is responsible for reproducing an incredibly tight and controlled bass response that is perfectly integrated with all other woofers in the loudspeaker chassis, particularly the midrange Tactic 3.0 drive unit.
CARBON FIBRE COMPOSITE STEALTH TOP
Wilson Benesch fit a beautifully sculptural carbon fibre composite top to its reference line loudspeakers. The forms are inspired by natural, organic shapes, curves and free flowing lines found in nature.
The carbon fibre tops are extremely complex forms are created using a combination of hand sculpting in clay which are in turn measured using a laser and in turn loaded into advanced 3D digital computer aided design (CAD) software at Wilson Benesch. By importing data in this way, Wilson Benesch are able to use powerful software algorithms to further optimise the 3D form before manufacturing.
When a longitudinal sound wave strikes a flat surface, sound is reflected in a coherent manner. However, the reflective nature of a structure varies according to the shape of the surface. Uneven surfaces will diffract sound wave energy, rather than reflect it directly with little reduction in the energy of the sound wave which it perceived as colouration in the HIFI system. Therefore the complex ‘stealth like’ form is critical to the performance of the loudspeaker. By removing any flat, reflective surfaces and creating a highly complex structure, any reflective sound energy is scattered. This diminishes its energy and also avoids standing wave patterns within the listening space that are easily detected by the human ear as distortion or colouration.
DIRECT MIDRANGE DRIVE UNIT COUPLING
Wilson Benesch started development of its own drive unit diaphragms, including those made from a carbon fibre/epoxy matrix in 1995. Research was conducted using alternative hard dome materials. Without exception, Isotactic Polypropylene was favoured for its natural sound and the ability of this material to absorb energy and avoiding complex breakup modes in the diaphragm. This critical material characteristic allows the Wilson Benesch design team to achieve mechanically and acoustically what would otherwise be implemented in complex crossover designs with a series of inductors and capacitors. This reductive approach to crossover design maintains phase, linearity and the degree of control over manufacturing and design of both the drive unit specifications and the enclosure air volume allows Wilson Benesch to eliminate all crossover components in the midrange drive units of most Fibonacci Series models running the drive unit directly amplifier coupled.
PRECISION CNC MACHINED FOOT
One of the most important principles in structural engineering is loading. All modern buildings are built upon solid foundations. It is the reference point for everything above it, transferring the load of the structure into the ground. Within loudspeaker design, it is crucial to create a stable point from which the drive units can propagate complex and accurate waveforms that we appreciate as music. The A.C.T. 3Zero foot is constructed from three separate precision CNC machined elements. The design not only houses the powerful Isobaric Drive System, but it also adds mass low in the loudspeaker chassis and provides structural fixing points for 13mm steel ties to fix into. These steel ties run the length of the loudspeaker chassis and tie into the loudspeaker top.
13MM STEEL TIES: COMPRESSION IN THE VERTICAL AXIS
Just like the flagship Eminence design, the A.C.T. 3Zero enclosure is held under tons of compressive force using 13mm threaded steel bars which tie from the aluminium loudspeaker top-plate into the A.C.T. 3Zero foot. These vertical steel ties exert tons of compressive force in the vertical axis where the first resonant modes will emerge.
BESPOKE
ENGINEERED FOR YOU
Every Wilson Benesch is hand built for you. We offer a range of bespoke natural wood veneers, P1 colored carbon and automotive pearl and metallic paint finishes. Want to create something unique, contact us to create your own Eminence.
Videos
Wilson Benesch A. C. T. ONE EVOLUTION P1 CES INNOVATION AWARD 2017, Ypsilon, Aaudio Imports
devAAudio – Wilson Benesch ACT ONE Evolution
Awards
Reviews
What Hi-Fi?, 2023
Judge these speakers by hi-fi criteria such as tonal balance, stereo imaging or detail resolution and they ace the test. Judge them on the ability to communicate the emotion in music, and they are similarly successful. Given a suitably talented system, these Wilson Benesch A.C.T. 3Zero are easily among the finest speakers we’ve ever tested. Wilson Benesch… we salute you.
SoundStage! Australia, Edgar Kramer, 2021
The Wilson Benesch A.C.T. One Evolution is an intellectually stimulating loudspeaker. I mean that both in terms of its intelligent engineering across all aspects of its design and in the way it presents music. It has a way of engaging you in a manner that makes you think about what you’re listening to. Other designs may draw you in and engulf you in sheer emotive bliss. The A.C.T. One Evolution is capable of that too, however, it also engages your neurons on a cerebral level. At least that was my experience. Exceptional engineering aside, it’s also an aesthetically attractive design which has been meticulously constructed and flawlessly finished. The A.C.T. One Evolution loudspeakers force you to take notice. That is a lot to think about. And feel. Go on, engage your senses…
Music Emotion, Werner Ero, 2019
Trying to describe the sound of this speaker with typical audiophile parameters is of no real use because of the almost 1:1 sense of scale and rich live experience. Everything is there and everything is in perfect balance. Just like it needs to be, but is seldom experienced with hifi… Together, music and system form a wonderful unity and it makes me think this is how high end music playback should be sounding, totally forgetting all technicalities and be one with the music.
The Absolute Sound, Alan Sircom, 2015
The A.C.T. One Evolution is also extraordinarily detailed from top to toe. These are great loudspeakers for musical analysis, for listening into the music and extracting both a lot of information and – more significantly – a lot of fun. Play something like Bach’s Art of Fugue [Emerson String Quartet, DG] and you need to hear both the cerebral and the visceral. This should be extremely precise and very clearly a string quartet, but it should also come with a sense of musical joy and vivacity, taking the birthplace of modern music and making it their own. Less detailed loudspeakers fail at one of these two aspects, either making the precision or the fun-factor disappear. Wilson Benesch’s A.C.T. One Evolution combines both elements of the recording with lithe elegance.
The A.C.T. One Evolution is the distillation of all the engineering and materials science development that Wilson Benesch can throw at a loudspeaker… where the original A.C.T. One began ‘tabula rasa’, the A.C.T. One Evolution draws upon drive unit technology and high compression cabinet construction derived from two decades of loudspeaker design…
…I don’t want to get carried away by the bass. There is a lot more to this loudspeaker than bottom end. It’s just that the loudspeaker does bass so well, and so deep; that unbraced cabinet makes it TARDIS like and far bigger on the inside than you’d expect and that means more cabinet volume and that means more bass – but the level of control the A.C.T. One Evolution has over that bass is insane
LP Magazine, 2019 (German Language)
A.C.T. 3Zero Speakers at the Bristol Show
Product Specifications
Type
2.5-Way Floorstanding Loudspeaker
Impedance
TBA
Sensitivity
TBA
Frequency Response
TBA
Drive Technology
Tweeter
1 × 25 mm (1") Wilson Benesch Fibonacci Hybrid Silk-Carbon Tweeter
Midrange
1 × 170 mm (7") Wilson Benesch Tactic 3.0
Mid Bass
1 × 170 mm (7") Wilson Benesch Tactic 3.0
Isobaric Drive System
2 × 170 mm (7") Wilson Benesch Tactic 3.0 drivers in clamshell formation
Crossover Technology
Tweeter
Second-order, 5 kHz high-pass filter
Midrange
Directly amplifier coupled
Mid Bass
First-order
Isobaric Drive System
First-order, 500 Hz low-pass filter
Enclosure Technology
Materials
A.C.T. 3Zero – Advanced Bio-Composite Monocoque Technology, Poly-Alloy, Hybridised Construction
Tweeter
Labyrinth-sealed tweeter backplate
Midrange
Reflex port tuned with Laminar Flow Guide
Mid Bass
Infinite baffle sealed enclosure
Isobaric Enclosure
Infinite baffle sealed enclosure
Finishes
Standard Textured Black
Premium Natural Wood Veneer
Premium Paint Finishes
Premium P1 Carbon Fibre Finishes
Isobaric Drive System finishes (contact Nirvana Sound for available options)
Dimensions
Height
1,132 mm (44.57")
Width
194 mm (7.64") baffle; 276 mm (10.87") widest point of foot
Depth
376 mm (14.8")
Weight
TBC
Terminations
Bi-wireable terminal located on the loudspeaker foot at ground level
