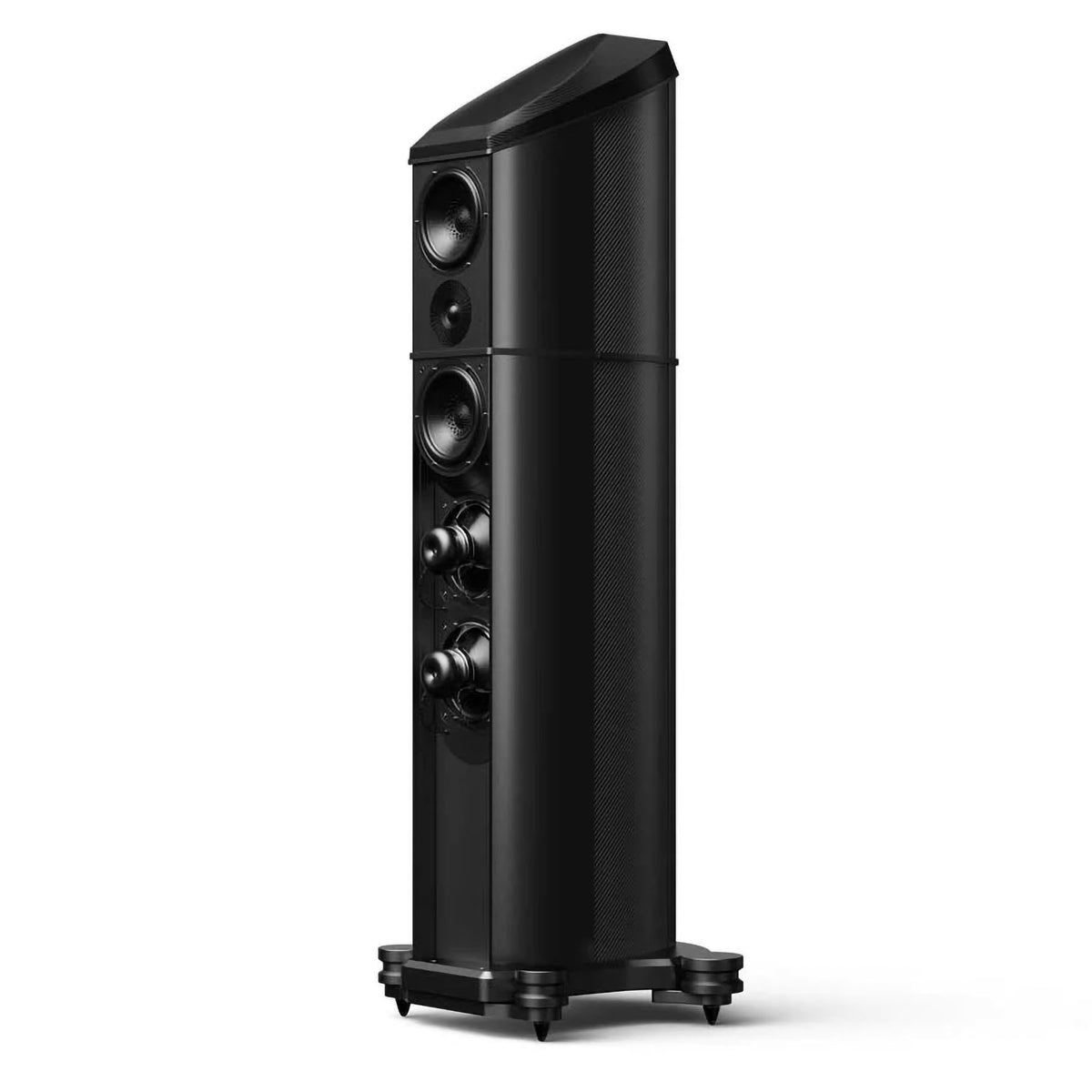

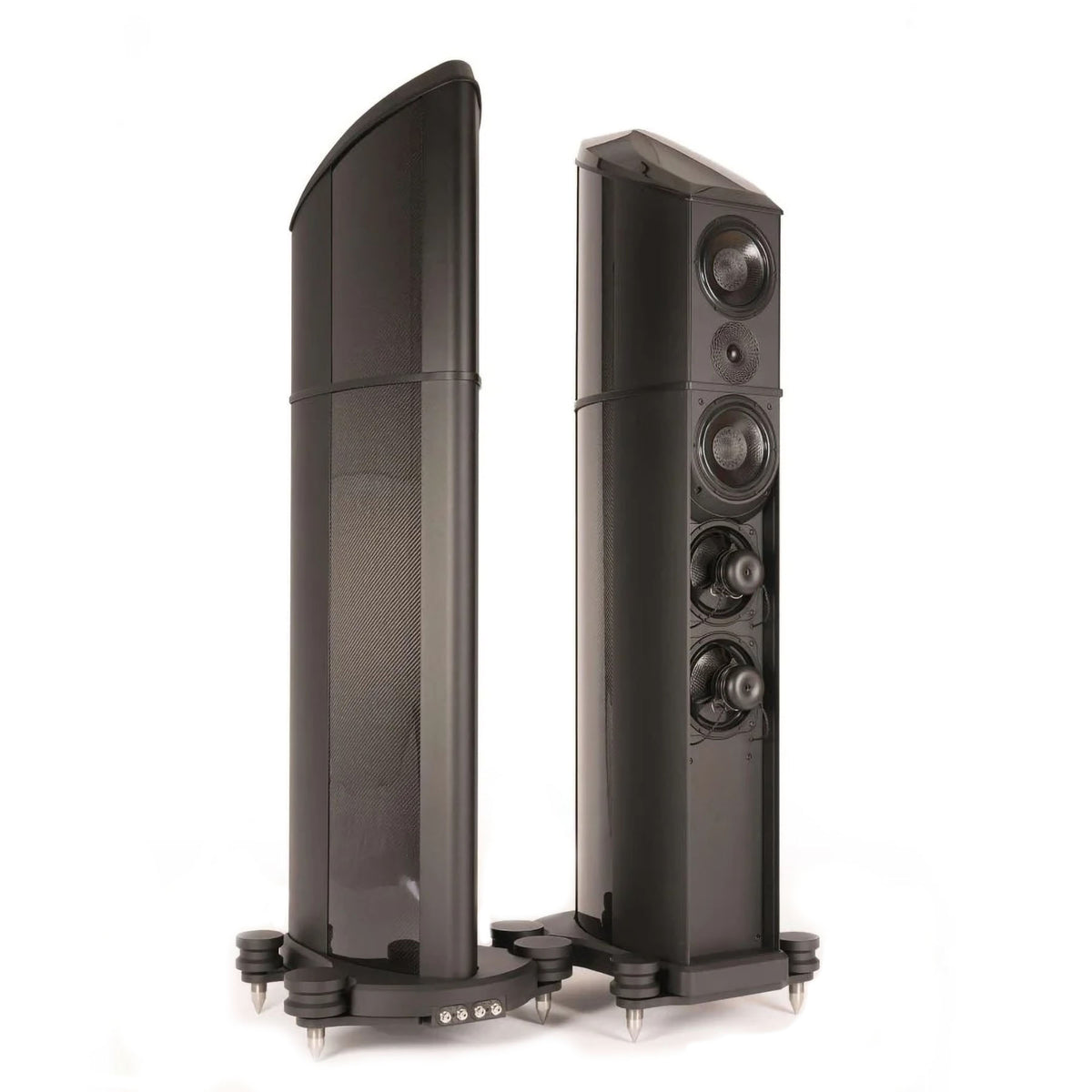

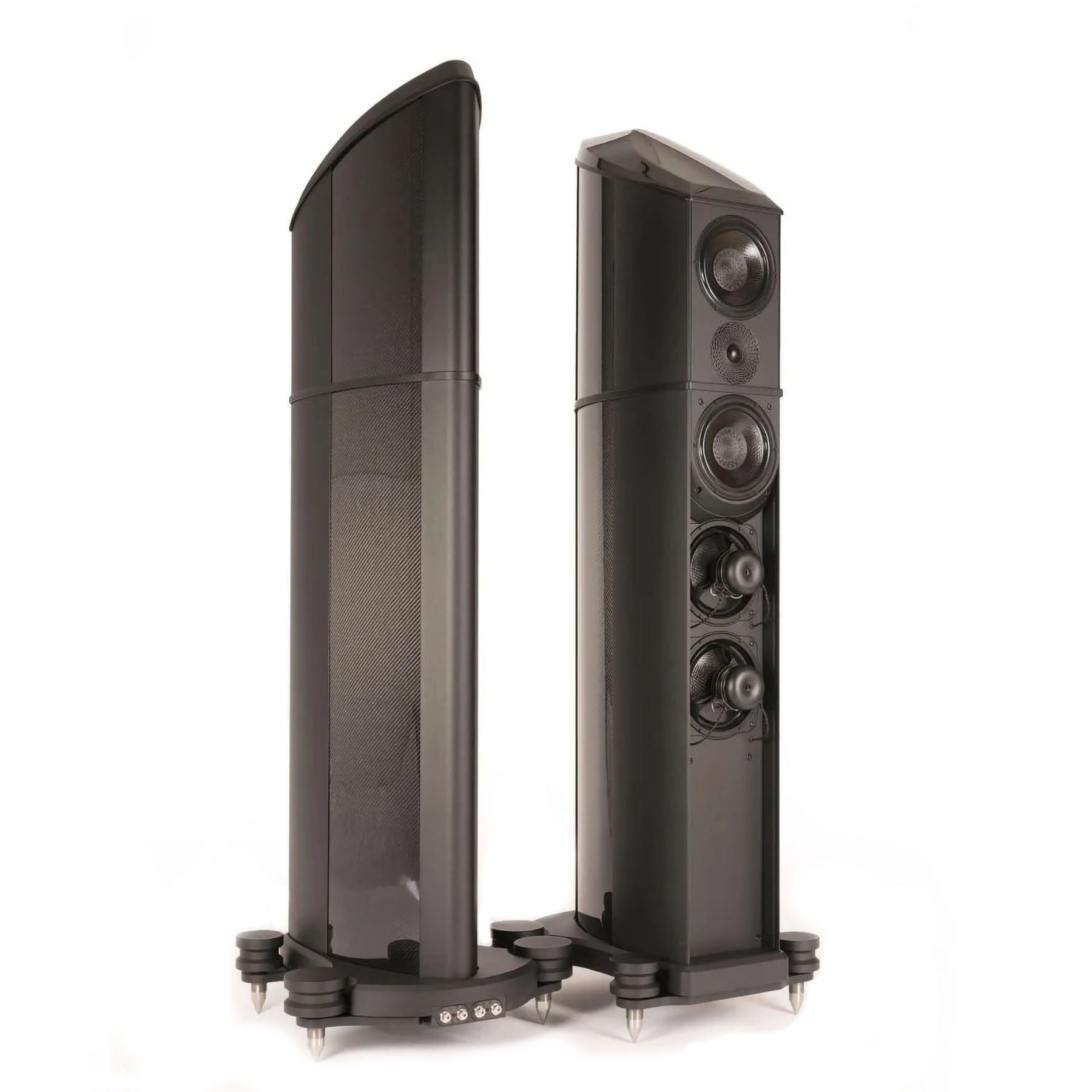

Wilson Benesch Fibonacci Series - Resolution 3Zero 2-Way Electric, 4-Way Acoustic Floorstanding Loudspeaker (pair)
DEFIES BELIEF.
POWER WITH ABSOLUTE CONTROL.
Drawing on the DNA of the A.C.T.3Zero and Endeavour 3Zero, the Resolution 3Zero deploys technologies such as the Isobaric Drive System, the acoustic centring of the tweeter and midrange drivers, and a sculptured curved sloping carbon composite top and the A.C.T. 3Zero biocomposite Monocoque – but it places this technology in a full range floorstanding enclosure. The results are superlative!
Resolution 3Zero is a high-octane listening experience – capable of delivering impressive drive, power and scale, whilst also retaining complete composure thanks to the Wilson Benesch drive technologies and the A.C.T. 3Zero biocomposite monocoque. But whilst the Resolution 3Zero is capable of sonic acrobatics, it is also (as its name would suggest) capable of resolving micro harmonics and delicate passages within the recorded arts – performing a disappearing act within the soundstage – such that the listener is always at one with the music and the artist.
The foundation of everything is the perfectly integrated bass delivery.In this respect,the Resolution 3Zero deploys two Isobaric Drive System, plus a low-bass driver at the top of its enclosure. The step response of the Isobaric Drive System matches that of the midrange drive units, ensuring perfect phase coherence across the frequency band.
Placed directly at the centre of the Resolution 3Zero, the Tactic 3.0 midrange together with the Fibonacci Tweeter directly above it, forms the acoustic centre. As with the A.C.T. 3Zero, the Tactic 3.0 midrange drive unit is acoustically rolled-off with no crossover within its signal path to the amplifier, this optimises the performance through this critical frequency band allowing the midrange drive unit to deliver a perfectly natural midrange presentation.
The Resolution 3Zero is a formidable floorstanding loudspeaker. It defies what is commonly thought to be possible from a large enclosure by delivering power with absolute control and finesse. A tough act to follow.
DESIGN
TACTIC 3.0 DRIVE UNIT

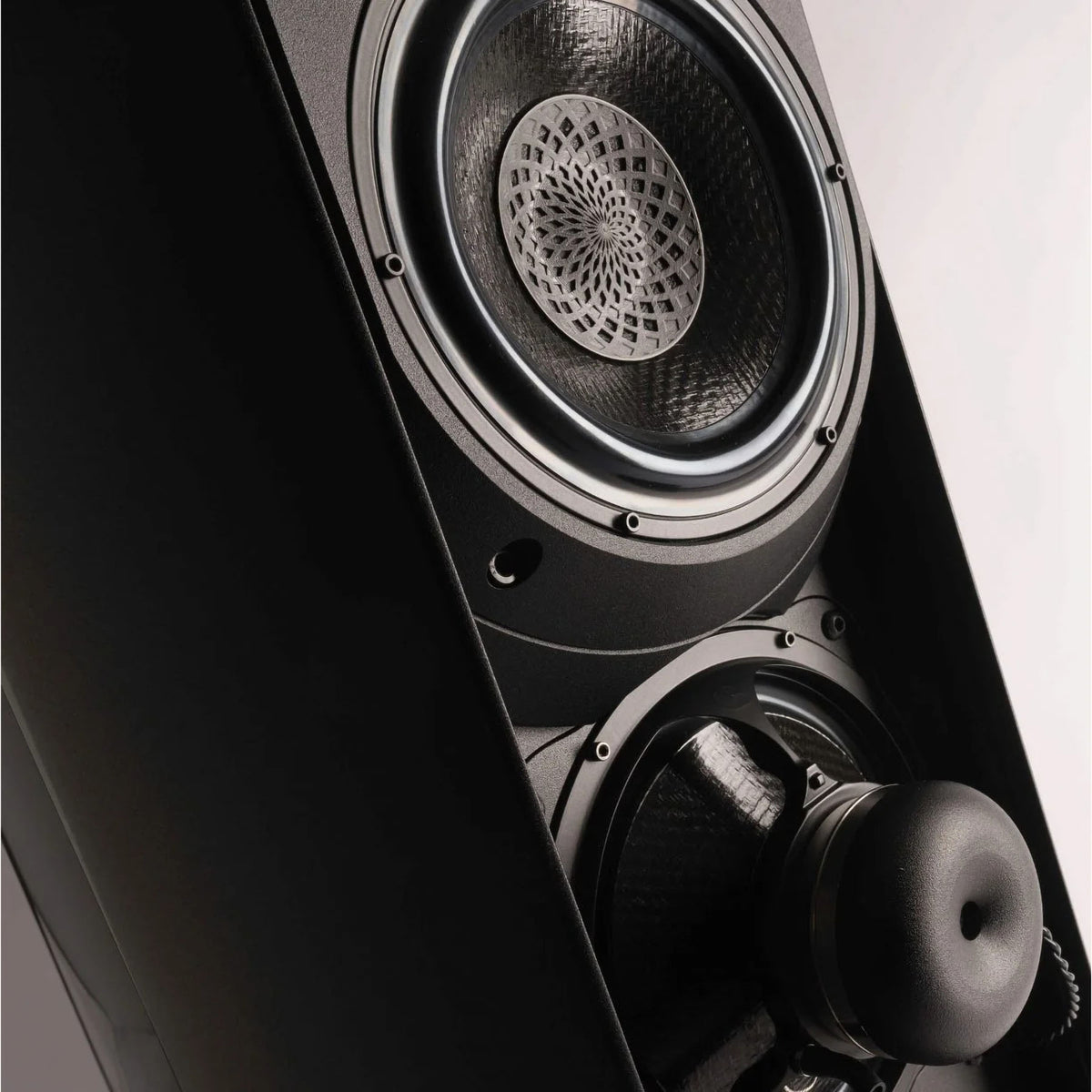

The structure at the centre of the diaphragm plays a critical role in the behaviour of the drive unit. Commonly referred to as the “dust cap”, the name understates the importance of this component. In the Tactic 3.0, Wilson Benesch added the Fibonacci Element.
Produced in house using additive manufacturing technology, the Fibonacci Element can be printed according to pre-designed parameters. Such is the precision of the additive manufacturing software, that the Wilson Benesch design team can see in cross-section and design three-dimensionally the optimal layup of carbon fibre and nylon, defining both stiffness and weight across the structure. The result is a new geometrical form that is comprised of a double curvature with both open and closed aspects in the form of a lattice structure again borrowed from natural geometry. 5 different materials and adhesives provide significant improvements in both the accuracy of the frequency response and the reduction of distortion.
This is a critical aspect of the relationship between the drive unit and its ability to integrate with the roll off of the tweeter and bass drive units. In the past, several materials have been drawn upon to enable the fine-tuning of this marriage. Additive Manufacturing has opened up a new chapter in the pursuit of this subtle but extremely important aspect of loudspeaker design. For the first time, the principal aspects of this structure can all be adjusted in a way that was previously impossible.
FIBONACCI SILK-CARBON HYBRID TWEETER
The latest iteration of Wilson Benesch tweeter technology builds upon the Semisphere tweeter design pushing it into the next generation. As with all Wilson Benesch designs, the advances of the previous generation are built upon an iterative research and development pathway. With the Fibonacci tweeter, advances have been made within the structures adjacent to the motor and the hybridised dome. The Fibonacci tweeter faceplate is formed from a carbon fibre - nylon composite structure creating a geometrically optimised structure - the Fibonacci Element - that has been inspired by sacred geometry found in nature. In terms of acoustic performance, the faceplate delivers a new benchmark in terms of flat frequency response and ultrawide dispersion. In addition, the Fibonacci Element is decoupled from the motor and tweeter chassis which almost entirely eliminates structural borne resonance within this critical structure that surrounds the tweeter dome.
A.C.T. 3ZERO BIOCOMPOSITE MONOCOQUE
The Fibonacci Series introduces a full line of loudspeakers from the Wilson Benesch brand that are built from the new A.C.T. 3Zero biocomposite Monocoque. The new monocoque marks significant advances not only in terms of the acoustic performance of the Wilson Benesch reference line, but it also represents a deliberate and conscious move toward natural, renewable and sustainable materials technology.
ISOBARIC DRIVE SYSTEM
The principal low-frequency load of all loudspeakers in the Fibonacci Series is delivered by the Isobaric Drive System. Here two Tactic 3.0 Drive Units combine to create an Isobaric Drive System. The Isotactic Drive System is responsible for reproducing an incredibly tight and controlled bass response that is perfectly integrated with all other woofers in the loudspeaker chassis, particularly the midrange Tactic 3.0 drive unit.
CARBON FIBRE COMPOSITE STEALTH TOP
Wilson Benesch fit a beautifully sculptural carbon fibre composite top to its reference line loudspeakers. The forms are inspired by natural, organic shapes, curves and free flowing lines found in nature.
The carbon fibre tops are extremely complex forms are created using a combination of hand sculpting in clay which are in turn measured using a laser and in turn loaded into advanced 3D digital computer aided design (CAD) software at Wilson Benesch. By importing data in this way, Wilson Benesch are able to use powerful software algorithms to further optimise the 3D form before manufacturing.
When a longitudinal sound wave strikes a flat surface, sound is reflected in a coherent manner. However, the reflective nature of a structure varies according to the shape of the surface. Uneven surfaces will diffract sound wave energy, rather than reflect it directly with little reduction in the energy of the sound wave which it perceived as colouration in the HIFI system. Therefore the complex ‘stealth like’ form is critical to the performance of the loudspeaker. By removing any flat, reflective surfaces and creating a highly complex structure, any reflective sound energy is scattered. This diminishes its energy and also avoids standing wave patterns within the listening space that are easily detected by the human ear as distortion or colouration.
DIRECT MIDRANGE DRIVE UNIT COUPLING
Wilson Benesch started development of its own drive unit diaphragms, including those made from a carbon fibre/epoxy matrix in 1995. Research was conducted using alternative hard dome materials. Without exception, Isotactic Polypropylene was favoured for its natural sound and the ability of this material to absorb energy and avoiding complex breakup modes in the diaphragm. This critical material characteristic allows the Wilson Benesch design team to achieve mechanically and acoustically what would otherwise be implemented in complex crossover designs with a series of inductors and capacitors. This reductive approach to crossover design maintains phase, linearity and the degree of control over manufacturing and design of both the drive unit specifications and the enclosure air volume allows Wilson Benesch to eliminate all crossover components in the midrange drive units of most Fibonacci Series models running the drive unit directly amplifier coupled.
BESPOKE
ENGINEERED FOR YOU

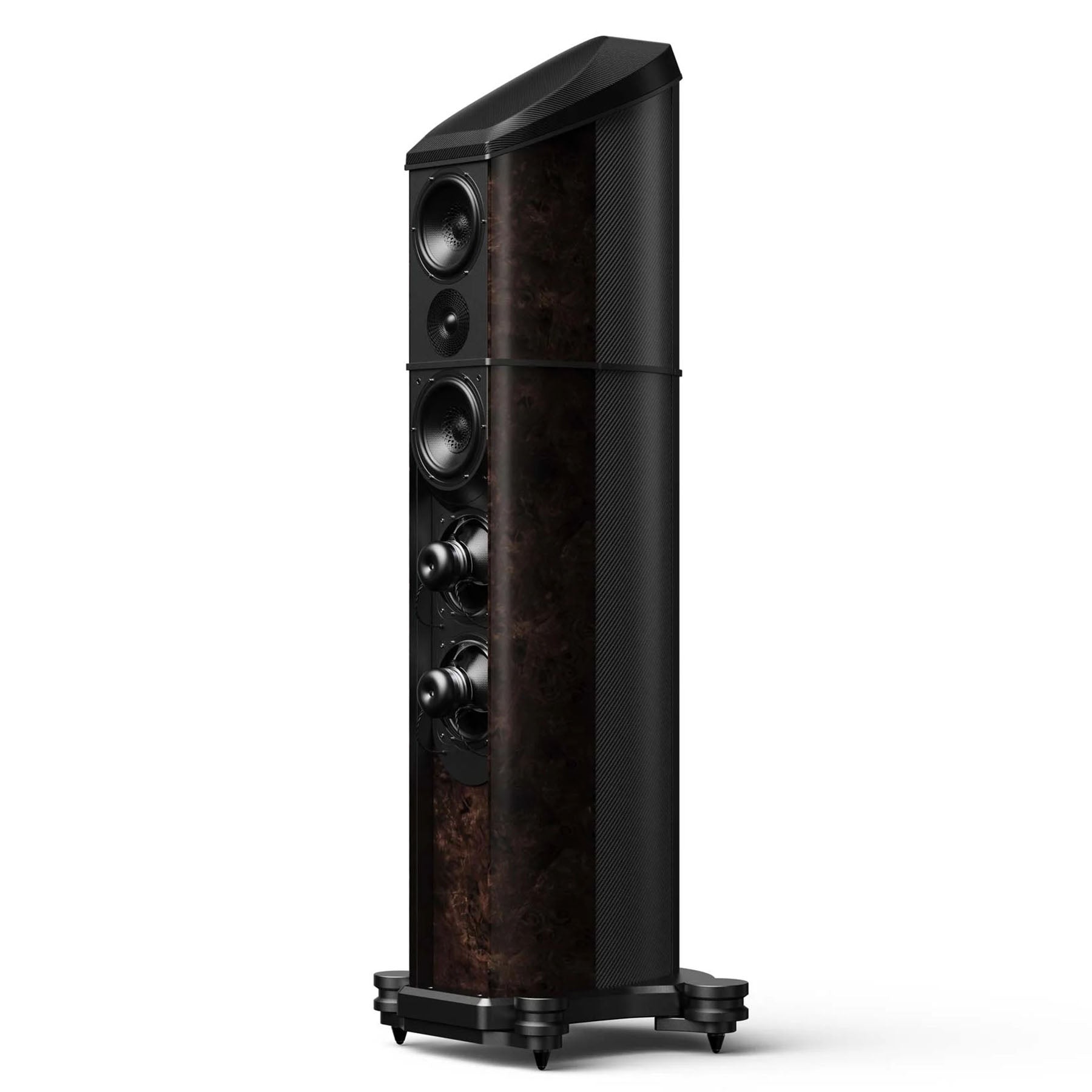

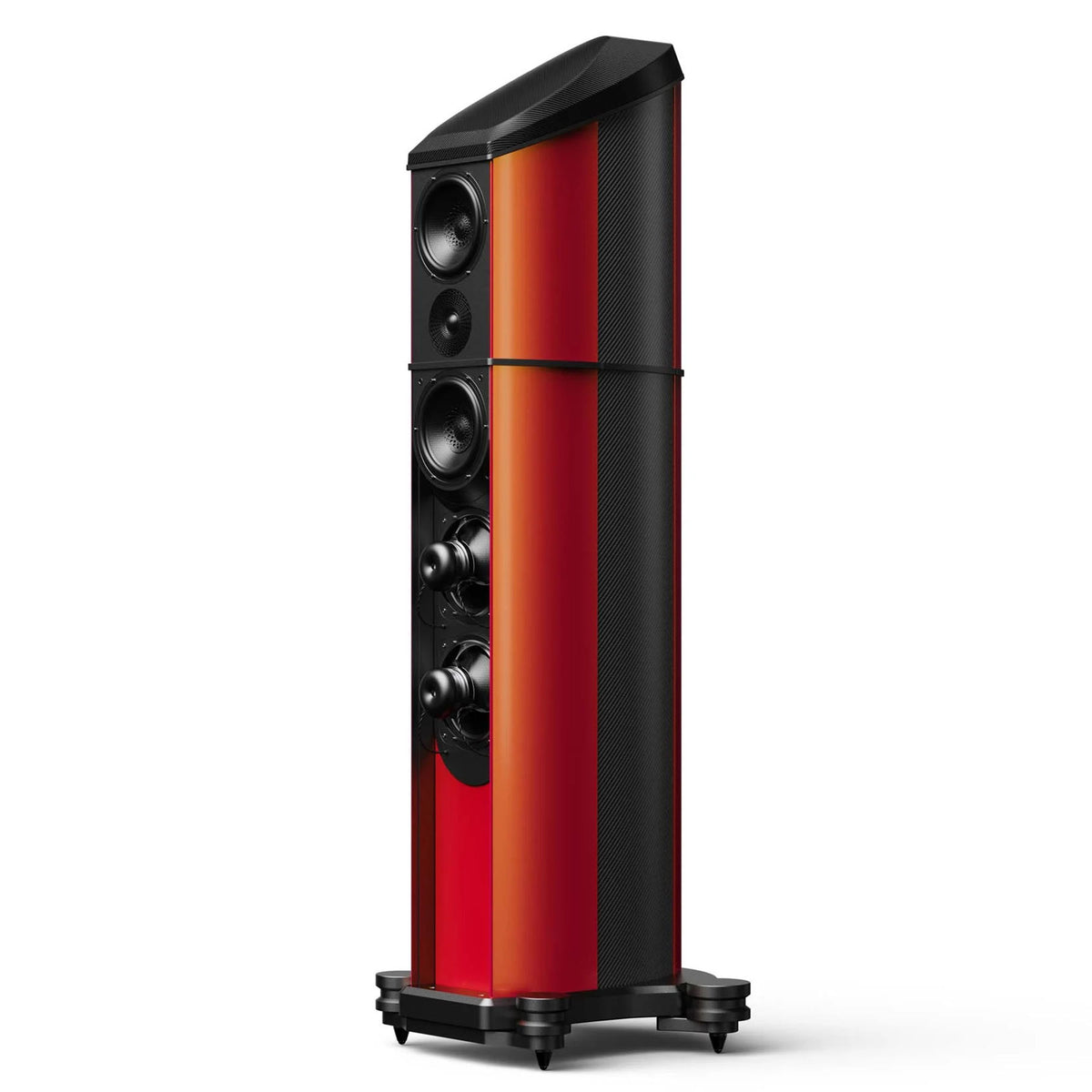

Every Wilson Benesch is hand built for you. In addition to our standard finish, we offer a range of Premium Natural Wood Veneers, Premium P1 Carbon Fibre and Premium Paint Finishes. Want to create something unique? Contact us to create something truly unique to you.
Videos
Awards
Reviews
Fidelity Musik and HiFi, Carsten Bambeck, 2022
How many days, weeks or months do you think it would take for a truly complete review of a speaker? For me, it strongly depends. But I can tell you with certainty how long it took for us to fall for Wilson Benesch’s luxurious Resolution 3Zero: 3 Minutes.
The Absolute Sound, Alan Taffel, 2019
Rounding out the Wilson Benesch’s virtues are a deathly quiet noise floor and low overall distortion. These traits, too, add to the speaker’s sense of musical suspense, since dynamic bursts seem to come out of nowhere. Yet there is a remarkably delicate filigree to quieter passages. Through the Resolution, overtones and decays hang in the air like drifting clouds….
In sum, the Wilson Benesch Resolution is a speaker that’s full of surprises. The use of carbon fibre is surprising. The melding of this new-world technology with old-world isobaric loading is surprising. The speaker’s slender appearance is surprising, as are the unique views it affords of carbon fibre and woofer butts. Most surprising of all is the Resolution’s chameleon-like ability to change its colours to reflect the music and the recording it’s playing. This is a speaker that never gets old, familiar, or boring. It’s a speaker you really can live with over the long run.
The Audio Beat, Roy Gregory, 2018
But, above all, it delivers a level of musical coherence and insight, a balance of the convincing and the communicative, that puts it at the forefront of current loudspeaker performance. More refined and even than most paper-coned systems, more natural and richer than most aluminium- or ceramic-coned speakers, far more expressive and engaging than the “high-tech, high-res” brigade, for all its obvious engineering, this is at heart an essentially simple and unfailingly musical device.
Schematics
Product Specifications
DRIVE TECHNOLOGY
Midrange
170mm(7") Wilson Benesch Tactic 3.0
Tweeter
25mm (1”) Wilson Benesch Fibonacci Hybrid Silk-Carbon Tweeter
Isobaric Drive System
2x 170mm (7”) Wilson Benesch Tactic in Clamshell Formation
CROSSOVER TECHNOLOGY
Midrange
First-Order, 5kHz Low Pass Filter
Tweeter
Second-Order, 5kHz High Pass Filter
Isobaric Drive System
First-Order 500Hz Low Pass Filter
ENCLOSURE TECHNOLOGY
Materials
A.C.T. 3Zero - Advanced Biocomposite Monocoque Technology, Poly-Alloy, Hybridised Construction
Midrange Enclosure
Reflex Port Tuned with Laminar Flow Guide
Tweeter
Labyrinth Sealed Tweeter Backplate
Isobaric Enclosure
Reflex Port Tuned Underside of Enclosure
MEASUREMENTS
Type
2.5-way
Impedance
6 Ohms Nominal / 4 Ohms Minimal
Sensitivity
89dB @ 1-Meter on axis, 2.83V Input
Frequency Response
38Hz - 30kHz +/- 2dB
DIMENSIONS & TERMINATIONS
Height
1425mm (56.1”)
Width
191mm (7.5”) Baffle // 526mm (20.7”) Widest Point of the Foot
Depth
480 mm (18.9”)
Weight
75kg (165.35lbs) Stand is integrated with the loudspeaker enclosure
Termination

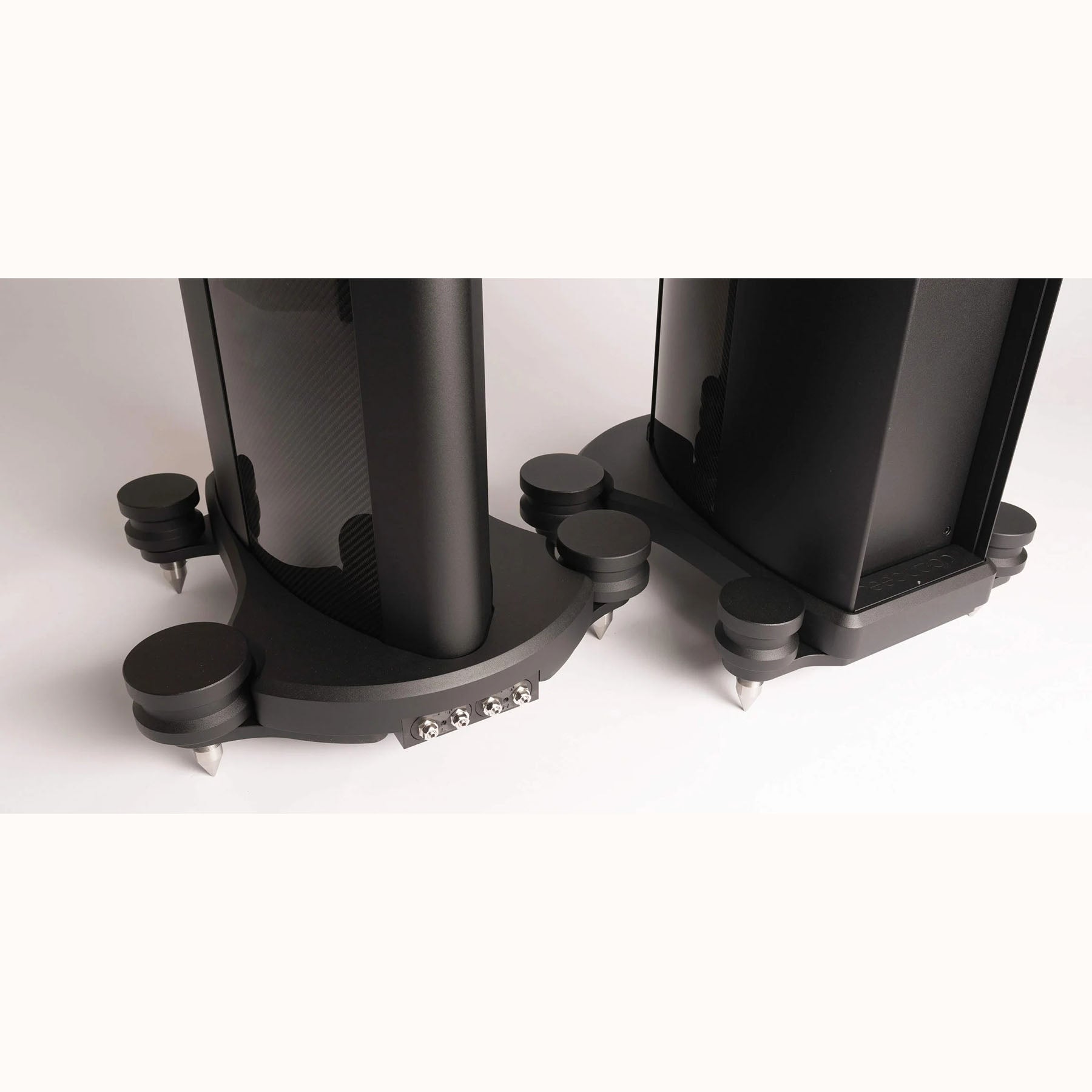

Bi-wirable terminal located on the loudspeaker foot at ground level
