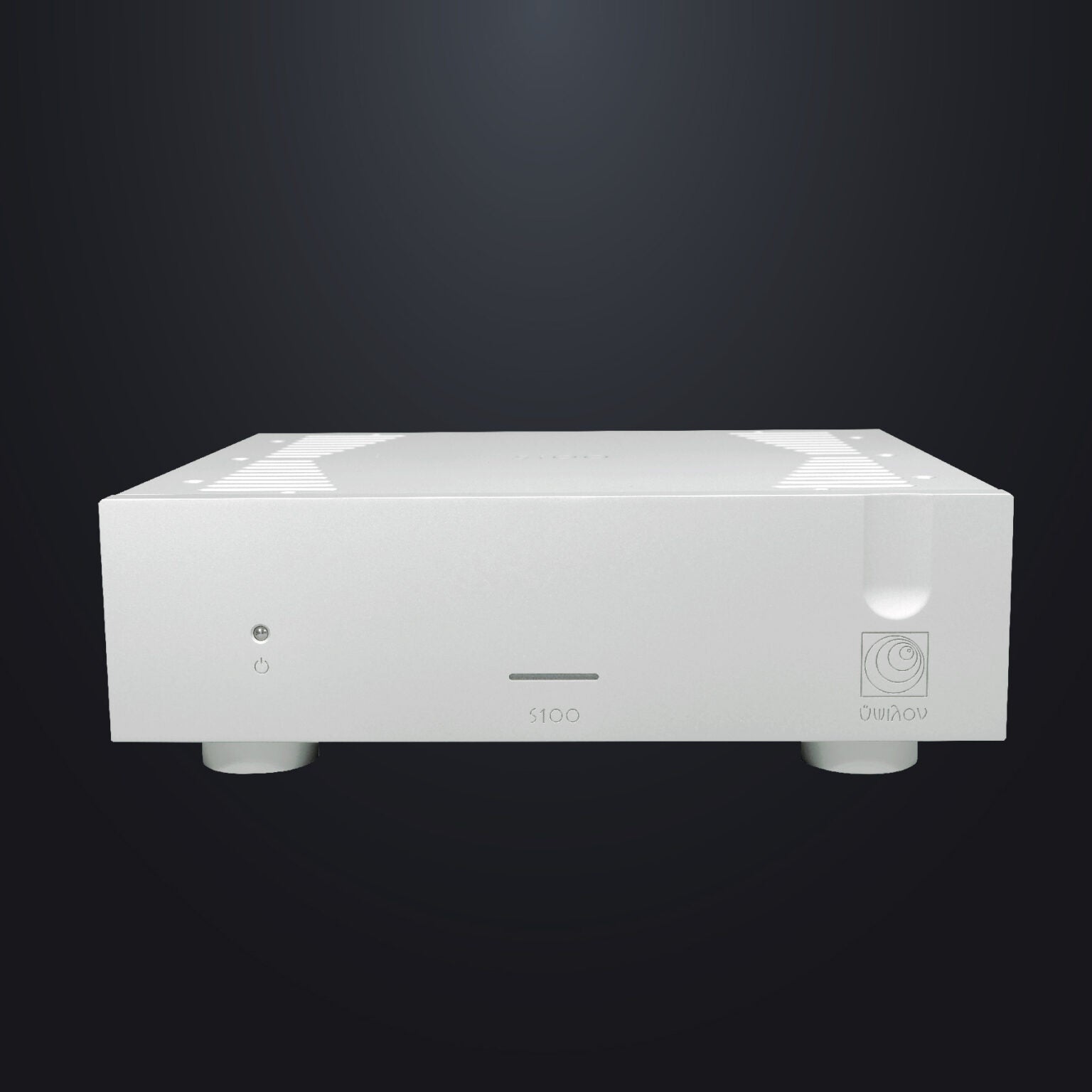

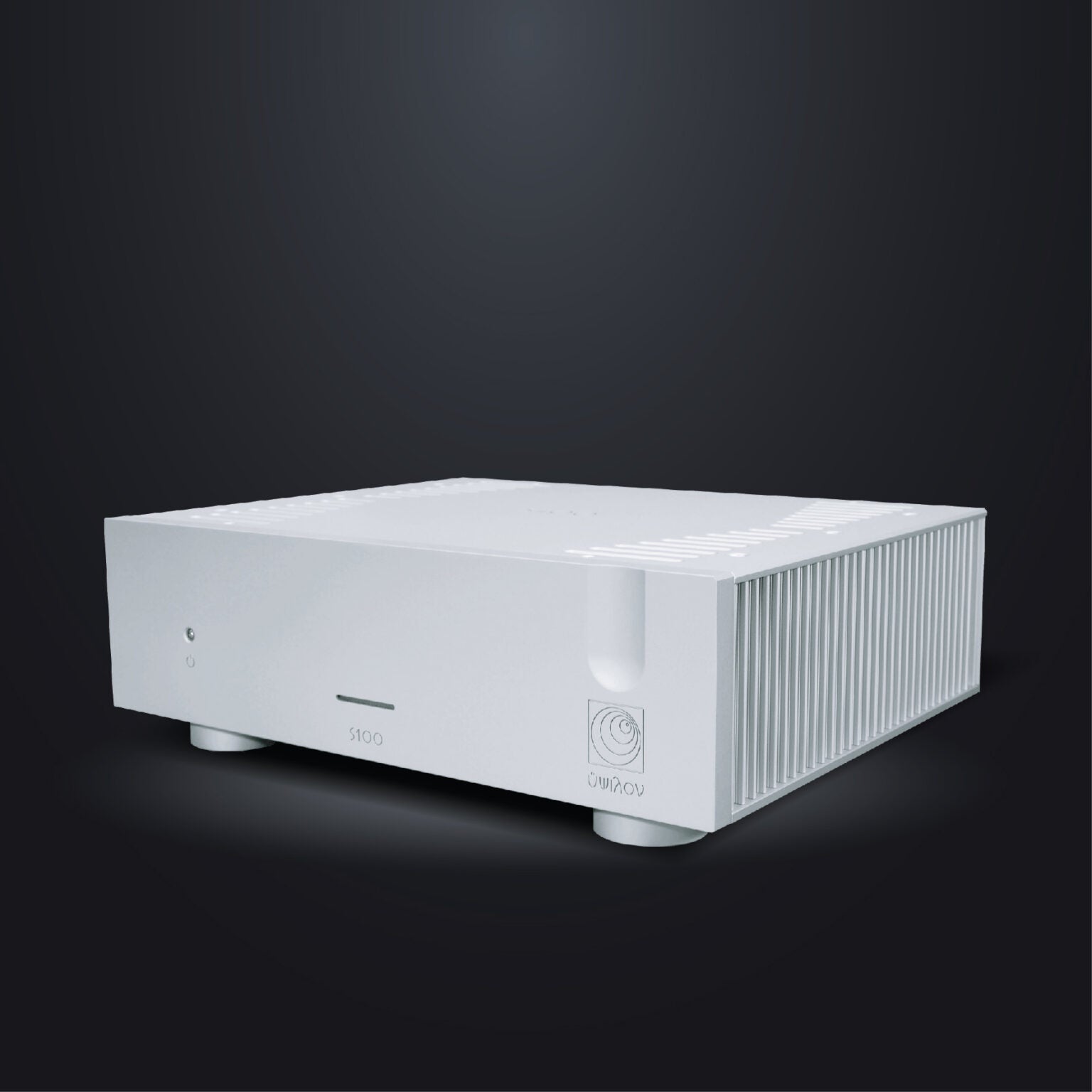

Ypsilon S100 Music Streamer
The S100 streamer was engineered with a singular purpose: to be transparent to the listener’s music. For this to be achieved, a streaming solution had to be developed from the ground up.

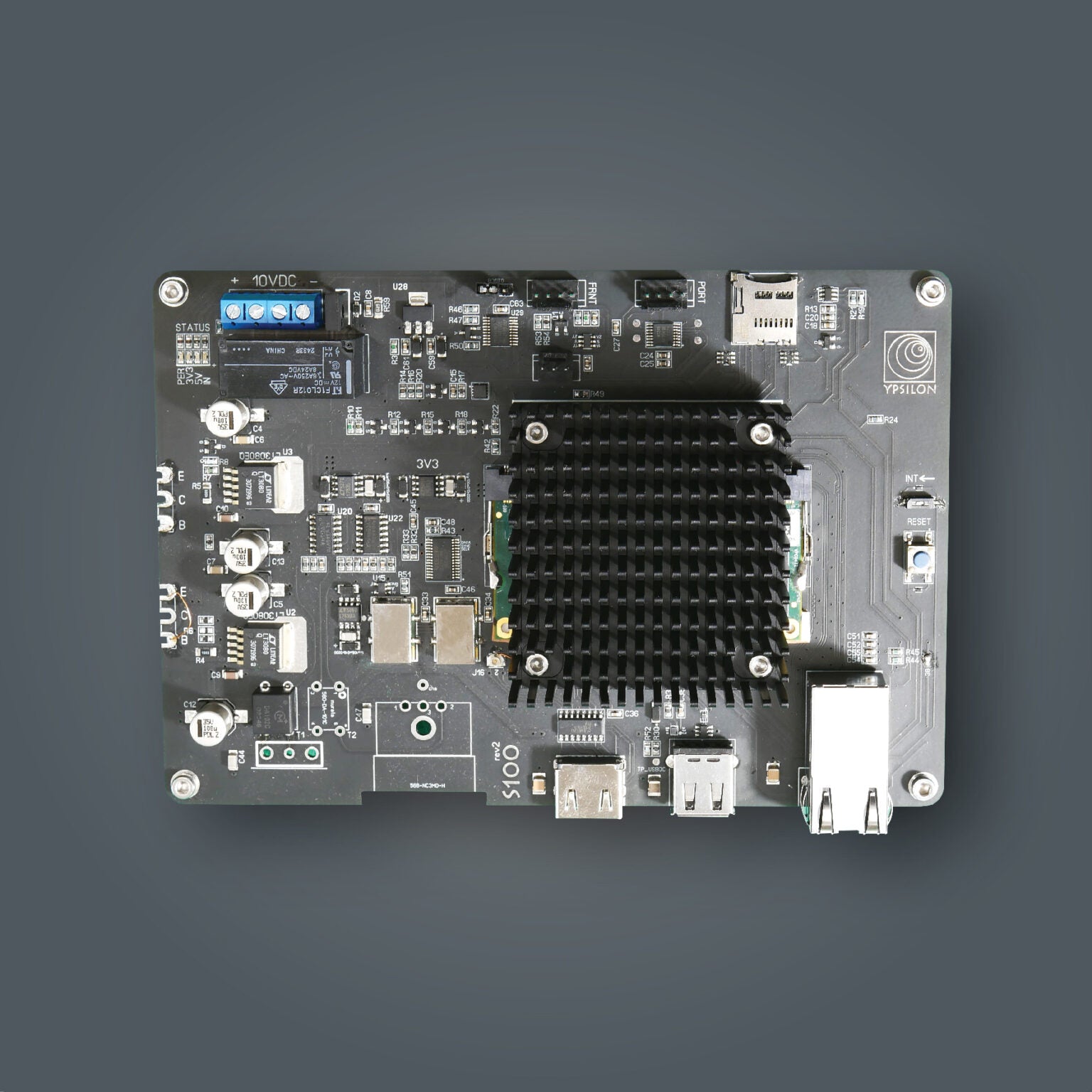

The S100 uses a unique hardware and software architecture that acts as memory for the music track. This memory is loaded with the audio data and then clocked by best-in-class, high accuracy FEMTO clocks for all families of frequencies, before being directly connected to the audio outputs. In that way, this direct memory architecture decouples the computing system from the audio playback and allows the generation of the digital audio signals to be directly driven by the clocks, not just timed. Thus, surpassing any off-the-shelf solution in timing accuracy, jitter and noise.
All these are brought up to life by exclusive to the S100 operating system and driver software, that ensures the smooth operation of the system as a whole.

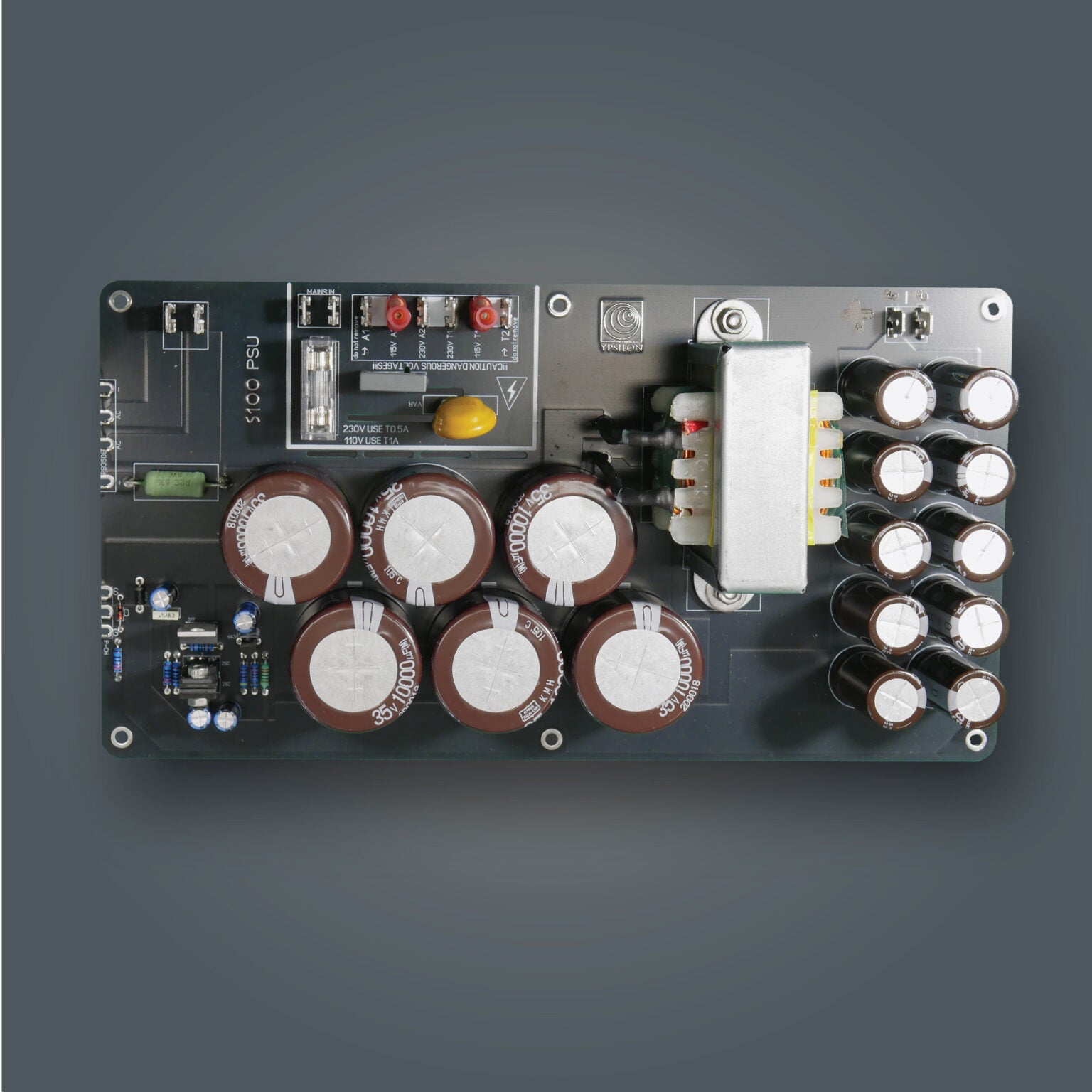

Everything in this custom hardware design is powered by discrete, all linear regulators driven by in-house wound transformer and filter.

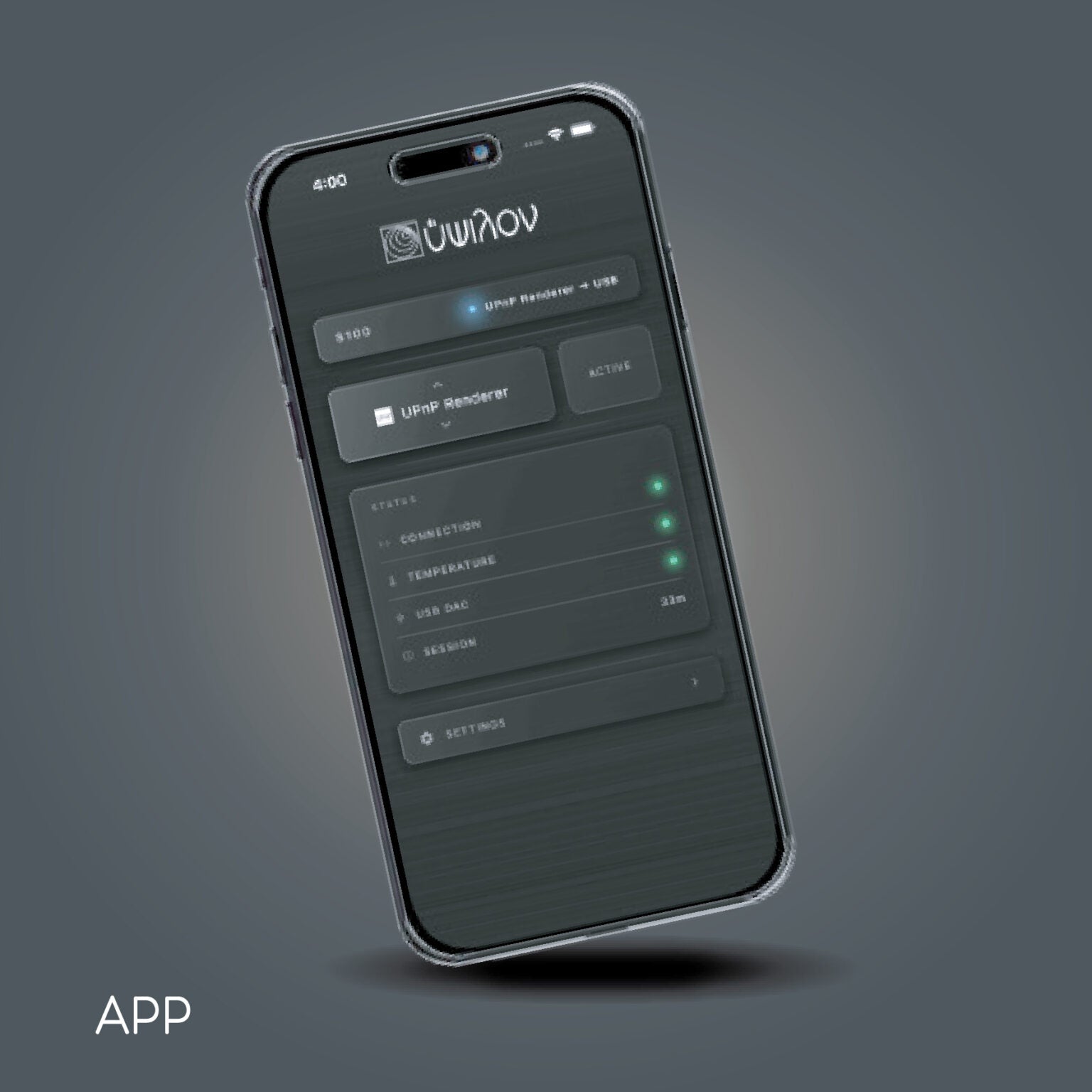

For the operation of the S100, a mobile application has been developed that allows easy playback software selection and control of the functions of the device.
Features
- Direct memory architecture, setting the benchmark in time accurate, noise and jitter free playback
- In-house engineered operating system, bringing the hardware into life
- Custom-built computing hardware, all powered by discrete, linear regulators
- Exclusive to S100 power supply with in-house wound transformer and choke filter
- Companion remote control application for iOS and Android platforms, enabling the listener to choose their favorite playback software
Product Specifications

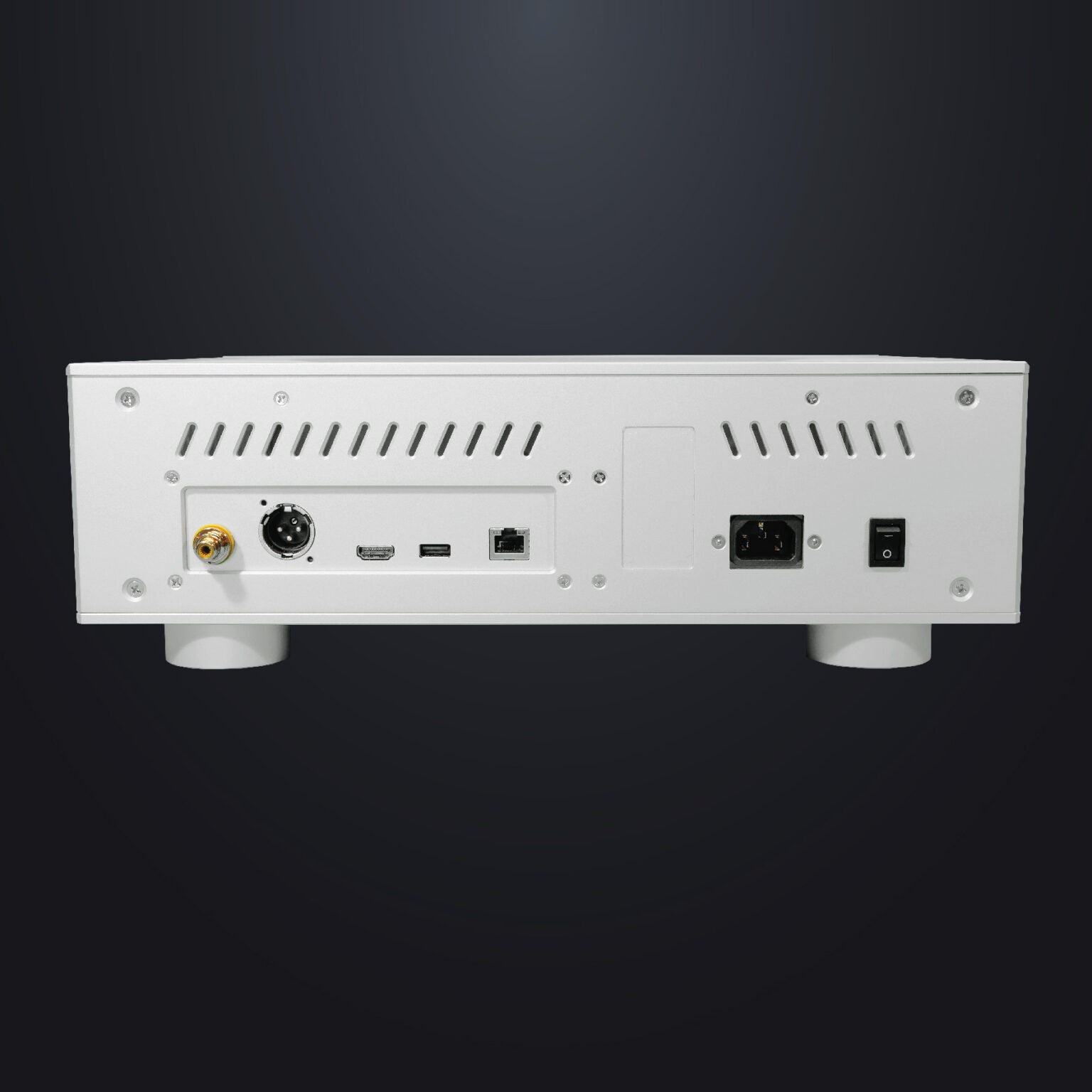

I2S (HDMI)
PCM up to 768k/32bit
COAX/AES
PCM up to 192k/32bit
USB
PCM up to 768k/32bit, DSD up to DSD512 native
NETWORK
Gigabit Ethernet
POWER CONSUMPTION
Maximum 40 W
DIMENSIONS
400 × 135 × 330 mm (W × H × D)
WEIGHT
15 Kgr
